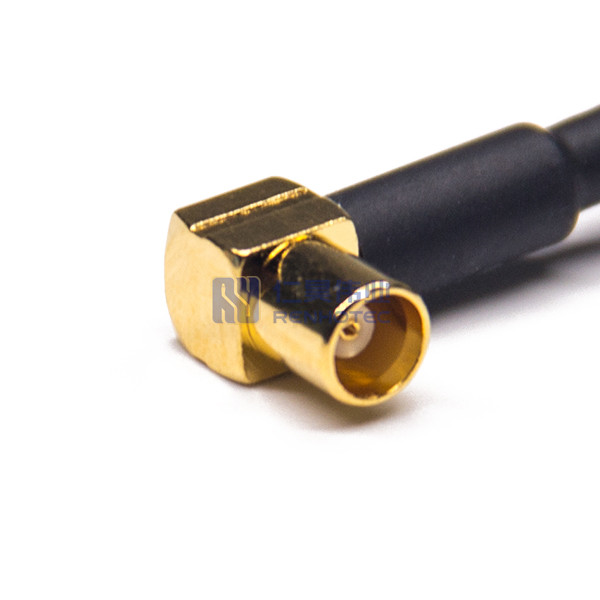

MCX Gold Plating Angled Female Through Hole for PCB Mount

Part No.:RHT-617-0157

Tags：MCX Connector,Angled,50Ohm,Through Hole,PCB Mount,Cooper,Gold Plating

Features:
  • 12 Months’ Quality Insurance;
  • FREE sample available for quality test;
  • 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
  • Snap-on Interface ideal for quick Installation and discount;
  • High cost-effective with excellent boardband performance and low reflections.
Ask a quote

Technical Characteristics

Frequency Range 0~6 GHz
Impendance 50 ohm
VSWR Straight type ≦ 1.3max / R/A type ≦ 1.5max
Dielectric Withstanding Voltage 1000 V rms
Working Voltage  335 V rms
Center Contact Resistance ≦ 5.0 mΩ  (Milliohms max.)
Outer Contact Resistance 1.0 mΩ  (Milliohms max.)
Insultation Resistance ≧1000  mΩ
Coupling  Snap-on/Snap-off
Contact Retention 4 lbs min.
Mating Durability ≧500 cycles (For Beryllium Copper Contact)
Environmental Characteristics Teflon -65°C ~ +155°C
Vibration MIL-STD-202 Meth.204
Corrosion Resistance  MIL-STD-202 Meth. 101

Material & Finish

Description Material Finish
Body  Brass Nickel
Center Contact Pin  Brass Gold Plated
Insulator Teflon White
