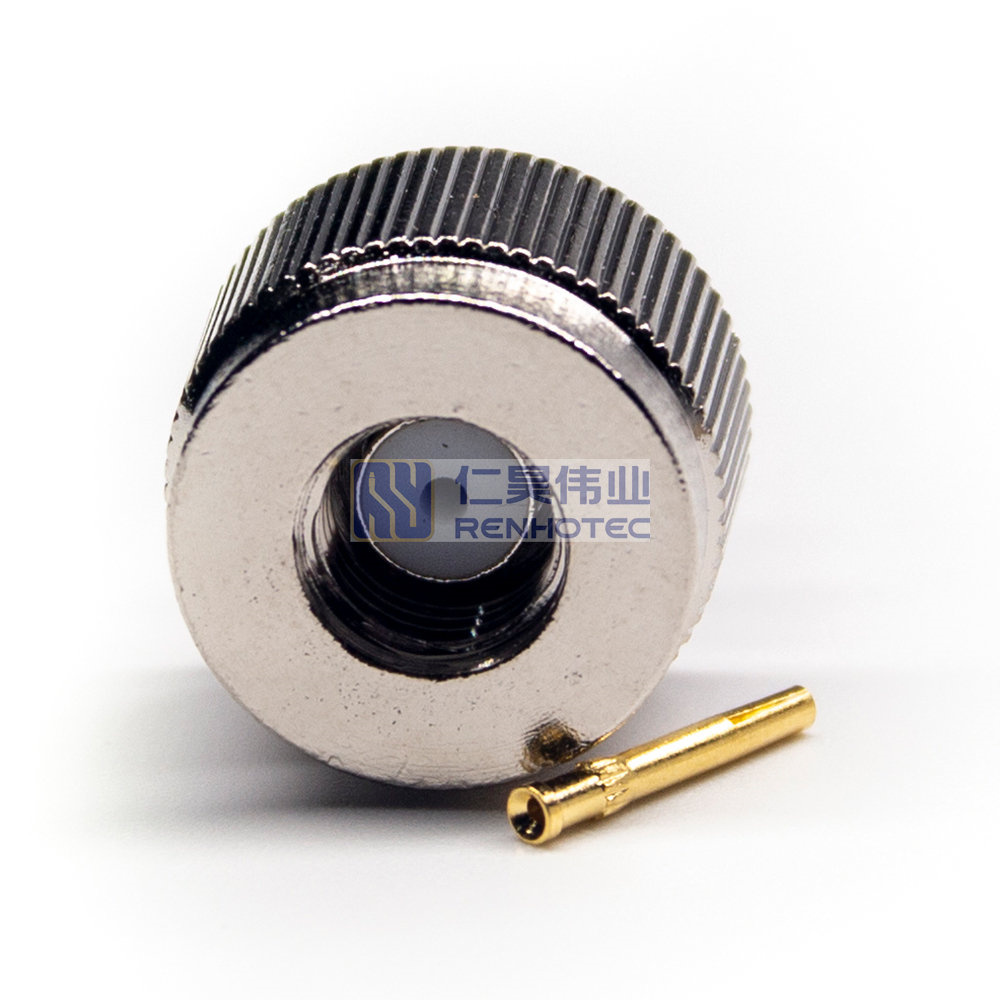

N-Type Connector RG213 Male Crimp Type for Cable

Part No.:RHT-614-0120

Tags：Cable Connector, plug/male, Angled/90°,Crimp Type ,50Ω,RG400

Features:
  • 12 Months’ Quality Insurance;
  • FREE sample available for quality test;
  • Great performance with DC to 11GHz Frequency and 50 ohm impedance;
  • Threaded coupling mechanism ensure durability and stability for vibration application;
  • Medium size used in military, industry or consumption electronic area, etc;
Ask a quote

Technical Characteristics

Impedance 50 ohm
Frequency Range: 0~11 Ghz
VSWR Straight type ≦ 1.3max / R/A type ≦ 1.5max
Dielectric Withstanding Voltage 2500 V rms
Working Voltage  1000 V rms
Center Contact Resistance ≦ 1.0 mΩ  (Milliohms max.)
Outer Contact Resistance ≦ 0.2 mΩ  (Milliohms max.)
Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)
Coupling 5/8-24 thread
Contact Retention 6 lbs min.
Coupling nut torque 30 in-lbs. min.
Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Temprature Range -55°C ~ +155°C ( PE Cable-40°C ~ +85°C )
Vibration MIL-STD-202 Meth.204
Corrosion resistance MIL-STD-202 Meth. 101

VSWR: Voltage Standing Wave Ratio

Material & Finish

Description Material Finish
Body Brass Nickel
Contact Pin Brass Gold
Insulator Delrin None
