Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Plug Male Right Angle FHG 1B 306 CLAD

FHG.1B.306.CLAD

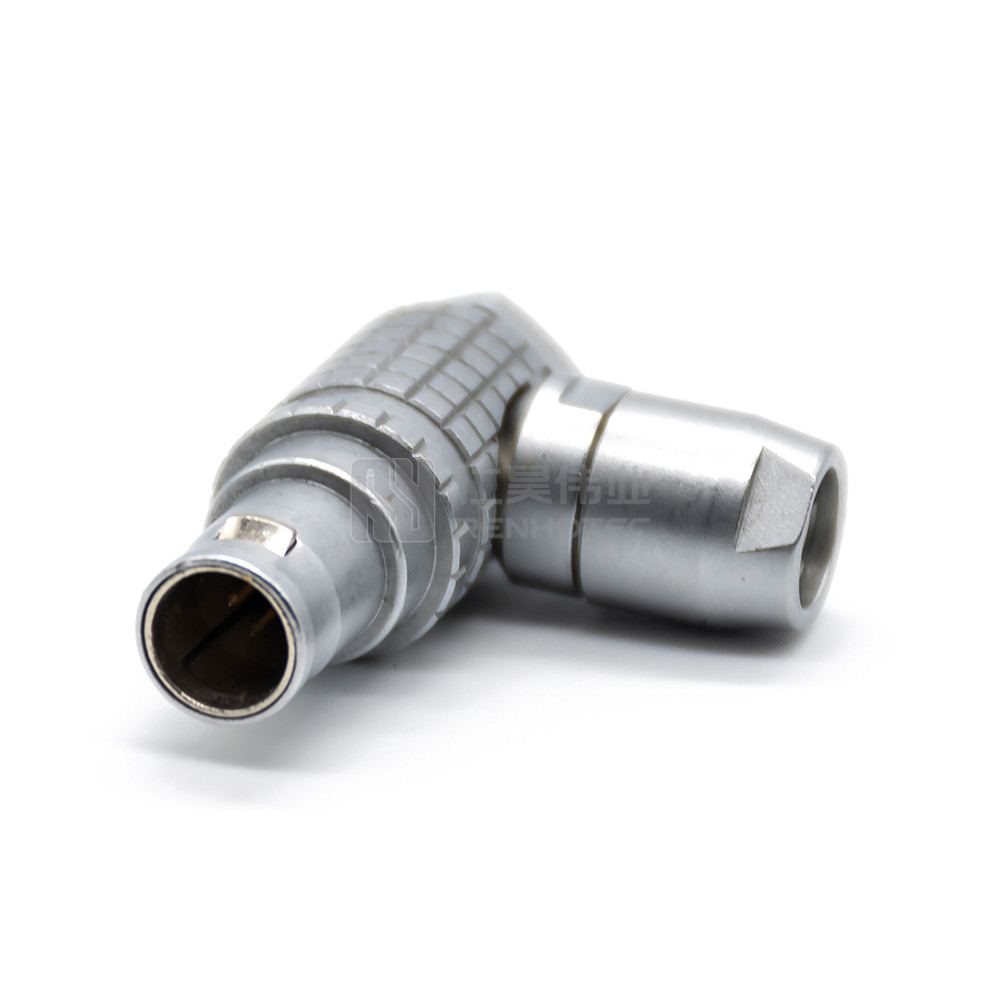

B Series Push Pull Self-locking Connector Plug Male Right Angle FHG 1B 306 CLAD

This B Series Push Pull Self-locking Connector Plug is a male right angle FHG 1B 306 CLAD. It offers secure connection and is ideal for various electronic applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Contact TypeMale Pin
    Number of Positions6
    Fastening TypeSnap on
    Mounting TypeCable Type

    Shell

    Shell SizeM12

    Mechanical

    Wire Gauge or Range30-22AWG

    Material

    Shell MaterialCopper Alloy
    Contact MaterialCopper Alloy
    Contact FinishGold
    Insulating MaterialPPS

    Electrical

    ShieldingShielded
    Rated Current7A

    Environmental

    Operating Temperature-55°C ~ + 150°C
    RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
