Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Plug Male Straight FAG 0B 304 CLA Back Mount

FAG.0B.304.CLA

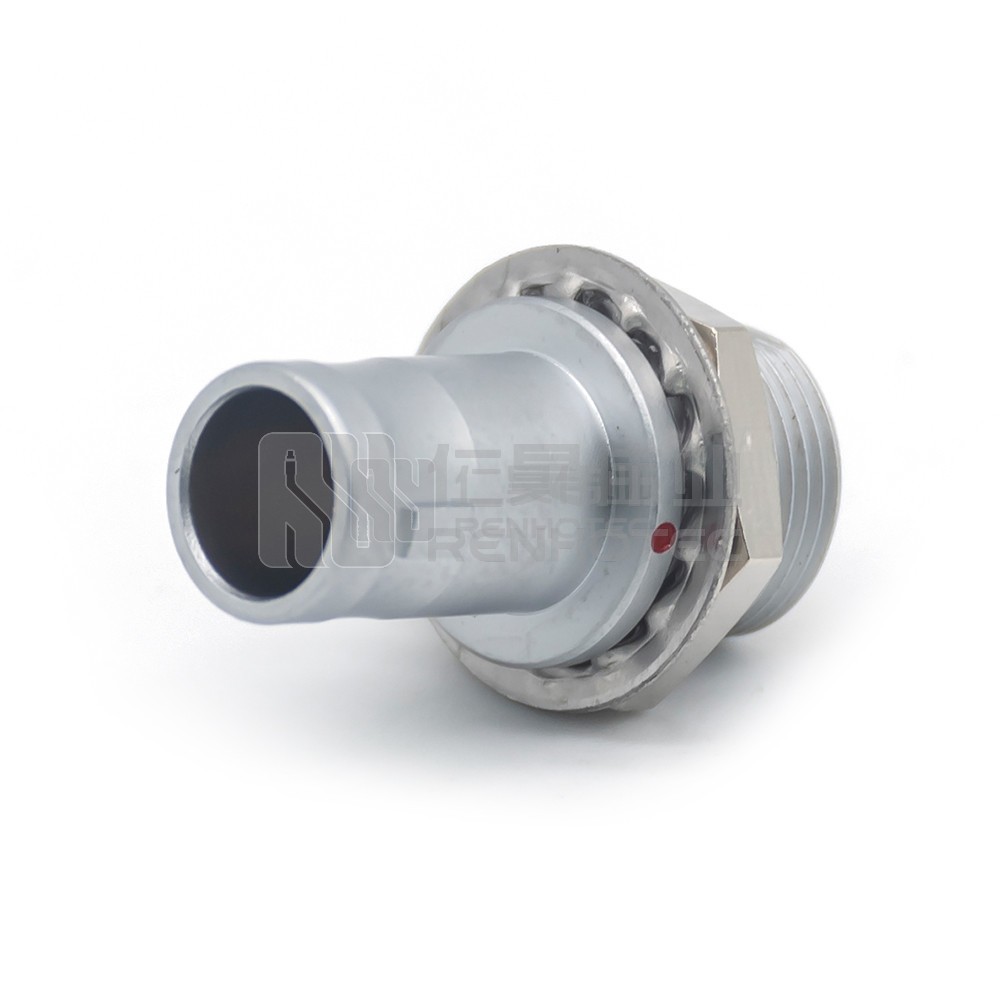

B Series Push Pull Self-locking Connector Plug Male Straight FAG 0B 304 CLA Back Mount

High-quality B Series Push Pull Self-locking Connector Plug Male Straight from FAG. Featuring a 0B 304 CLA Back Mount for secure connections in various applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions4
    Fastening TypeSnap on
    Mounting TypePanel Mount
    Mounting FeatureBulkhead - Rear Fastened

    Shell

    Shell SizeM9

    Mechanical

    Wire Gauge or Range30-22AWG

    Material

    Shell MaterialCopper Alloy
    Contact MaterialCopper Alloy
    Contact FinishGold
    Insulating MaterialPPS

    Electrical

    ShieldingShielded
    Rated Current7A

    Environmental

    Operating Temperature-55°C ~ + 150°C
    RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
