Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Plug Male Straight FGG 2B 319 CLA

FGG.2B.319.CLA

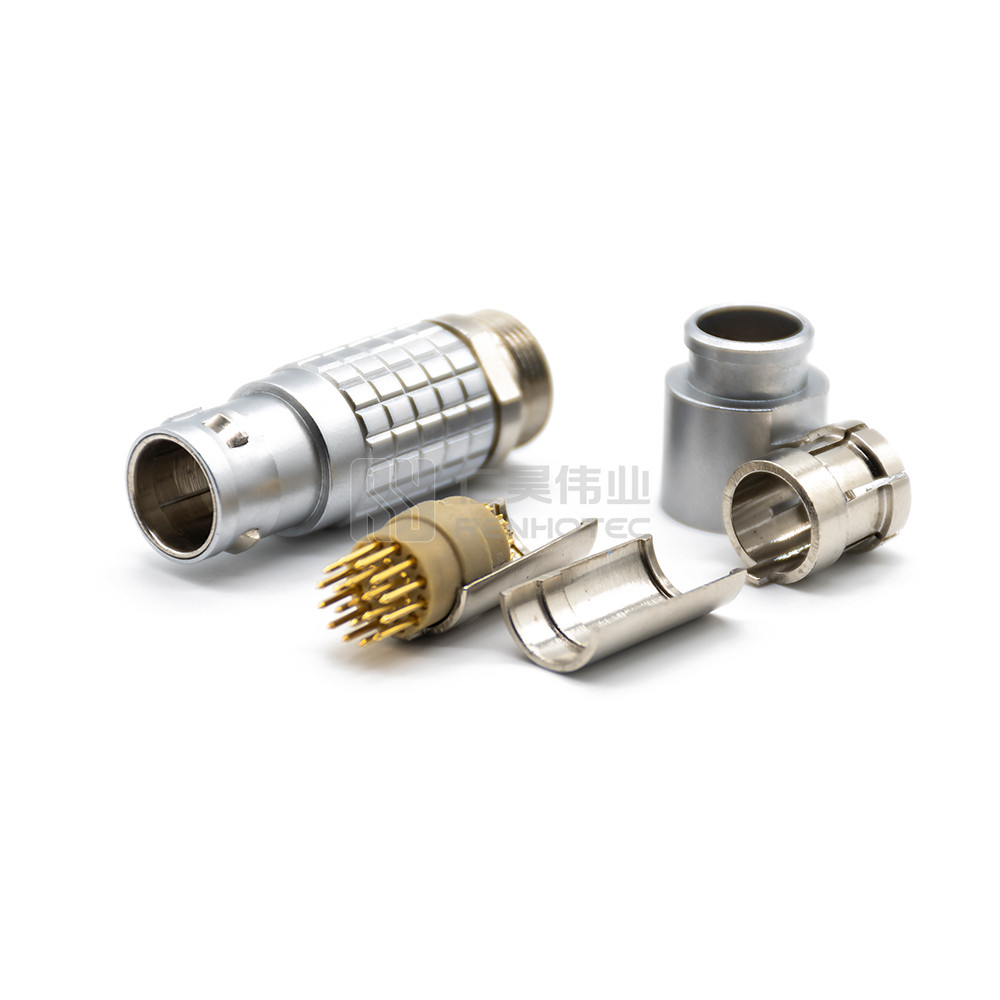

B Series Push Pull Self-locking Connector Plug Male Straight FGG 2B 319 CLA

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality male straight plug connector for reliable and secure connections with self-locking mechanism. Designed for B Series Push Pull applications. Model FGG 2B 319 CLA.

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions19

    Mechanical

    Fastening TypeSnap on
    Mounting TypeCable Type
    Wire Gauge or Range30-22AWG

    Material

    Shell MaterialCopper Alloy
    Contact MaterialCopper Alloy
    Contact FinishGold
    Insulating MaterialPPS

    Electrical

    ShieldingShielded
    Rated Current5A

    Environmental

    Operating Temperature-55°C ~ + 150°C
    RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
