Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Pulg Female Straight PHG 2B 307 CLLD62

PHG.2B.307.CLLD62

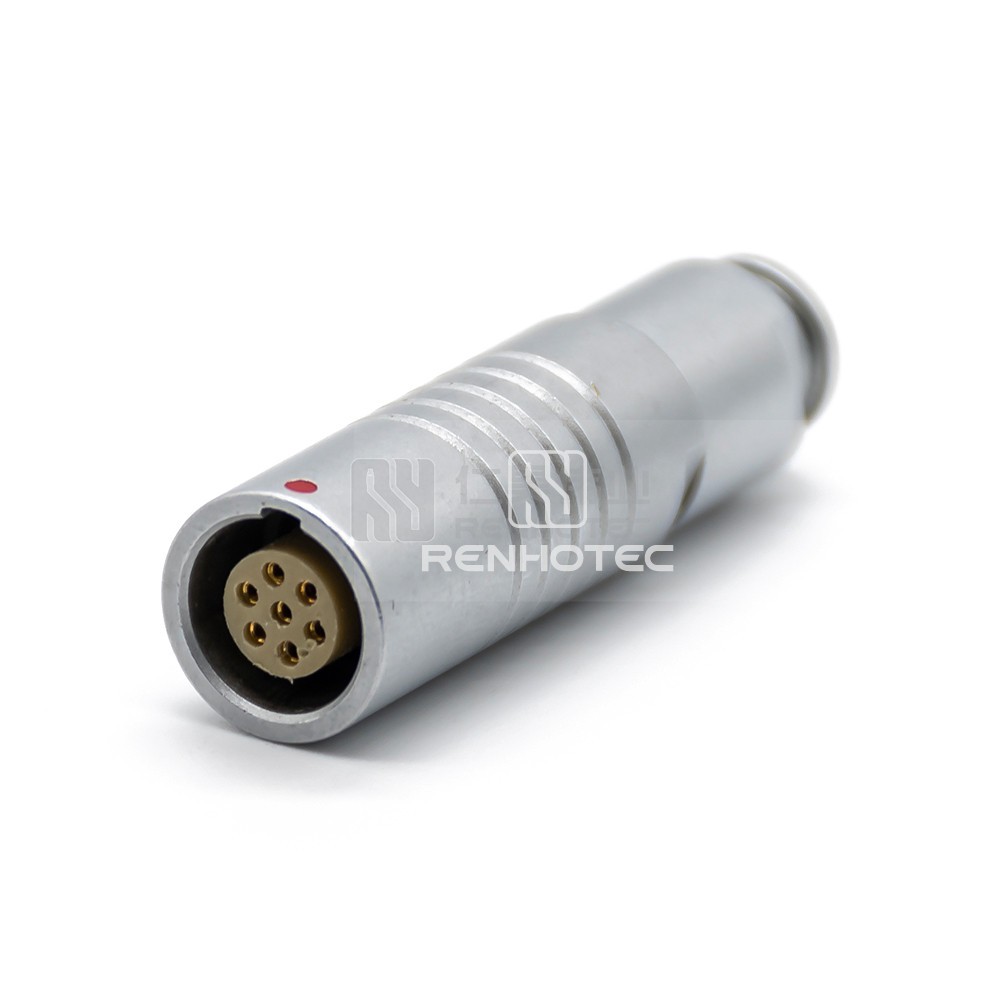

B Series Push Pull Self-locking Connector Pulg Female Straight PHG 2B 307 CLLD62

High-quality B series push-pull self-locking connector plug female straight PHG 2B 307 CLLD62. Reliable and durable design for secure connections.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypeSocket
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions7
    Fastening TypeSnap on
    Mounting TypeCable Type

    Mechanical

    Wire Gauge or Range28-20AWG

    Material

    Shell MaterialCopper Alloy
    Contact MaterialCopper Alloy
    Contact FinishGold
    Insulating MaterialPPS

    Electrical

    ShieldingShielded
    Rated Current11A

    Environmental

    Operating Temperature-55°C ~ + 150°C
    RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
