Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Socket Female Right Angle ECG 2B 312 CLV Back Mount

ECG.2B.312.CLV

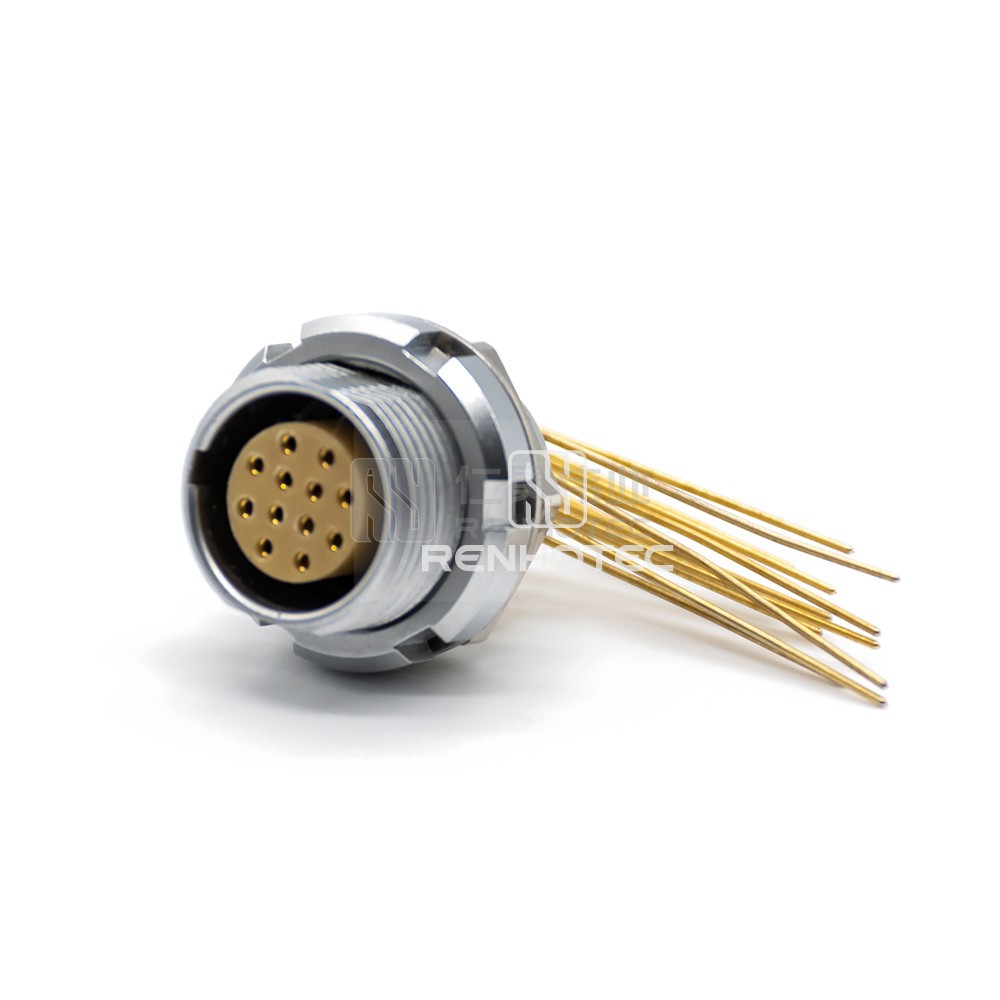

B Series Push Pull Self-locking Connector Socket Female Right Angle ECG 2B 312 CLV Back Mount

This B Series Push Pull connector socket features a self-locking mechanism and a female right angle design. Ideal for ECG applications, it is designed for back mounting.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypeSocket
    OrientationRight Angle
    Contact TypeFemale Pin
    Number of Positions12
    Fastening TypeSnap on
    Mounting TypePanel Mount
    Mounting FeatureBulkhead - Front Fastened

    Mechanical

    Wire Gauge or Range30-22AWG

    Material

    Shell MaterialCopper Alloy
    Contact MaterialCopper Alloy
    Contact FinishGold
    Insulating MaterialPPS

    Electrical

    ShieldingShielded
    Rated Current7A

    Environmental

    Operating Temperature-55°C ~ + 150°C
    RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
