ECG.3B.315.CLL

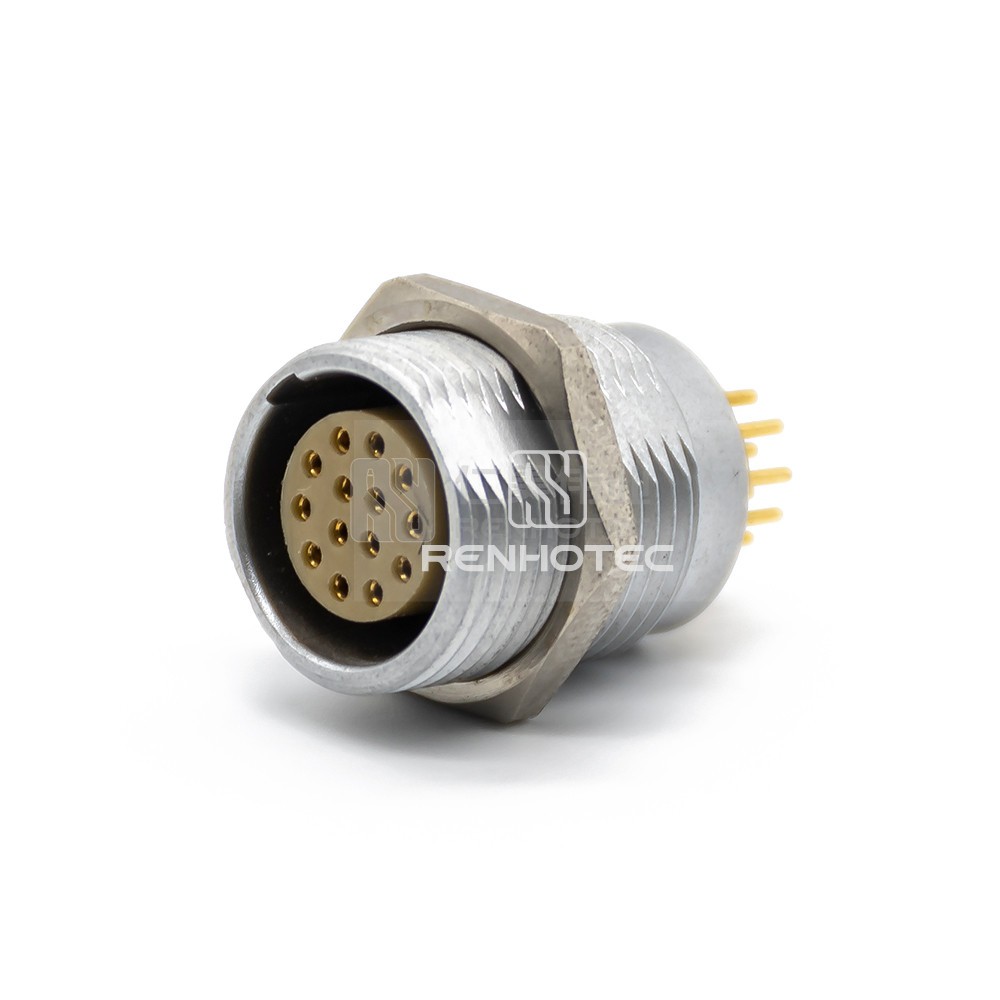

B Series Push Pull Self-locking Connector Socket Female Straight ECG 3B 314 CLL

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Buy the B Series Push Pull Self-locking Connector Socket Female Straight ECG 3B 314 CLL. This high-quality connector socket is ideal for various applications requiring a self-locking mechanism. Order now and ensure secure and reliable connections.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeSocket
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions14

    Shell

    Shell SizeM18

    Mechanical

    Fastening TypeSnap on
    Mounting TypePanel Mount
    Wire Gauge or Range30-22AWG
    Mounting FeatureBulkhead - Front Fastened

    Material

    Shell MaterialCopper Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel
    Insulating MaterialPPS

    Electrical

    ShieldingShielded
    Rated Current9A

    Environmental

    Operating Temperature-55°C ~ + 150°C
    RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
