Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Socket Female Straight EGG 0B 304 CLL Back Mount
product image

EGG.0B.304.CLL

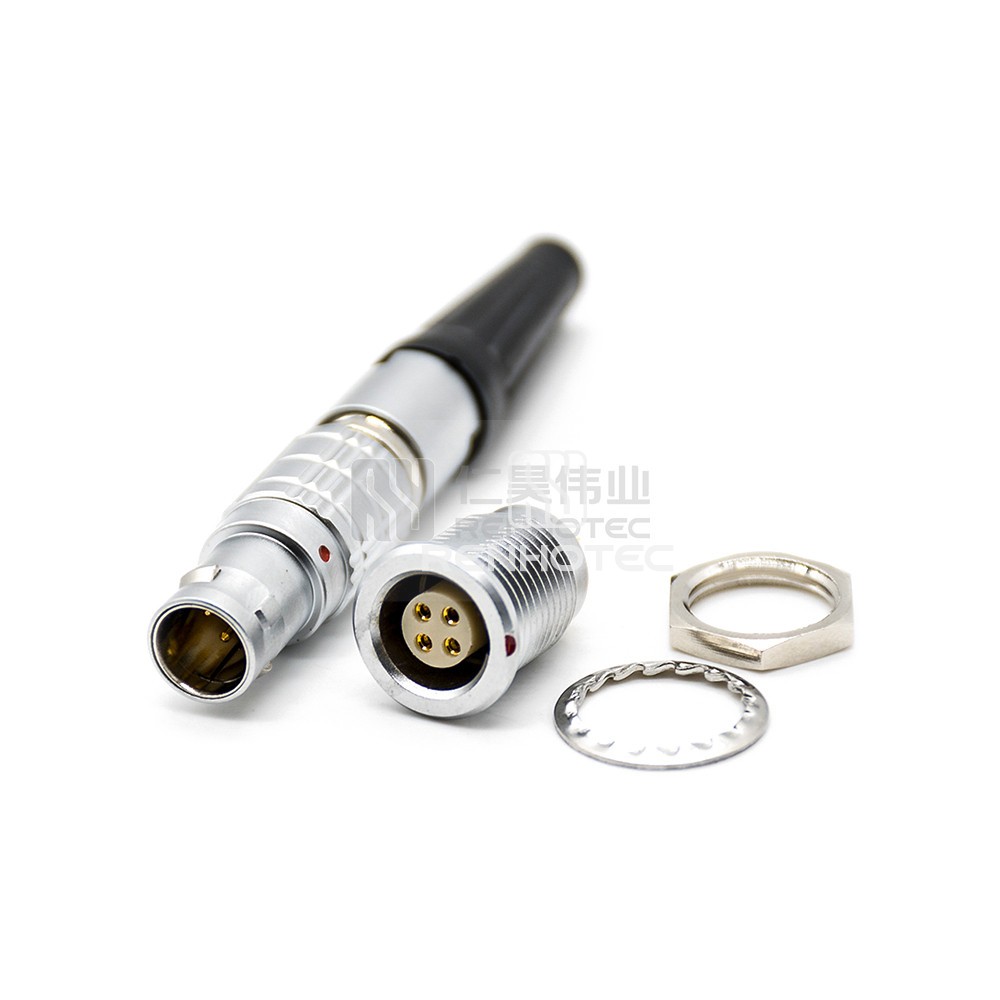

B Series Push Pull Self-locking Connector Socket Female Straight EGG 0B 304 CLL Back Mount
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Browse our B Series Push Pull Self-locking Connector Socket Female Straight EGG 0B 304 CLL Back Mount for secure and reliable electrical connections. Perfect for various applications requiring a back mount configuration.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeSocket
OrientationStraight
Contact TypeFemale Pin
Number of Positions4
Material
Shell MaterialCopper Alloy
Contact MaterialCopper Alloy
Contact FinishGold
Insulating MaterialPPS
Mechanical
Fastening TypeSnap on
Mounting TypePanel Mount
Wire Gauge or Range30-22AWG
Mounting FeatureBulkhead - Rear Fastened
Environmental
Operating Temperature-55°C ~ + 150°C
Shell
Shell SizeM9
Electrical
ShieldingShielded
Rated Current7A

Catelog

RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
