EGG.2B.305.CLL

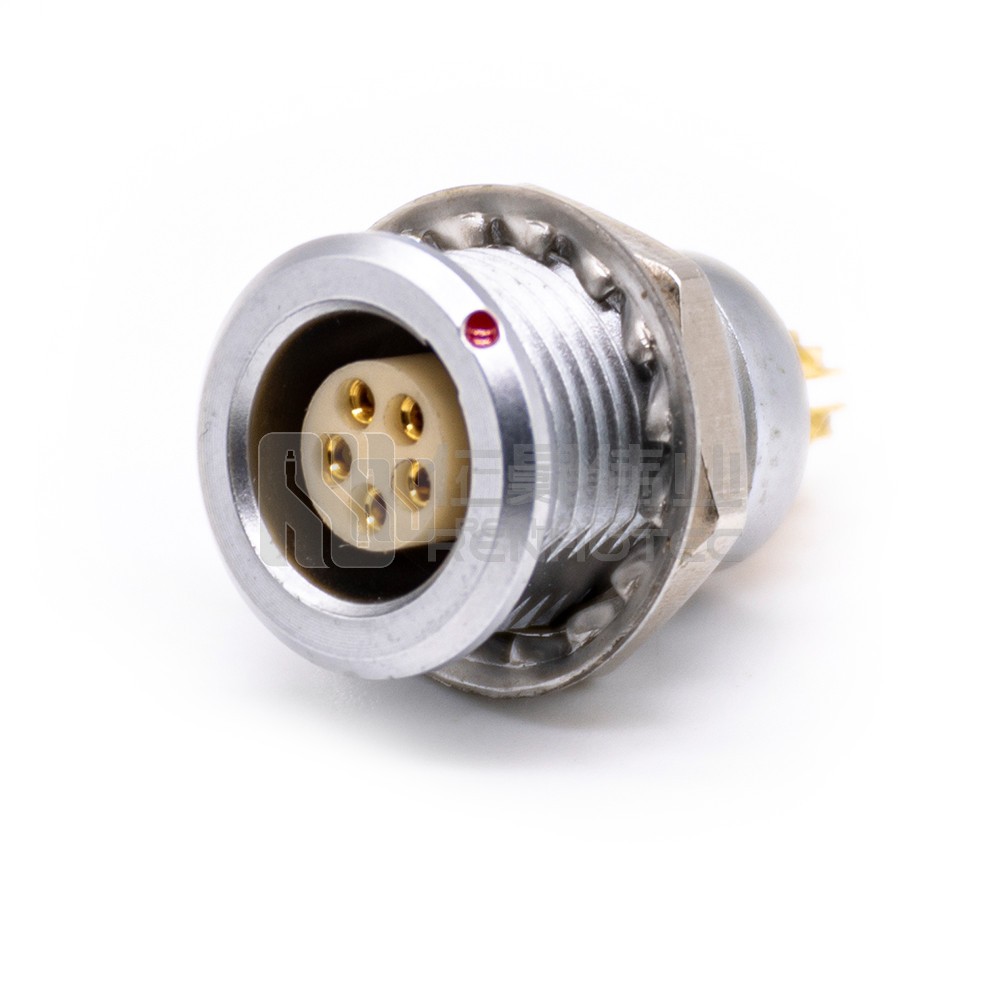

B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 305 CLL Back Mount

Find the perfect B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 305 CLL Back Mount for your application. This socket features a secure self-locking mechanism and is designed for back mounting.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypeSocket
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions5
    Fastening TypeSnap on
    Mounting TypePanel Mount
    Mounting FeatureBulkhead - Rear Fastened

    Mechanical

    Wire Gauge or Range28-20AWG

    Material

    Shell MaterialCopper Alloy
    Contact MaterialCopper Alloy
    Contact FinishGold
    Insulating MaterialPPS

    Electrical

    ShieldingShielded
    Rated Current14A

    Environmental

    Operating Temperature-55°C ~ + 150°C
