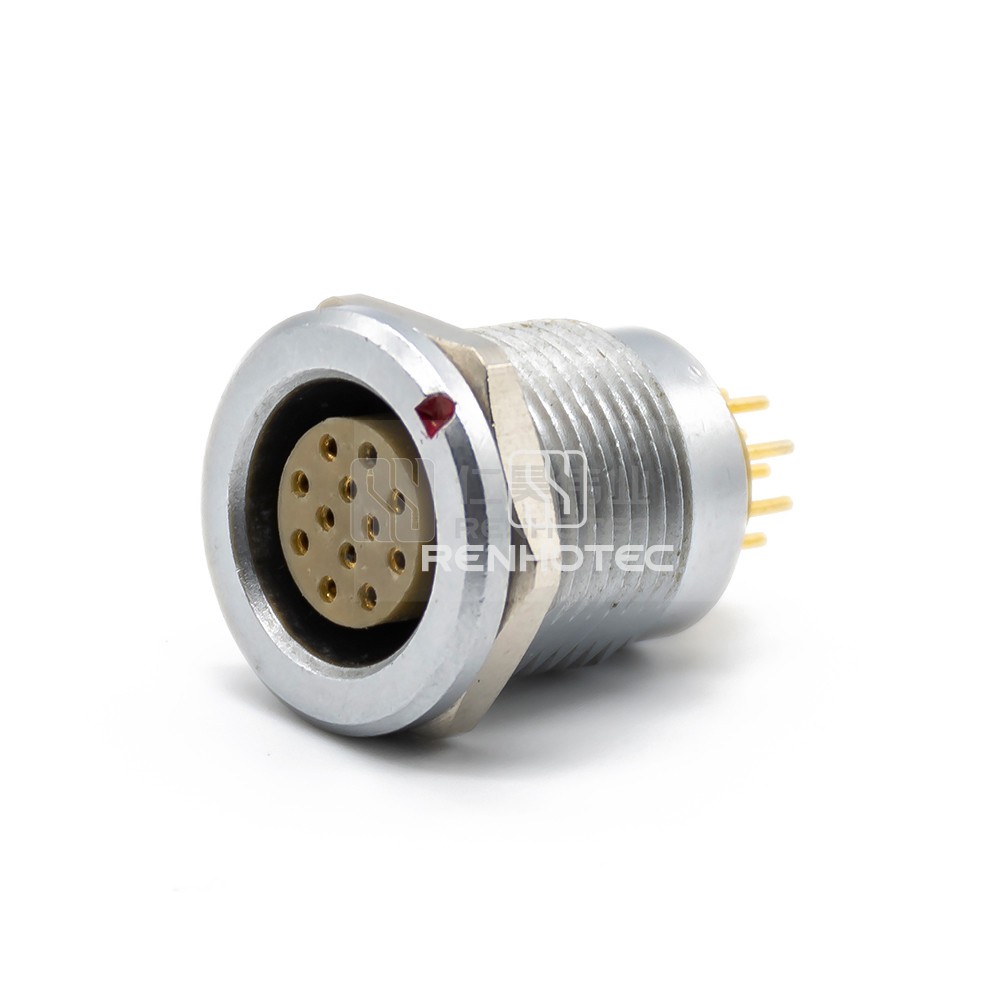

Get a reliable and secure connection with this B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 312 CLL Back Mount. Perfect for back mount installations, this connector ensures a strong and durable connection for your application.
General
Connector Type | Socket |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 12 |
Mechanical
Fastening Type | Snap on |
Mounting Type | Panel Mount |
Wire Gauge or Range | 30-22AWG |
Mounting Feature | Bulkhead - Rear Fastened |
Material
Shell Material | Copper Alloy |
Contact Material | Copper Alloy |
Contact Finish | Gold |
Insulating Material | PPS |
Electrical
Shielding | Shielded |
Rated Current | 7A |
Environmental
Operating Temperature | -55°C ~ + 150°C |
