Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 314 CLL Back Mount
B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 314 CLL Back Mount - EGG.2B.314.CLL
B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 314 CLL Back Mount - EGG.2B.314.CLL

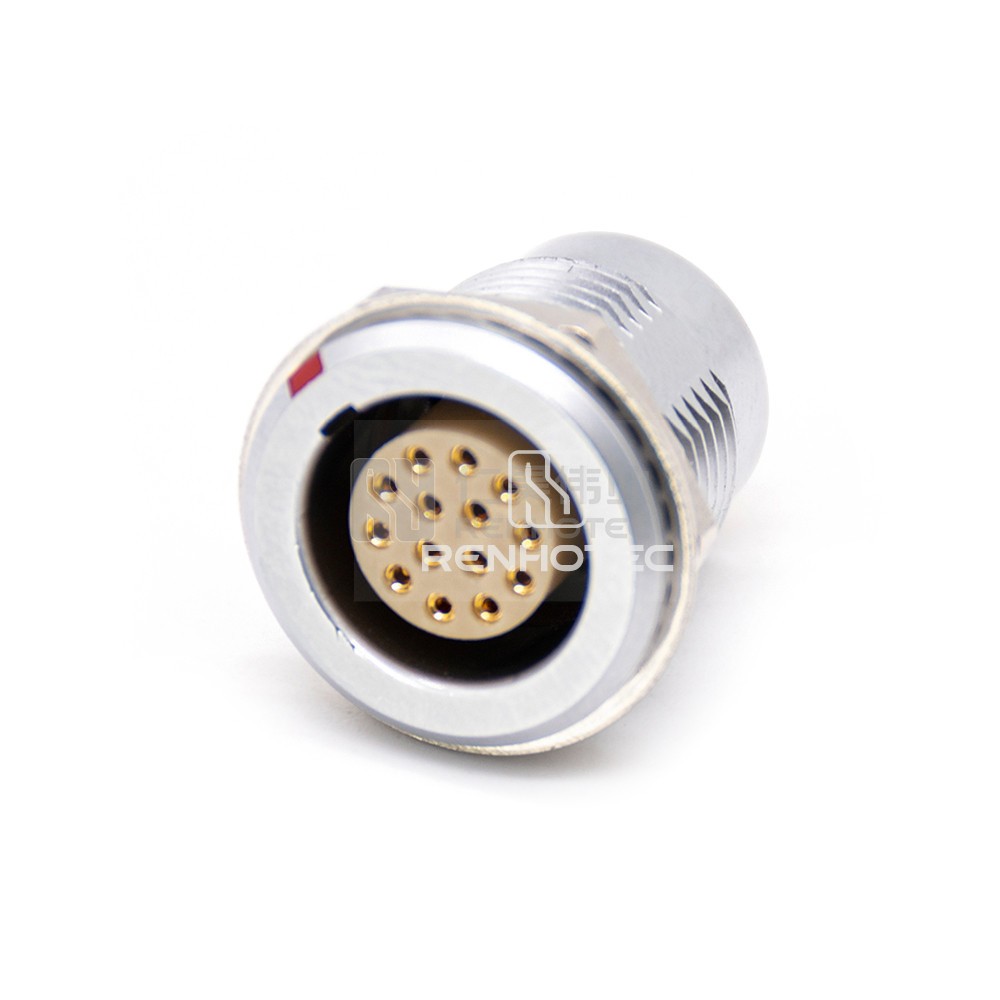

B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 314 CLL Back Mount product image

EGG.2B.314.CLL

B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 314 CLL Back Mount

  • Technical data
  • Overview
  • Certification
  • Download
General
Connector TypeSocket
Number of Positions14
Contact TypeFemale Pin
OrientationStraight
Mounting TypePanel Mount
Mounting FeatureBulkhead - Rear Fastened
Fastening TypeSnap on
Wire Gauge or Range30-22AWG
Materials
Shell MaterialCopper Alloy
Insulating MaterialPPS
Contact MaterialCopper Alloy
Contact FinishGold
Electrical
Rated Current6.5A
ShieldingShielded
Environmental
Operating Temperature-55°C ~ + 150°C

Product excerpt

Find high-quality B series push-pull self-locking connector socket female straight EGG 2B 314 CLL back mount available. Perfect for various industrial applications.

Catelog

RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
