Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Socket Female Straight EHG 1B 307 CLL Back Mount

EHG.1B.307.CLL

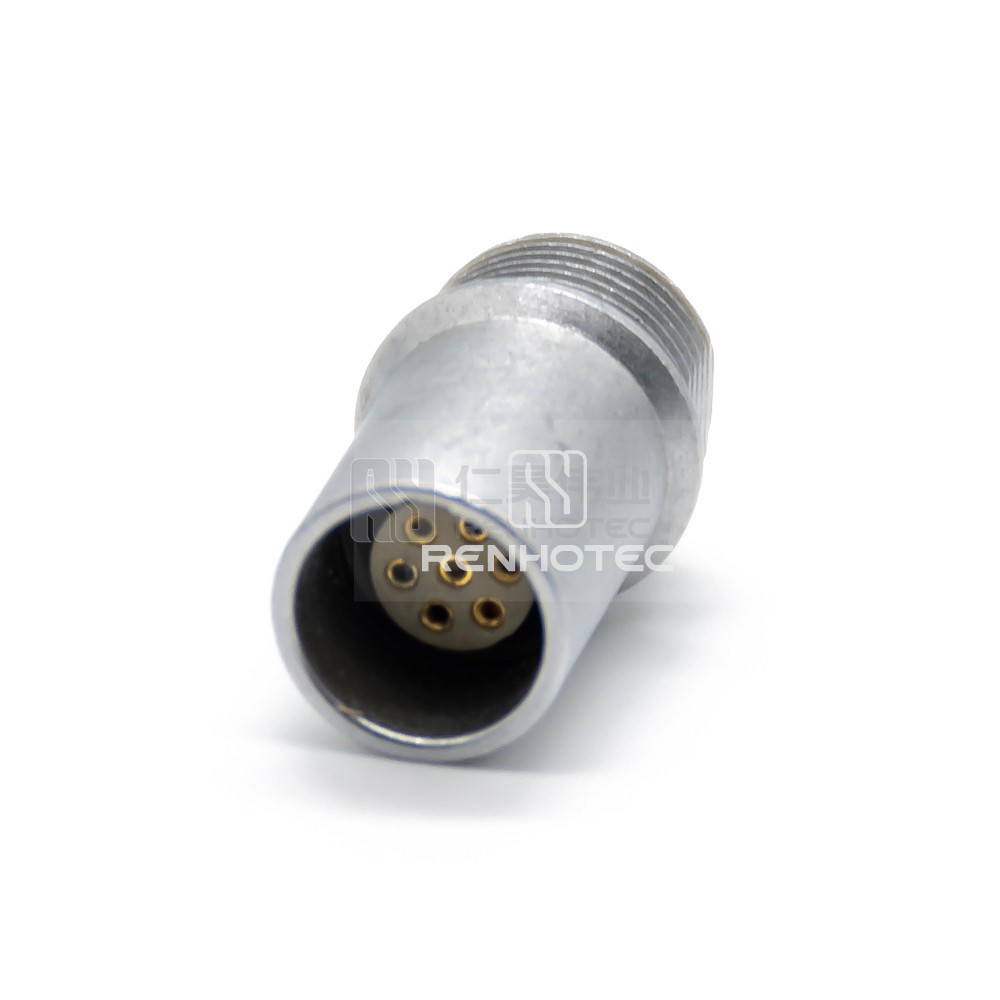

B Series Push Pull Self-locking Connector Socket Female Straight EHG 1B 307 CLL Back Mount

High-quality B Series Push Pull Self-locking Connector Socket Female Straight EHG 1B 307 CLL Back Mount socket female designed for secure and reliable connections. SKU: EHG.1B.307.CLL.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeSocket
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions7
    Fastening TypeSnap on
    Mounting TypePanel Mount
    Mounting FeatureBulkhead - Rear Fastened

    Shell

    Shell SizeM12

    Mechanical

    Wire Gauge or Range30-22AWG

    Material

    Shell MaterialCopper Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel
    Insulating MaterialPPS

    Electrical

    ShieldingShielded
    Rated Current7A

    Environmental

    Operating Temperature-55°C ~ + 150°C
    RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
