B Series Push Pull Self-locking Connector Socket Female Straight HGG 2B 306 CLL Back Mount - HGG.2B.306.CLL
B Series Push Pull Self-locking Connector Socket Female Straight HGG 2B 306 CLL Back Mount - HGG.2B.306.CLL

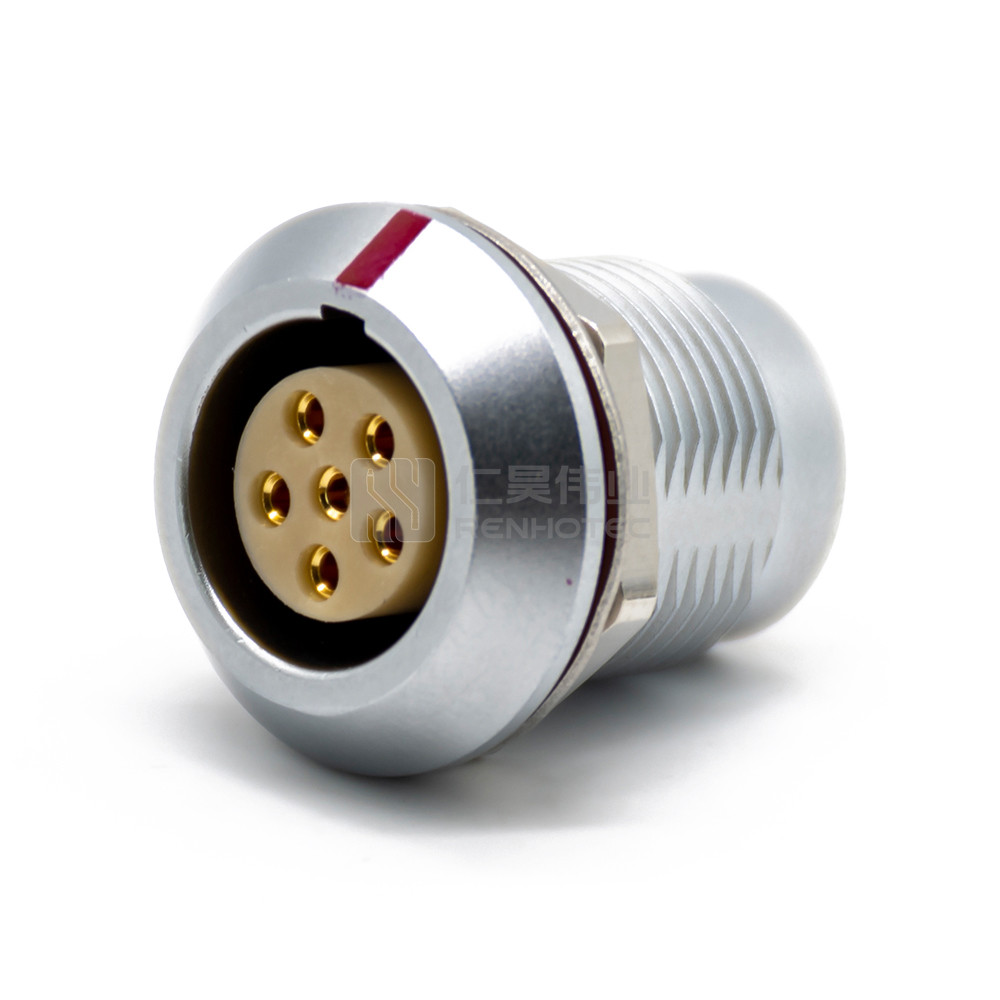

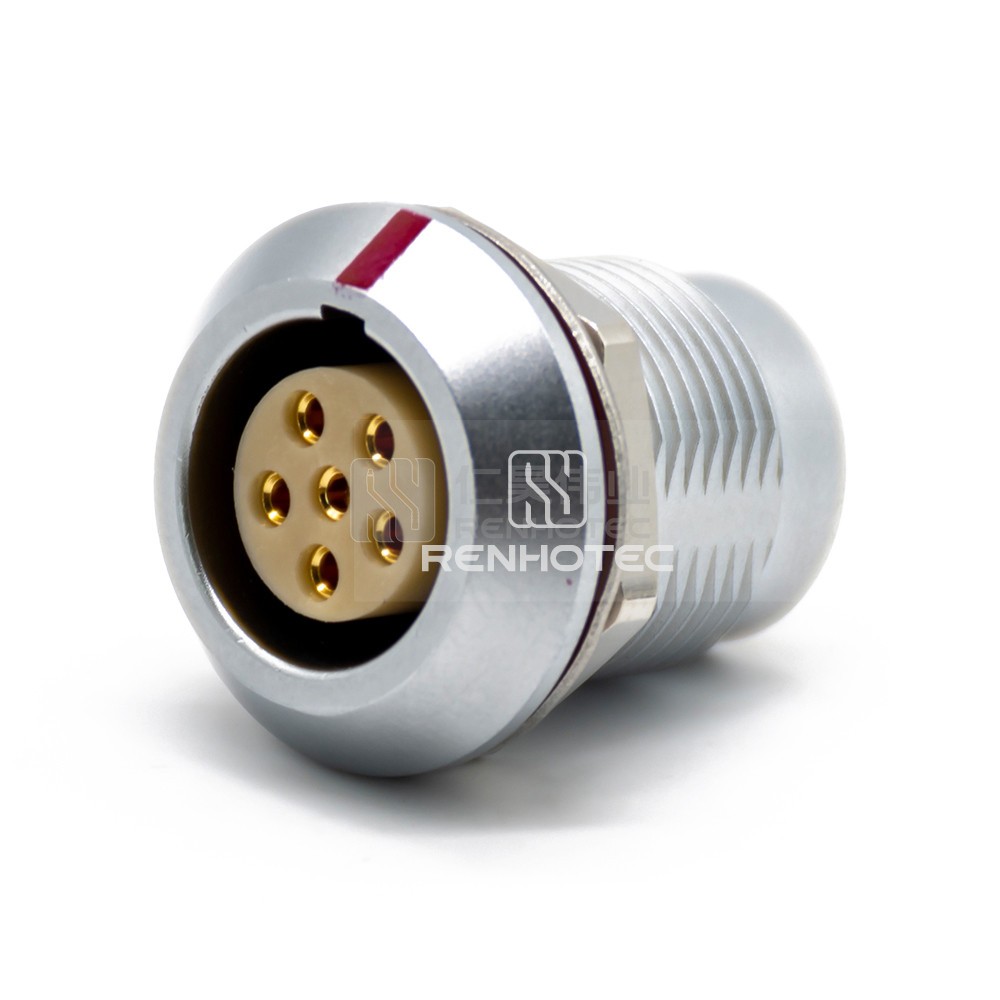

B Series Push Pull Self-locking Connector Socket Female Straight HGG 2B 306 CLL Back Mount product image

HGG.2B.306.CLL

B Series Push Pull Self-locking Connector Socket Female Straight HGG 2B 306 CLL Back Mount

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Connector TypeSocket
    Number of Positions6
    Contact TypeFemale Pin
    OrientationStraight
    Mounting TypePanel Mount
    Mounting FeatureBulkhead - Rear Fastened
    Fastening TypeSnap on
    Wire Gauge or Range28-20AWG
    Materials
    Shell MaterialCopper Alloy
    Insulating MaterialPPS
    Contact MaterialCopper Alloy
    Contact FinishGold
    Electrical
    Rated Current12A
    ShieldingShielded
    Environmental
    Operating Temperature-55°C ~ + 150°C

    Product excerpt

    High-quality B Series push-pull self-locking connector socket designed for secure and reliable connections. Female straight configuration with HGG 2B 306 CLL back mount. Perfect for various industrial applications.
