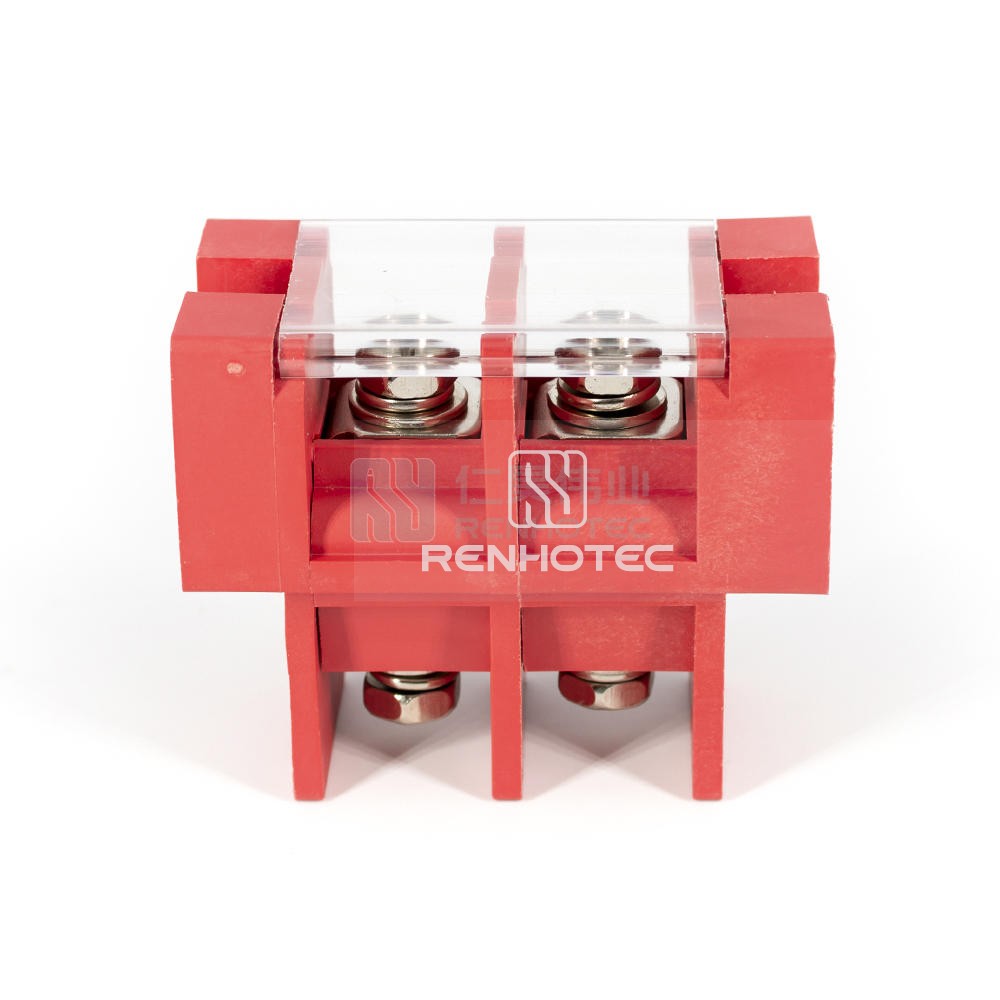

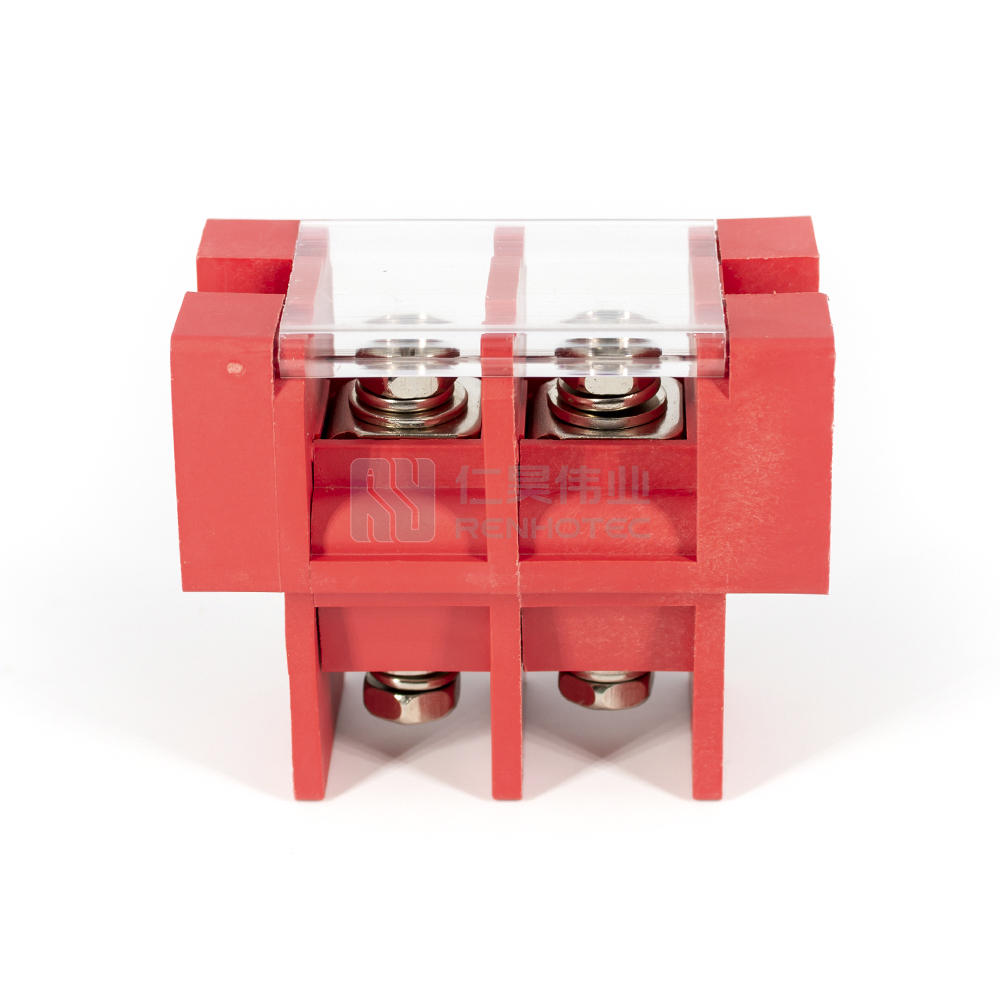

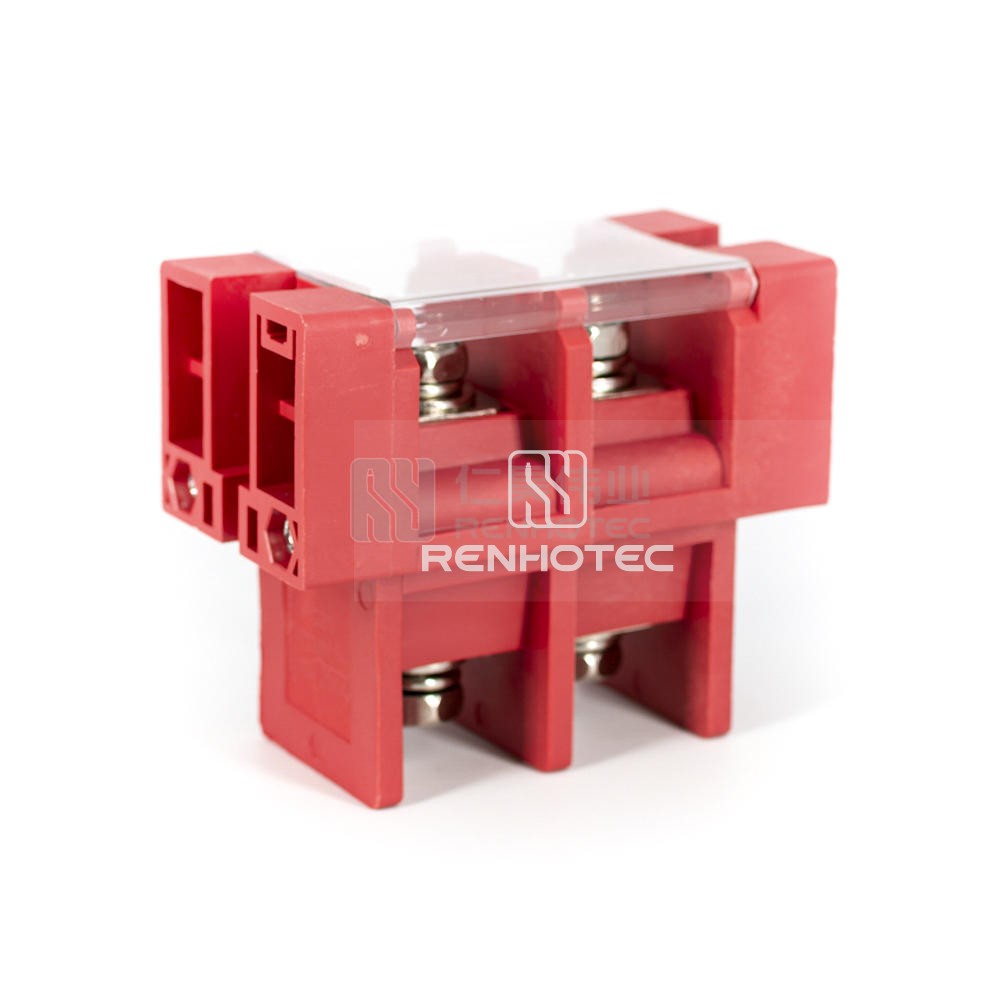

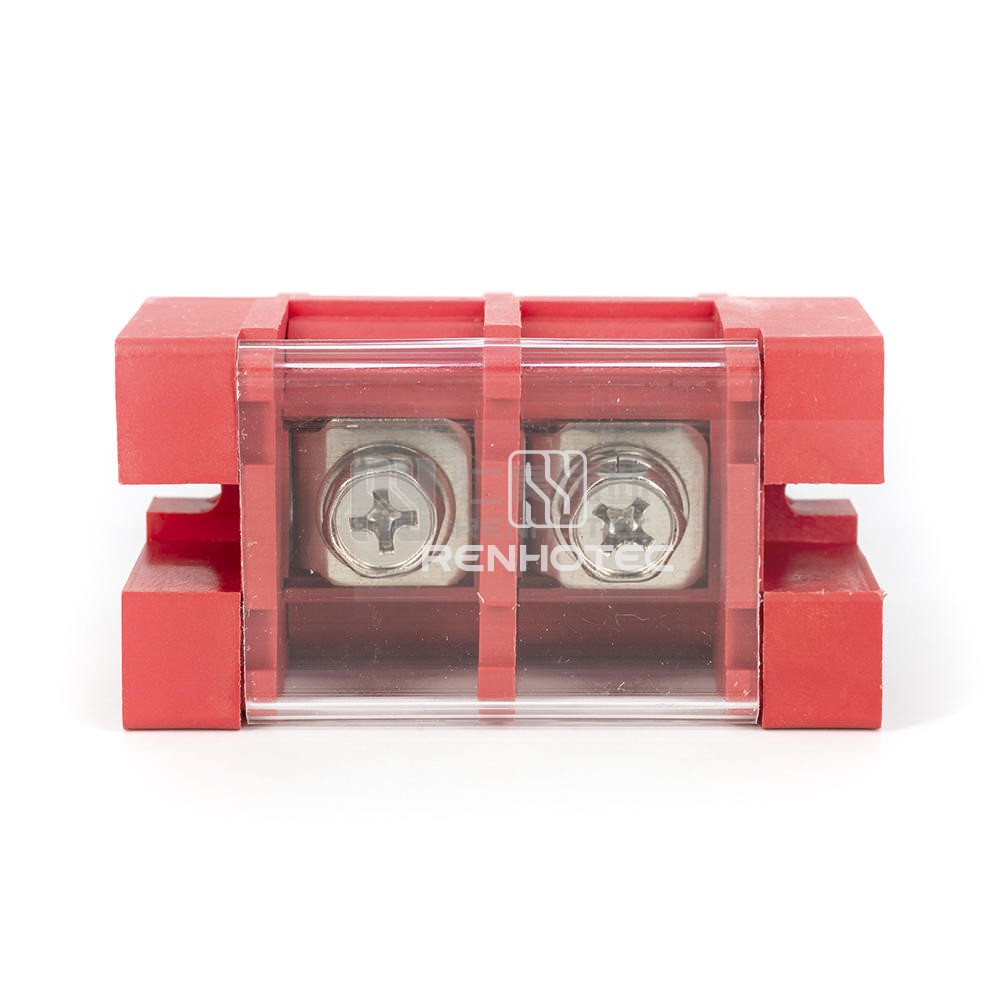

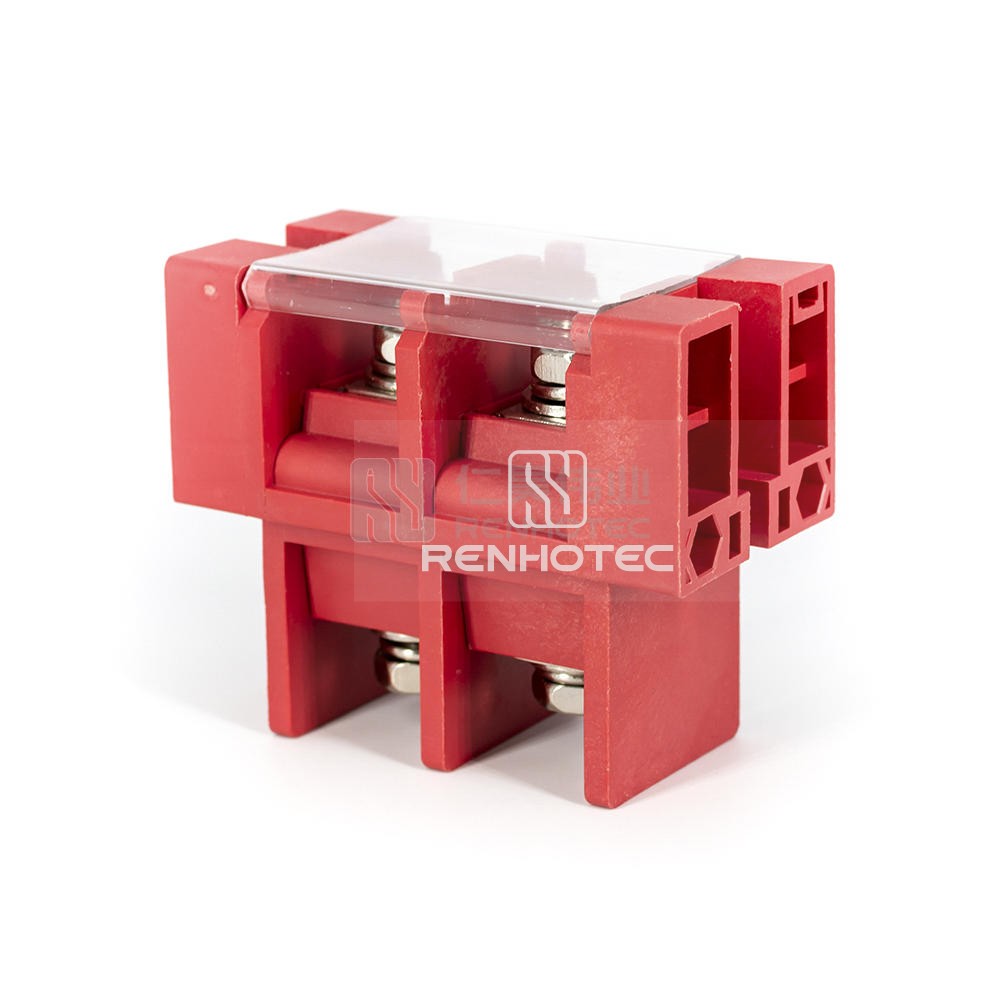

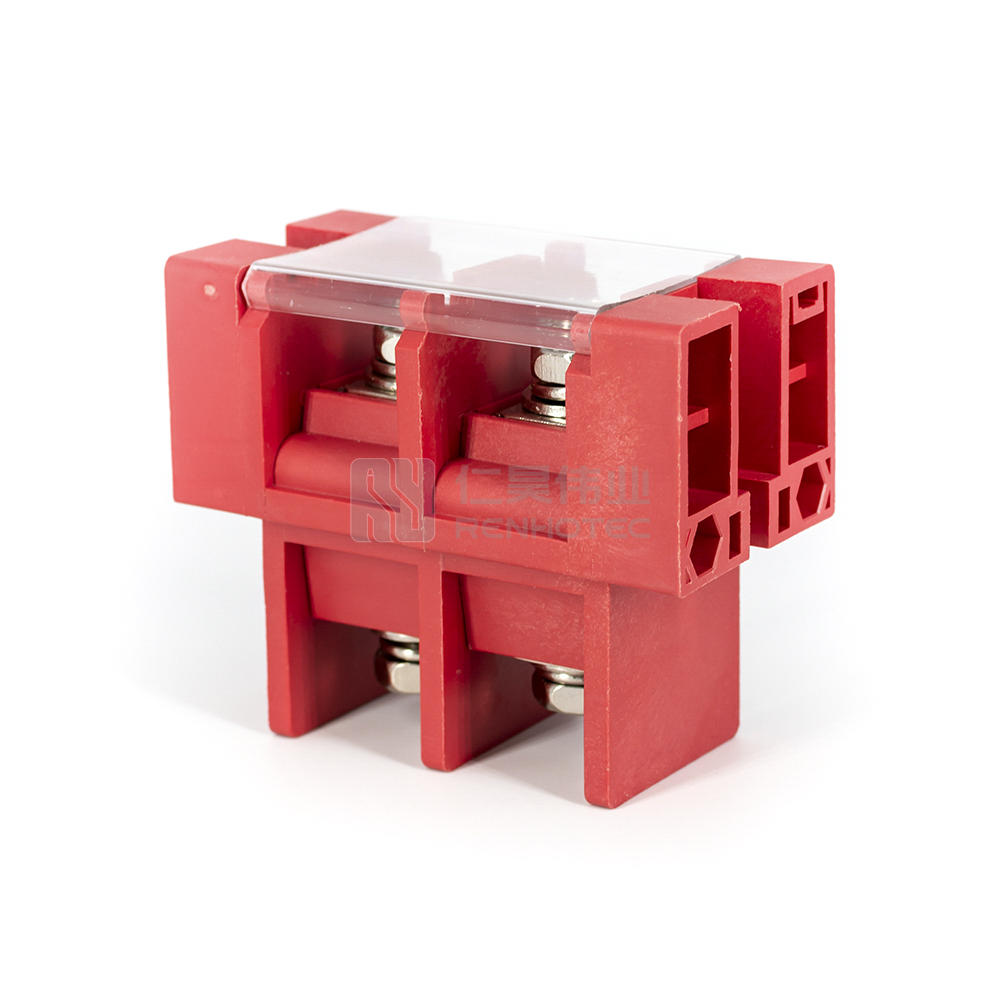

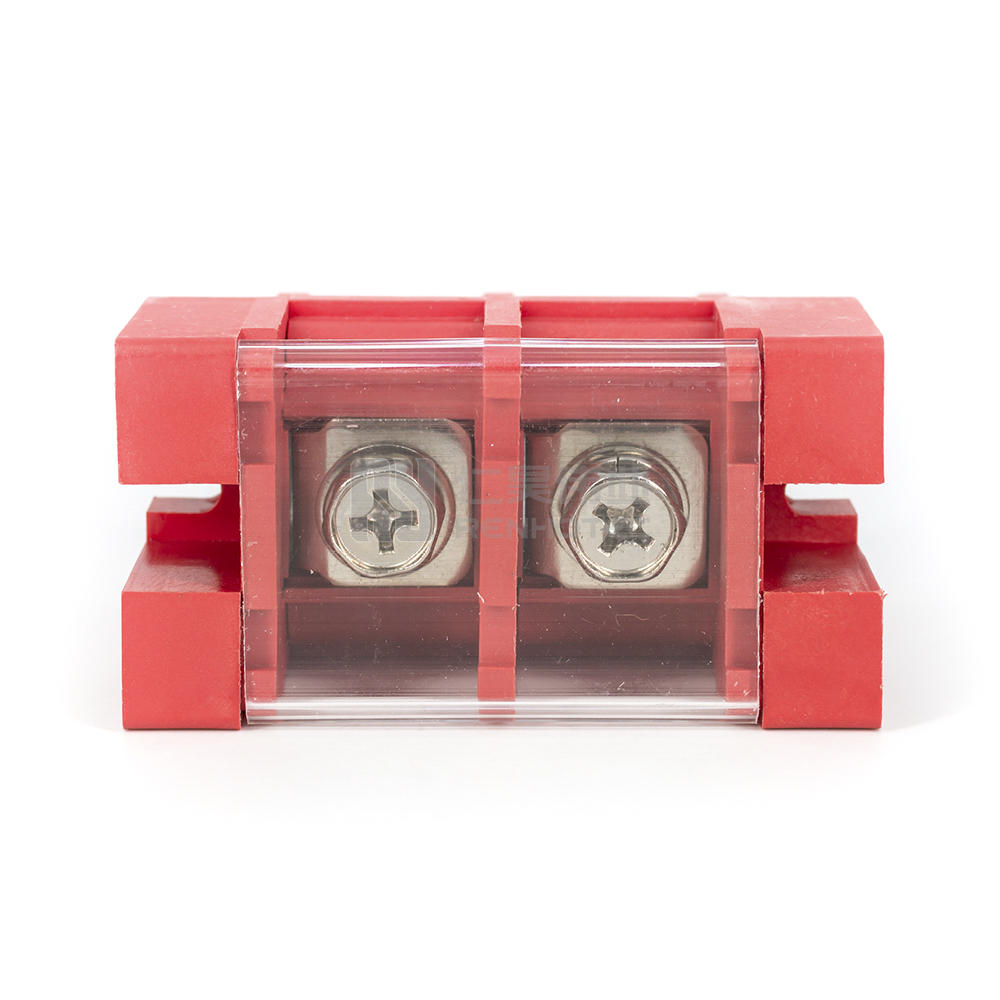

This barrier terminal block features 2 circuits with a 27mm pitch in a vibrant red color. Designed for easy installation and secure connections, this terminal block is waterproof, ensuring reliability in various applications.
Mechanical
Terminal Block Type | Barrier Block |
Pitch | 27mm |
Mounting Feature | Flange |
Wire Gauge or Range | 2/0-14AWG |
Bottom Termination | Screw |
Top Termination | Screw |
General
Number of Circuts | 2 |
Number of Wire Entries | 2 |
Number of Rows | 1 |
Color | Red |
Features | With Cover/Flange |
Electrical
Rated Voltage | 600V |
Rated Current | 200A |
Material
Terminal Screw Material | Steel |
Terminal Screw Finish | Nickel |
Environmental
Operating Temperature | -40°C ~ + 105°C |
Flammability | UL94 V-0 |
