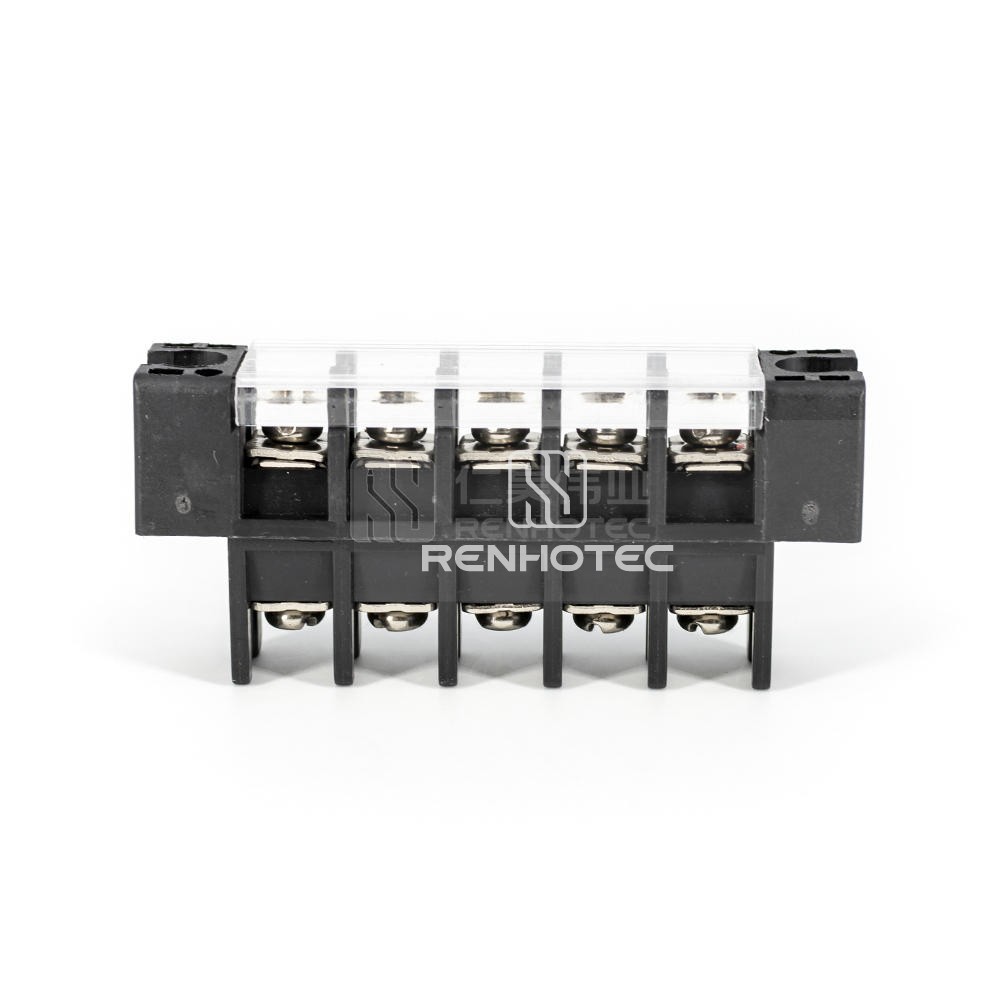

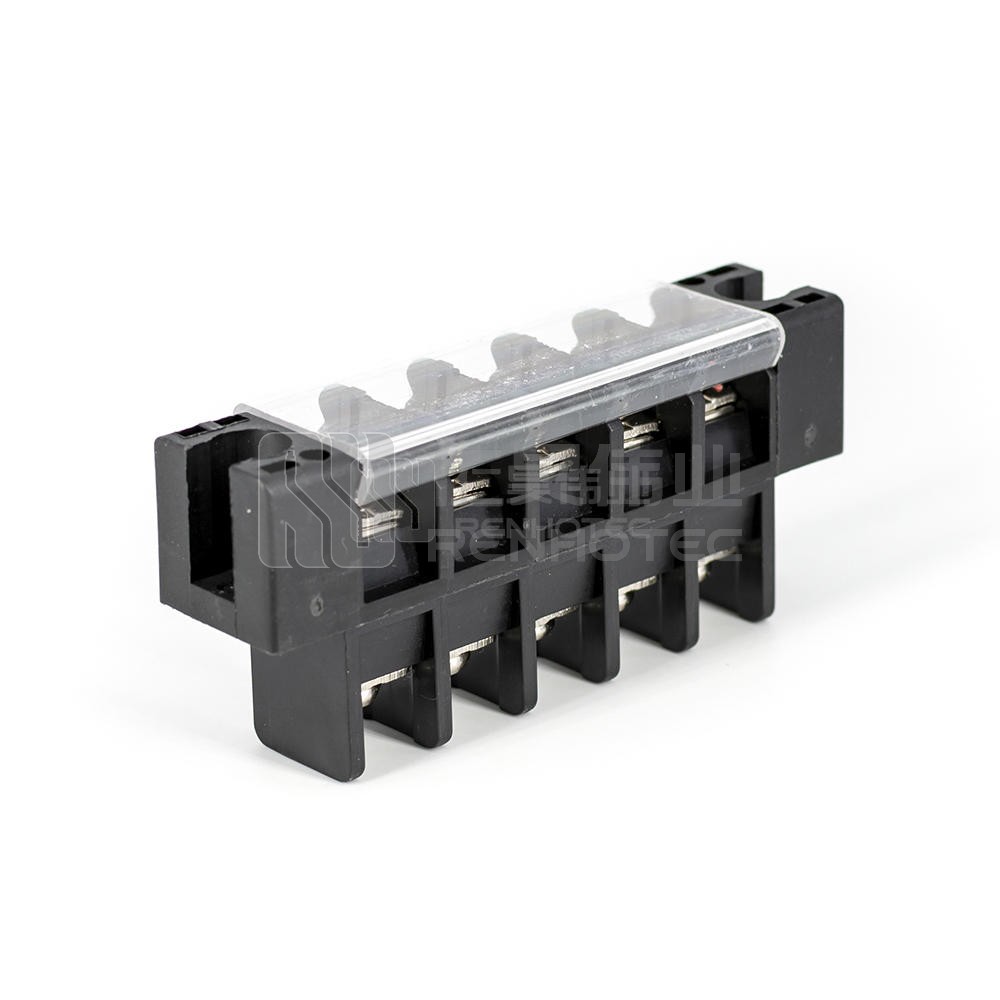

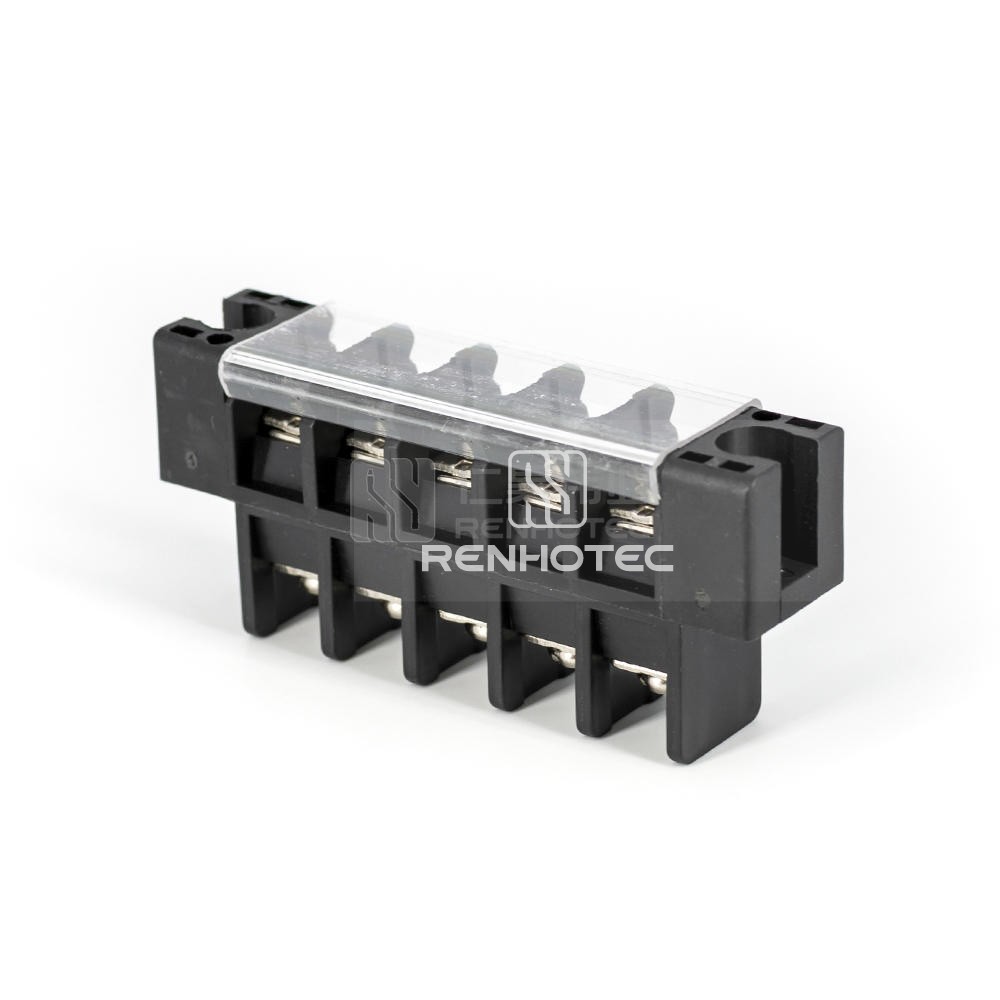

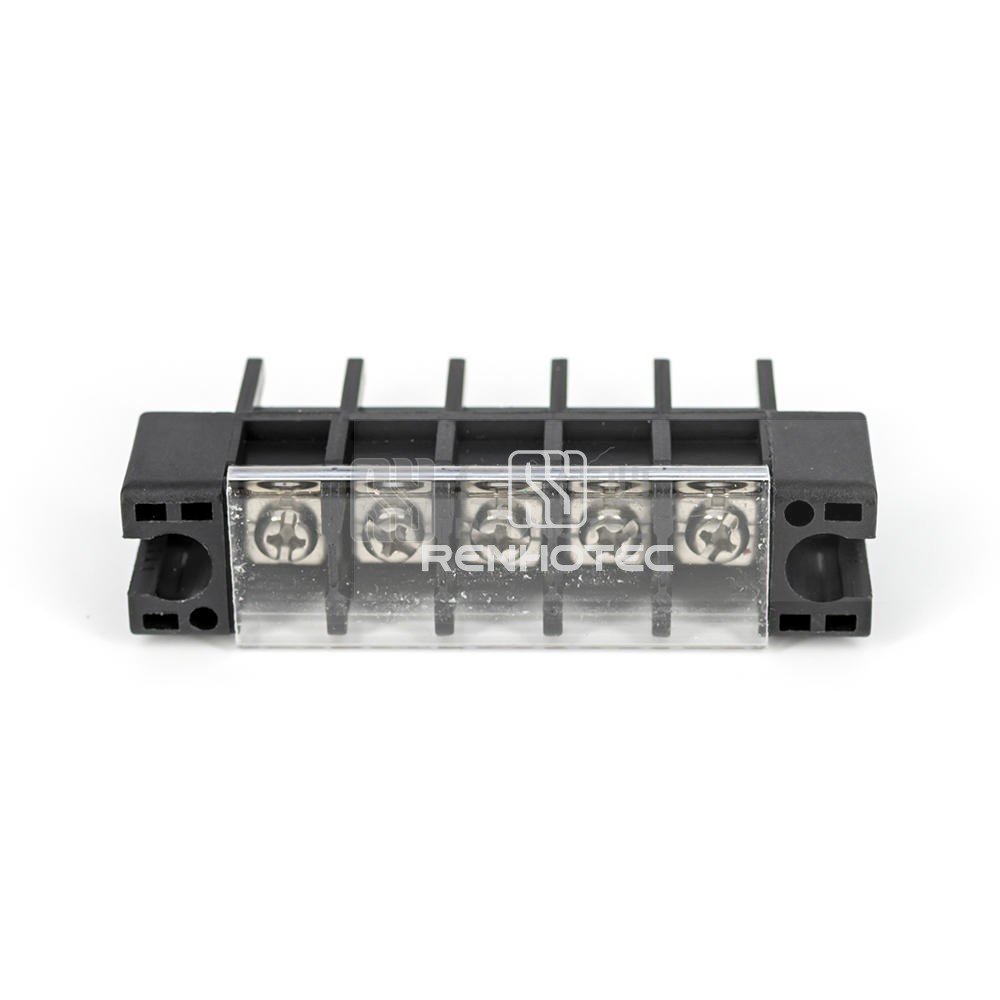

This waterproof barrier terminal block is designed with 5 circuits and a pitch of 11mm. It provides a secure and reliable connection for your electrical projects.
Mechanical
Terminal Block Type | Barrier Block |
Pitch | 11mm |
Mounting Feature | Flange |
Wire Gauge or Range | 12-22AWG |
Bottom Termination | Screw |
Top Termination | Screw |
General
Number of Circuts | 5 |
Number of Wire Entries | 5 |
Number of Rows | 1 |
Color | Black |
Features | With Cover/Flange |
Electrical
Rated Voltage | 600V |
Rated Current | 30A |
Material
Terminal Screw Material | Steel |
Terminal Screw Finish | Nickel |
Environmental
Operating Temperature | -40°C ~ + 105°C |
Flammability | UL94 V-0 |
