CA3102A10SL-2S

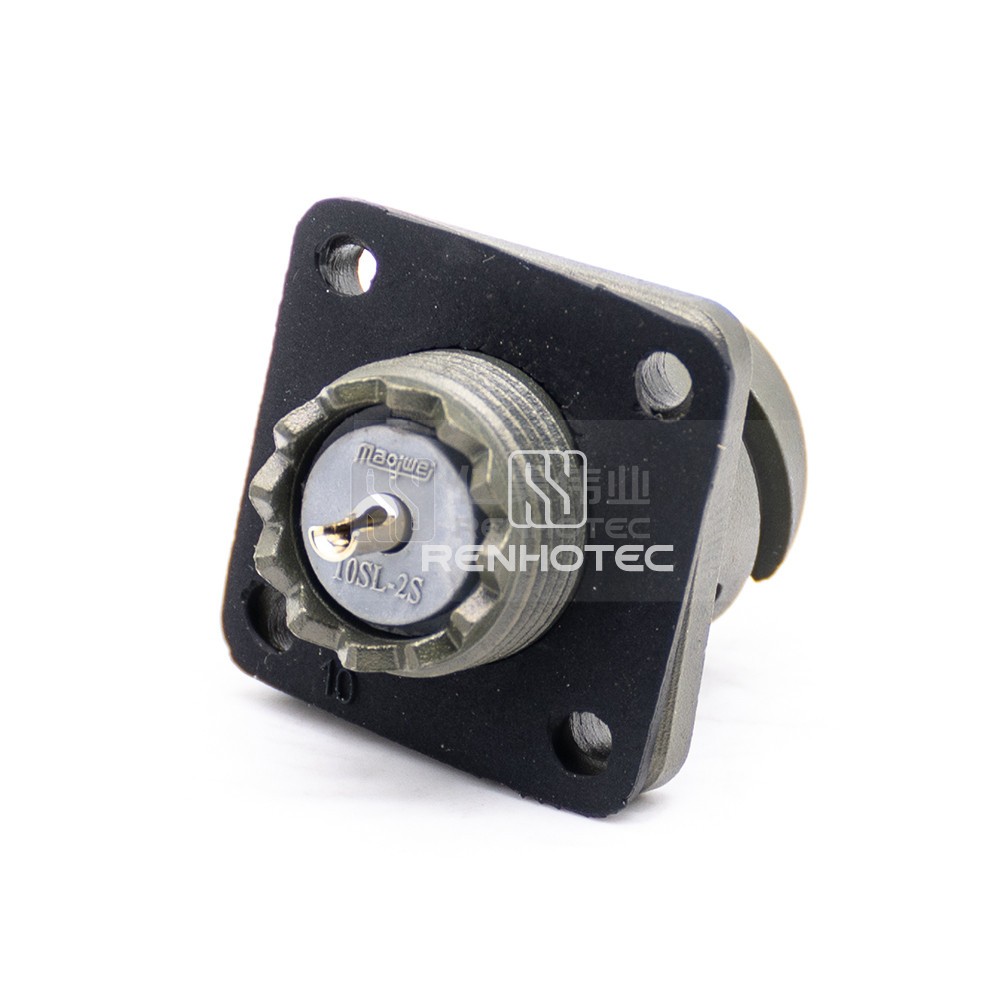

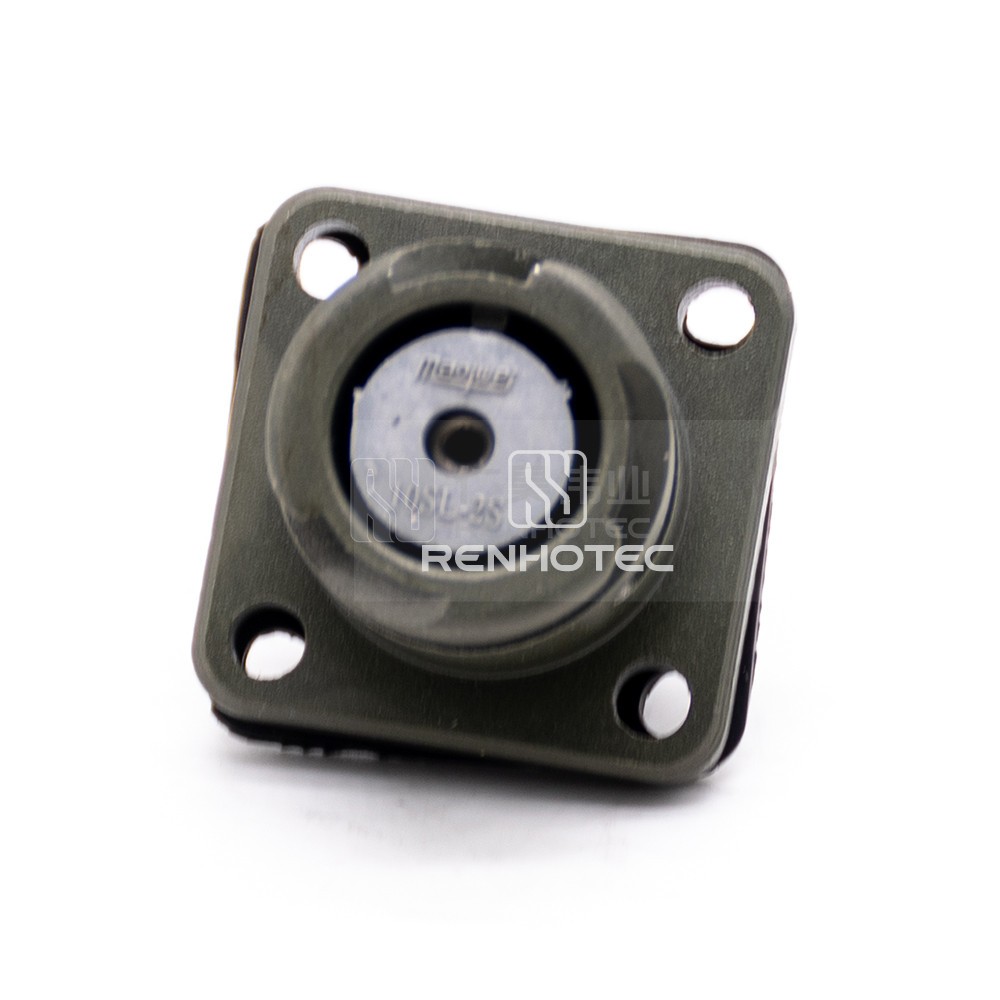

Bayonet Lock CA3102A10SL-2S 1Pin Female Box Mounting Receptacle Solder Cup
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This Bayonet Lock CA3102A10SL-2S receptacle is designed for box mounting and has a solder cup for easy connection. It features a 1-pin female connector for secure connections in various applications.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeFemale Pin
Number of Positions1
Contact Arrangements10SL-2
Contact TerminationSolder Cup
KeyN
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Contact FinishSilver
Mechanical
Fastening TypeBayonet
Mounting TypePanel Mount
Mounting FeatureFlange
Wire Gauge or Range20-16AWG
Environmental
Ingress ProtectionIP67
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size10SL
Electrical
ShieldingUnshielded
Rated Current15A
Rated Voltage500V
