Products > MIL Spec Connector > Bayonet Lock CA3102A10SL-3S 3Pin Female Box Mounting Receptacle Solder Cup

CA3102A10SL-3S

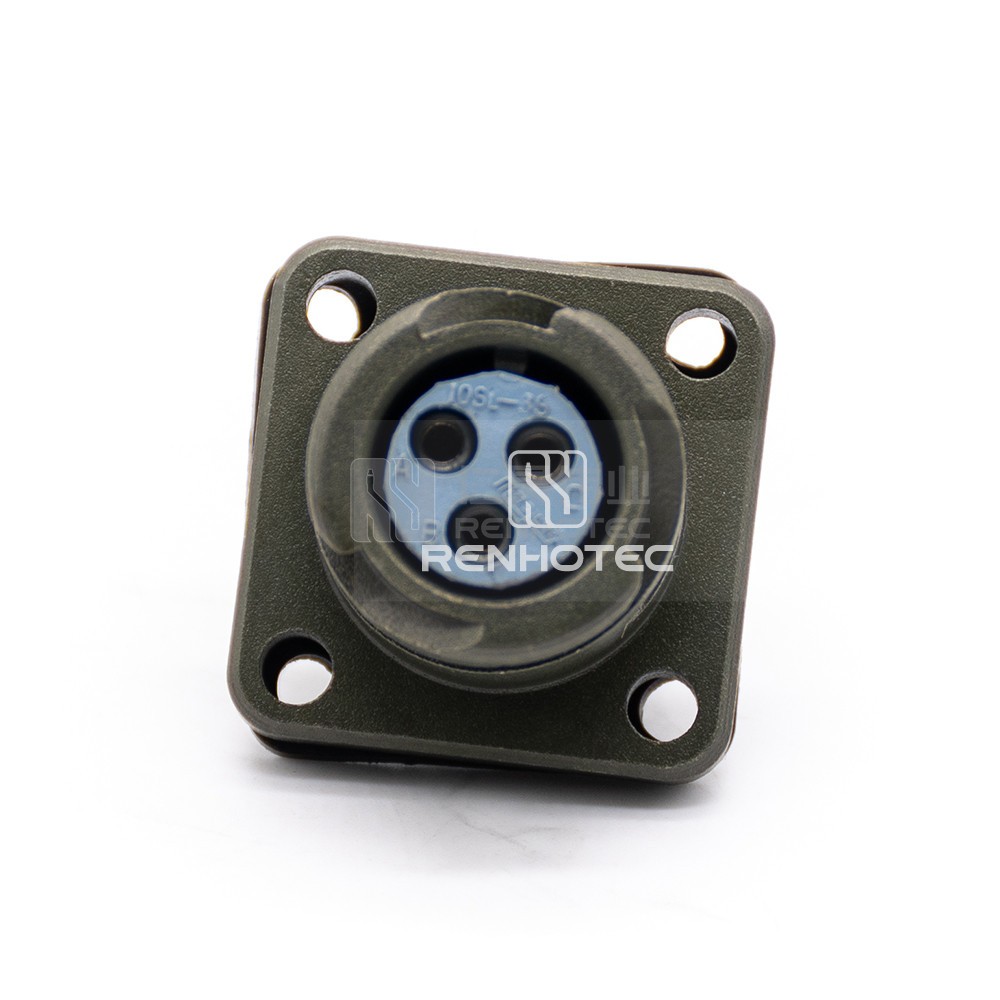

Bayonet Lock CA3102A10SL-3S 3Pin Female Box Mounting Receptacle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Securely mount and connect wires with this 3-pin female box mounting receptacle featuring a bayonet lock mechanism and solder cup connections. Ideal for various electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions3
    Contact Arrangements10SL-3
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size10SL

    Mechanical

    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-55°C ~ + 125°C

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    MS5015 Test Report Download
