CA3102A10SL-4S

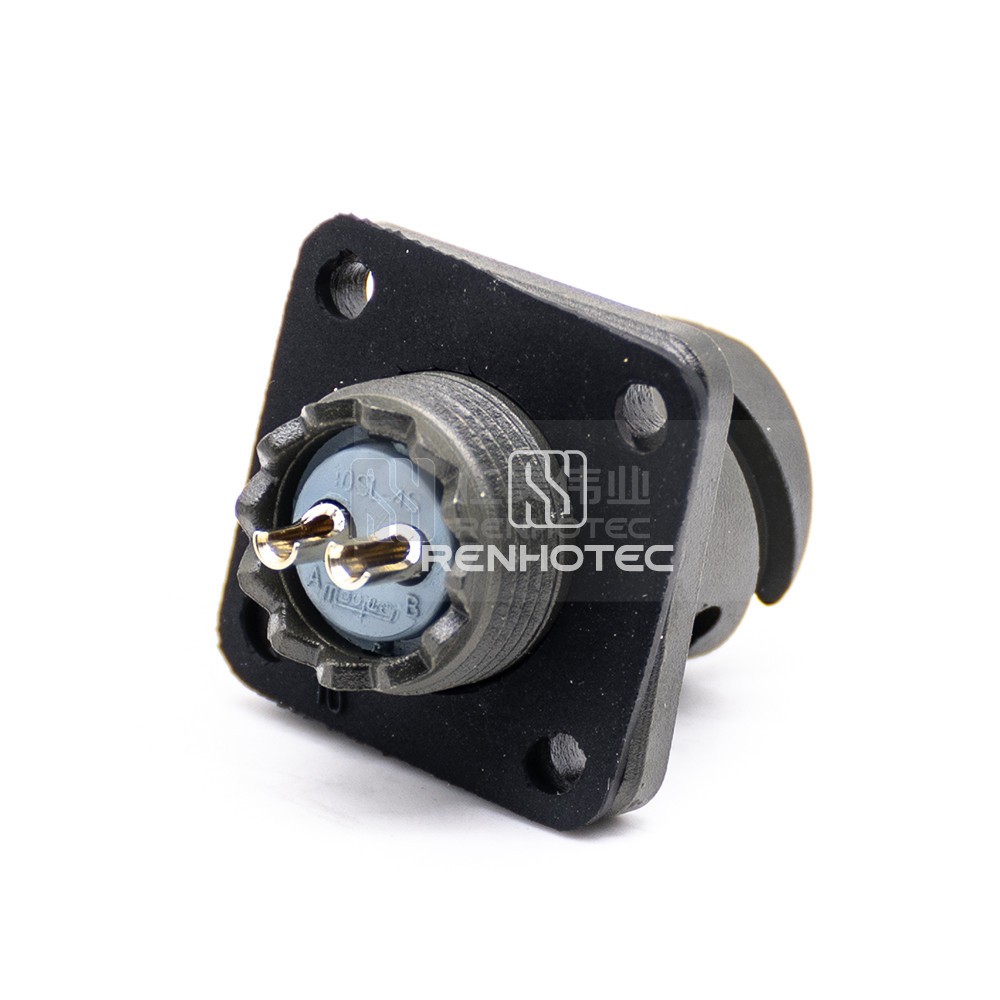

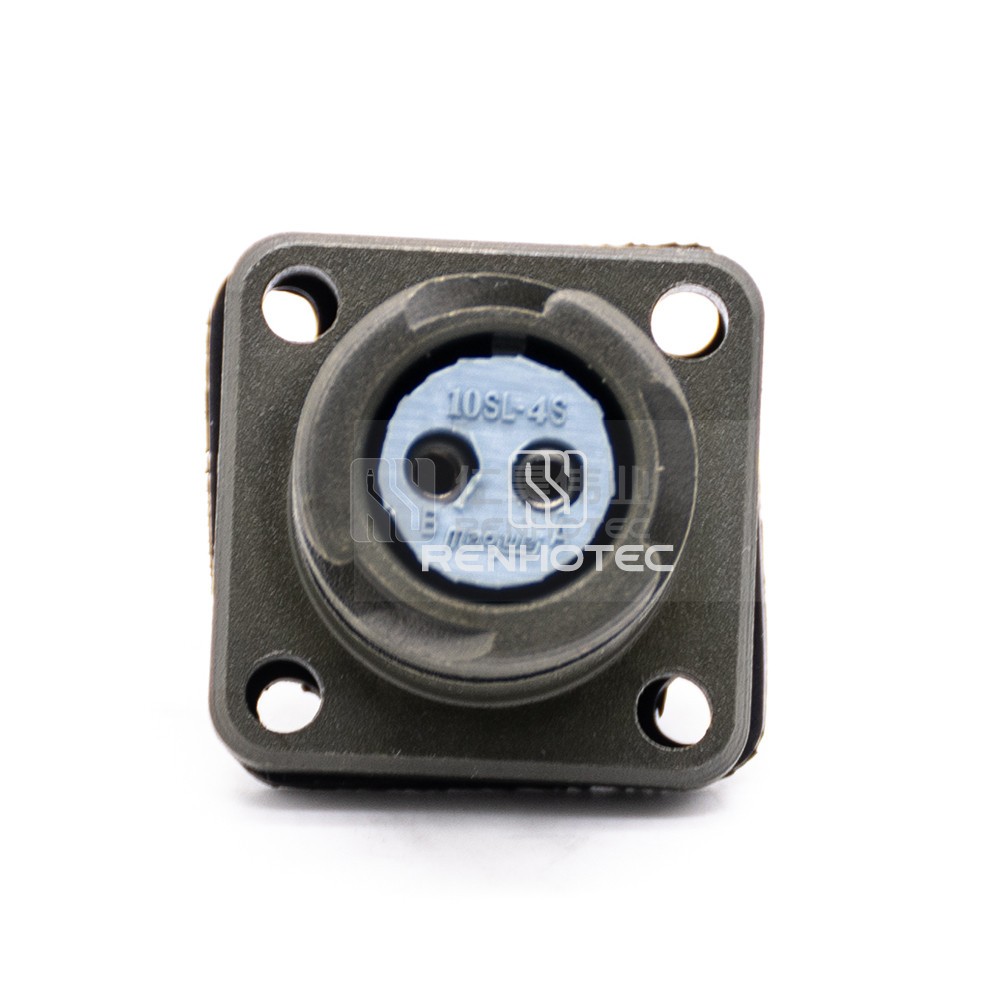

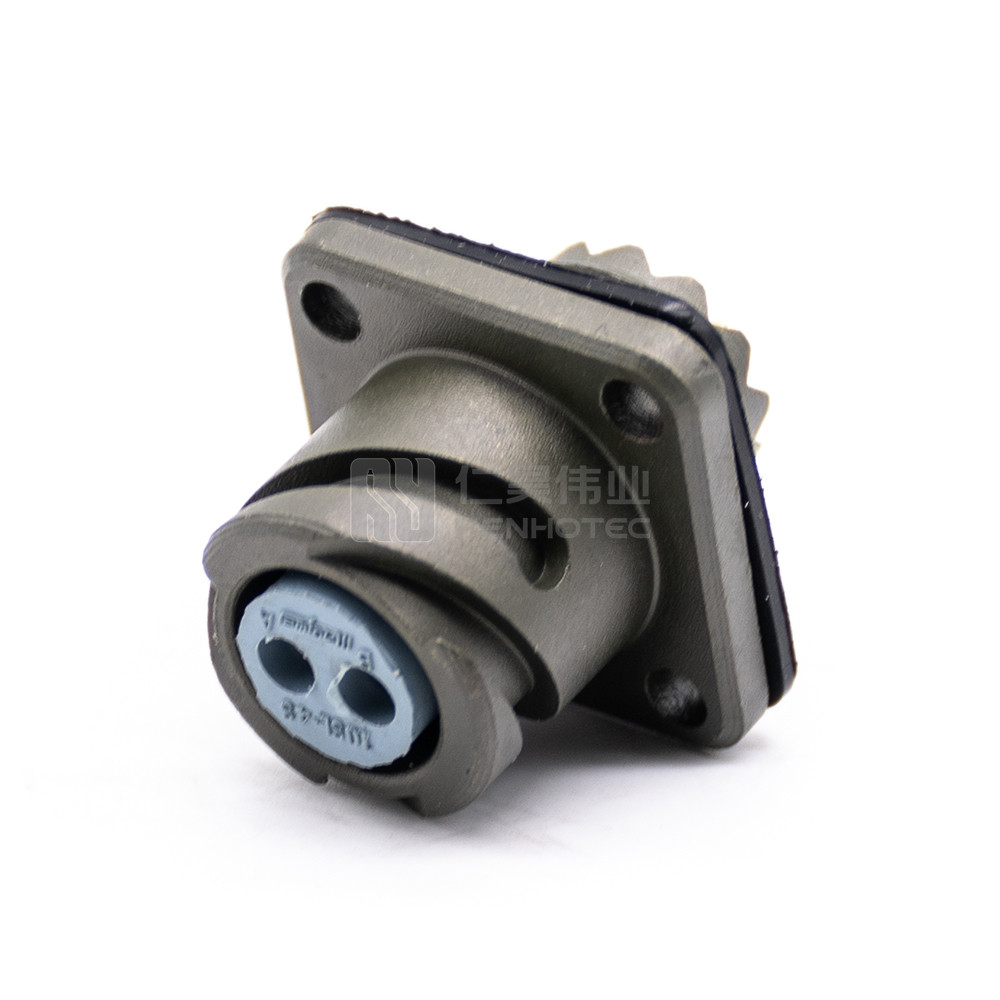

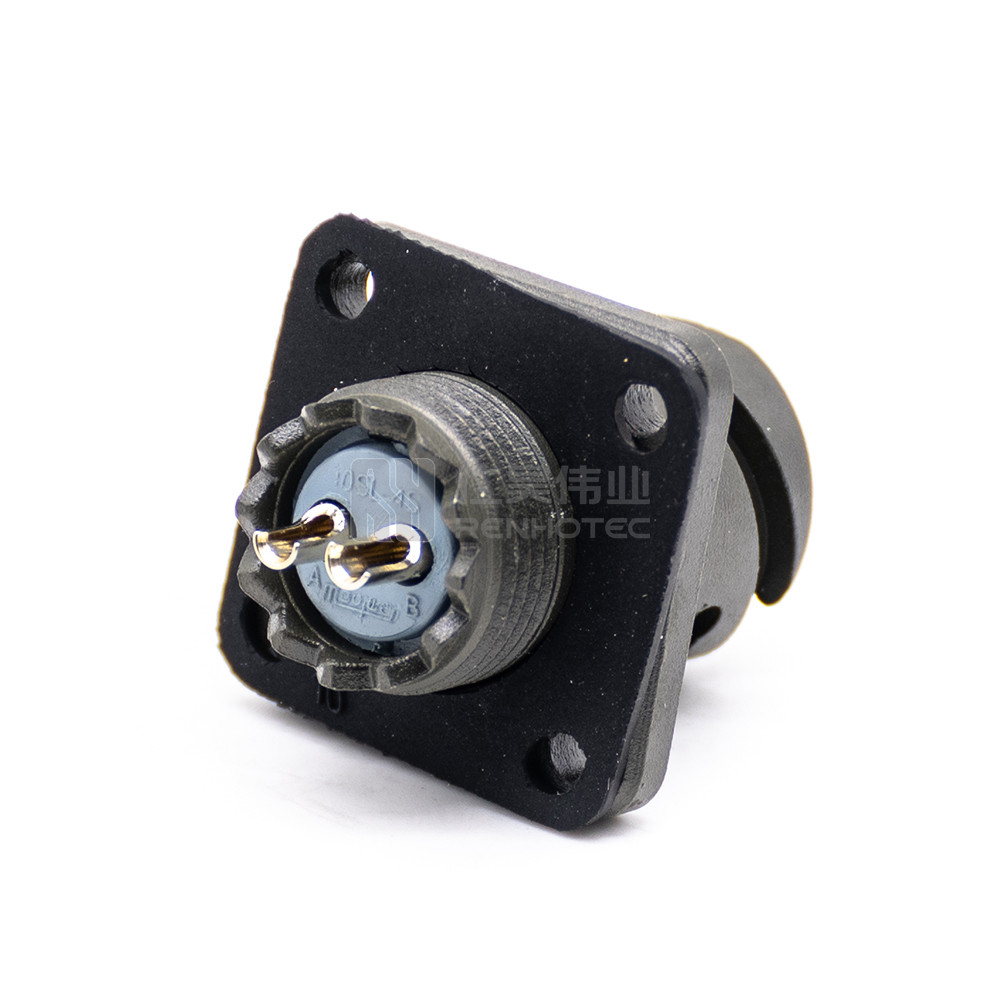

Bayonet Lock CA3102A10SL-4S 2Pin Female Box Mounting Receptacle Solder Cup
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

High-quality 2-pin female box mounting receptacle with solder cup, featuring a bayonet lock design. Ideal for secure and reliable connections in various electrical applications.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeFemale Pin
Number of Positions2
Contact Arrangements10SL-4
Contact TerminationSolder Cup
KeyN
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Contact FinishGold
Mechanical
Fastening TypeBayonet
Mounting TypePanel Mount
Mounting FeatureFlange
Wire Gauge or Range20-16AWG
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size10SL
Electrical
ShieldingUnshielded
Rated Current15A
Rated Voltage500V
