CA3102A14S-1S

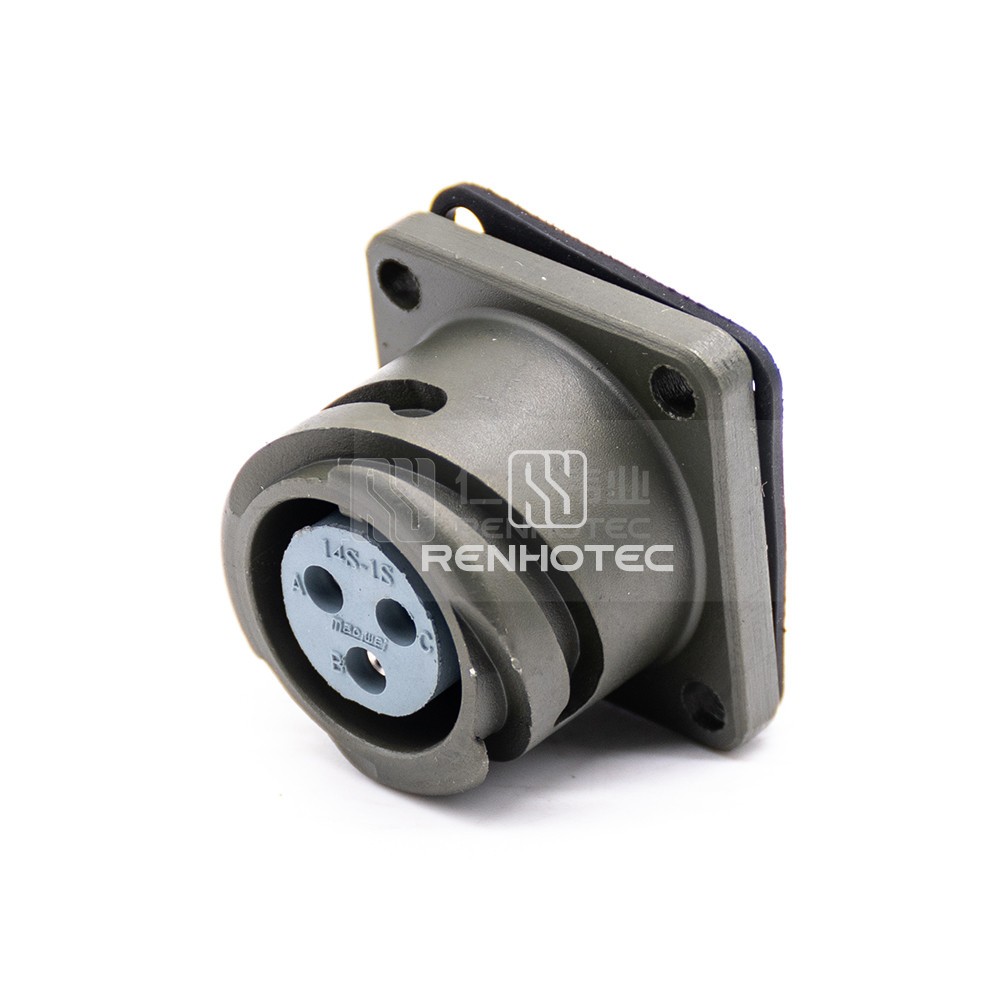

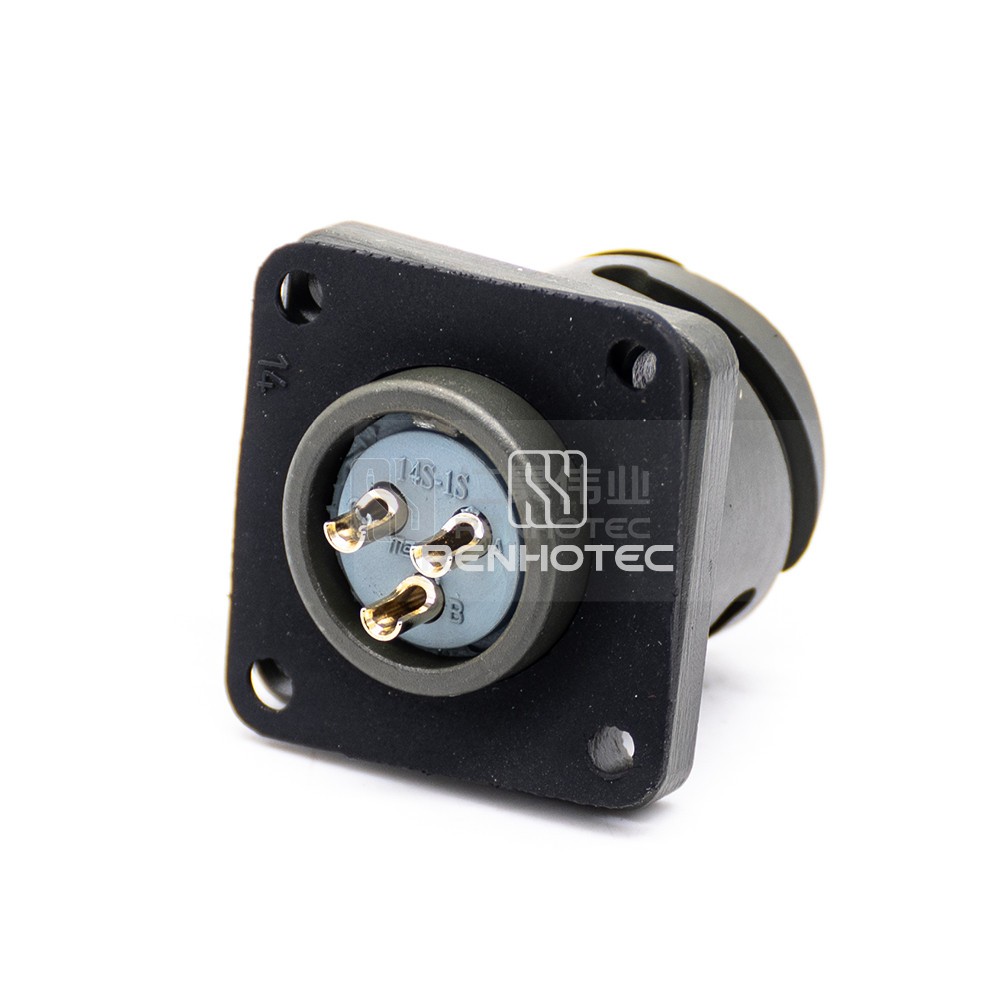

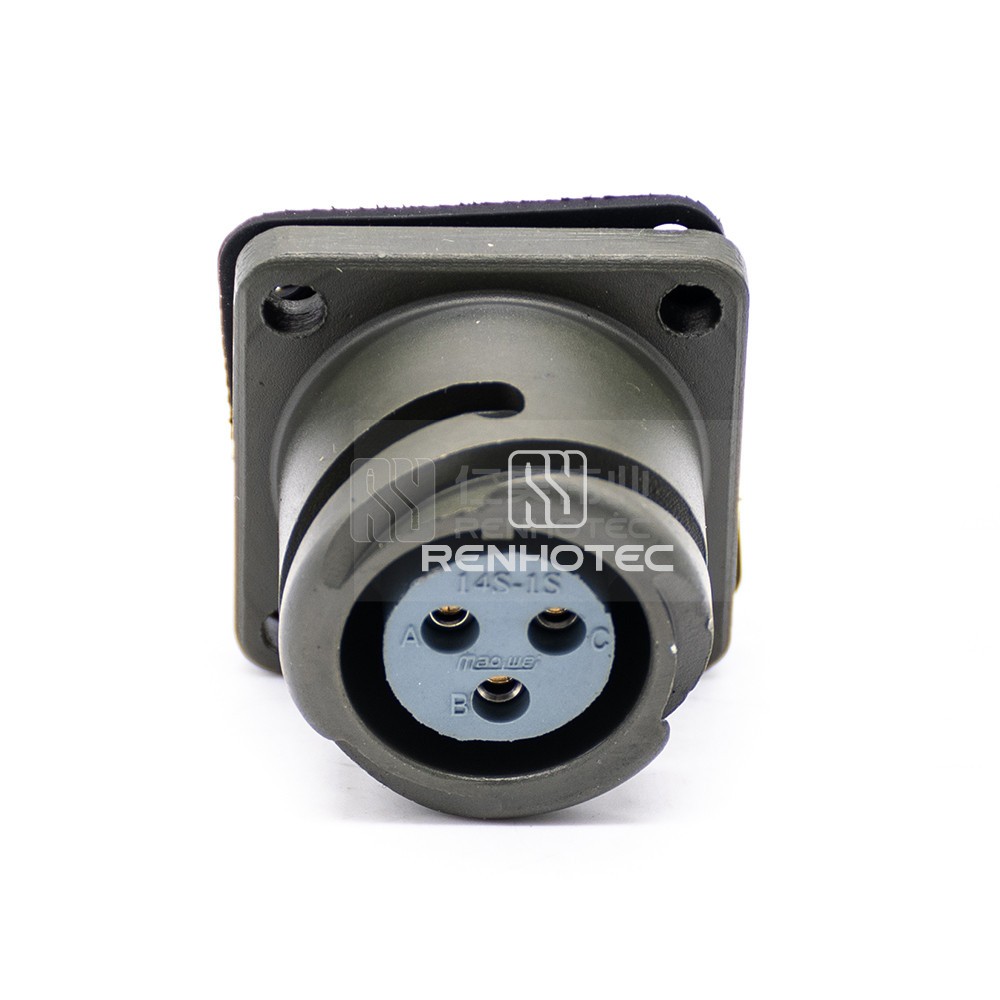

Bayonet Lock CA3102A14S-1S 3Pin Female Box Mounting Receptacle Solder Cup
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

High-quality 3-pin female box mounting receptacle with solder cup connections and bayonet lock feature for secure connections.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeMale Pin
Number of Positions3
Contact Arrangements14S-1
Contact TerminationSolder Cup
KeyN
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Contact FinishGold
Mechanical
Fastening TypeBayonet
Mounting TypePanel Mount
Mounting FeatureFlange
Wire Gauge or Range20-16AWG
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size14S
Electrical
ShieldingUnshielded
Rated Current15A
Rated Voltage500V
