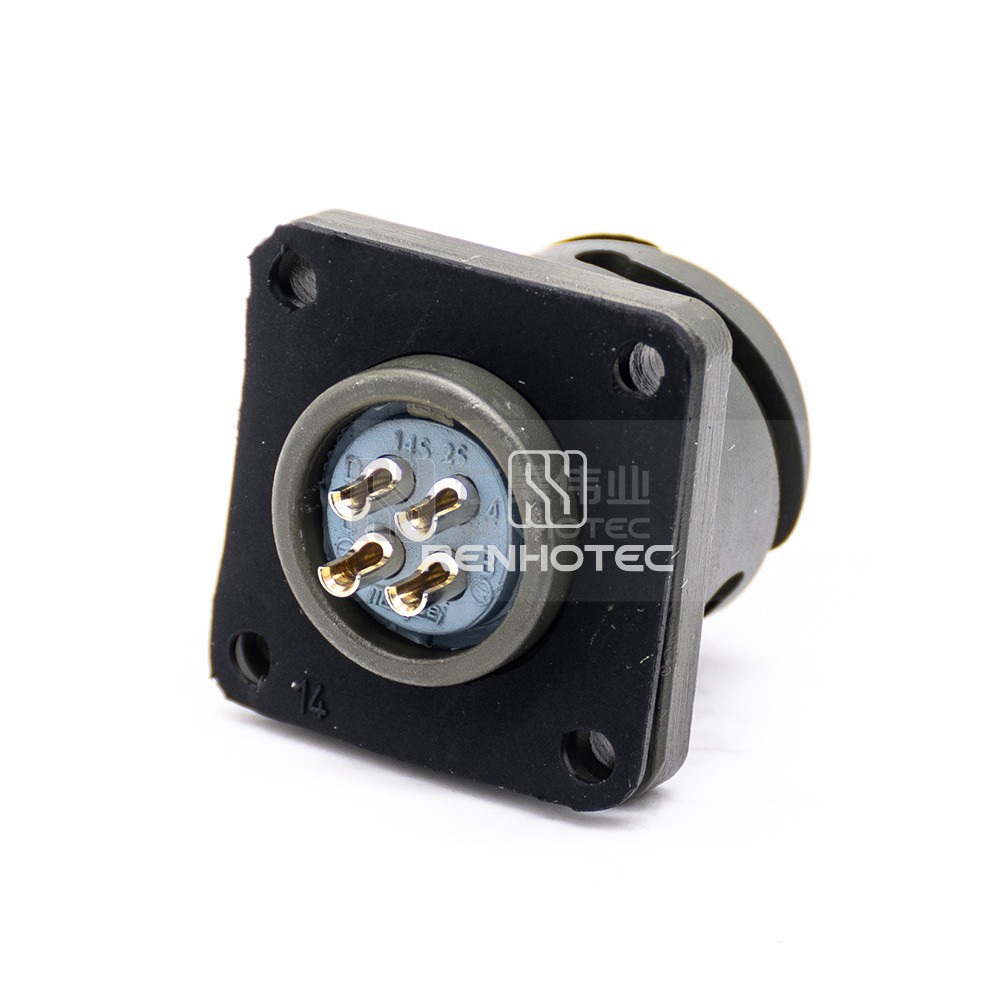

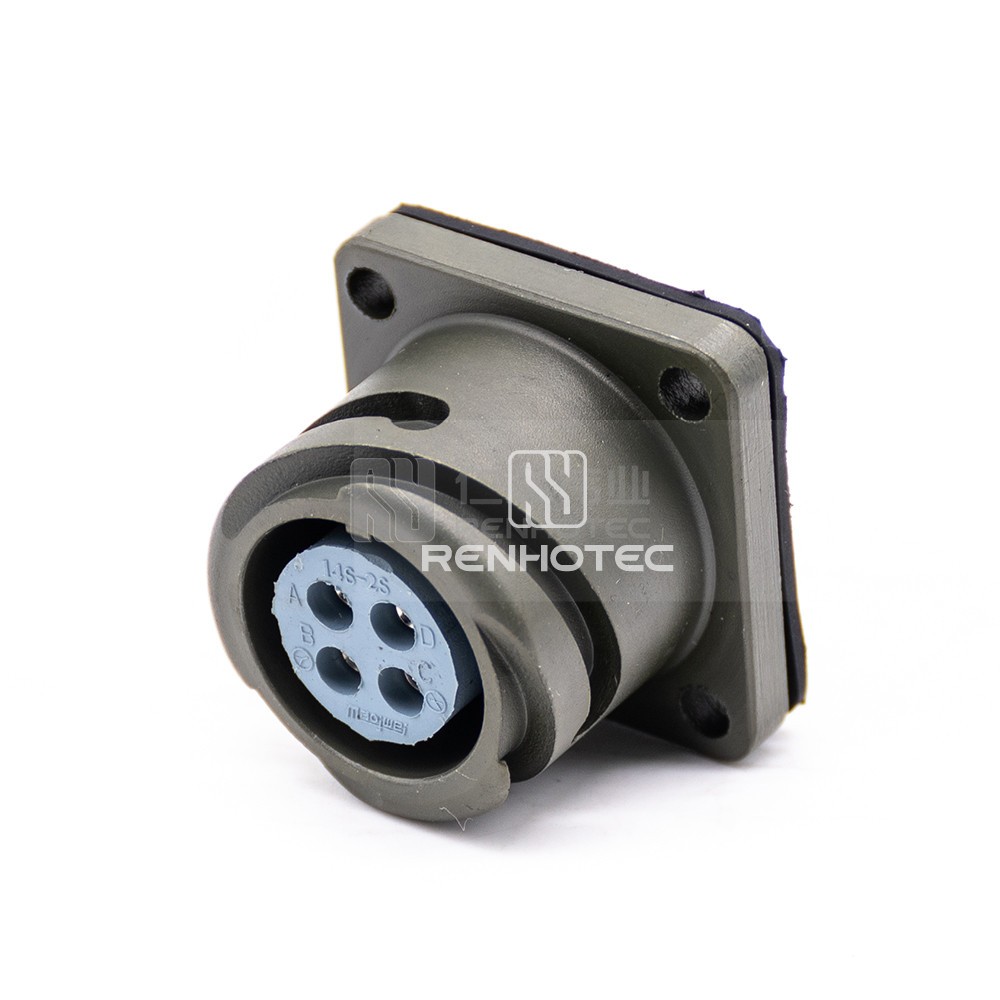

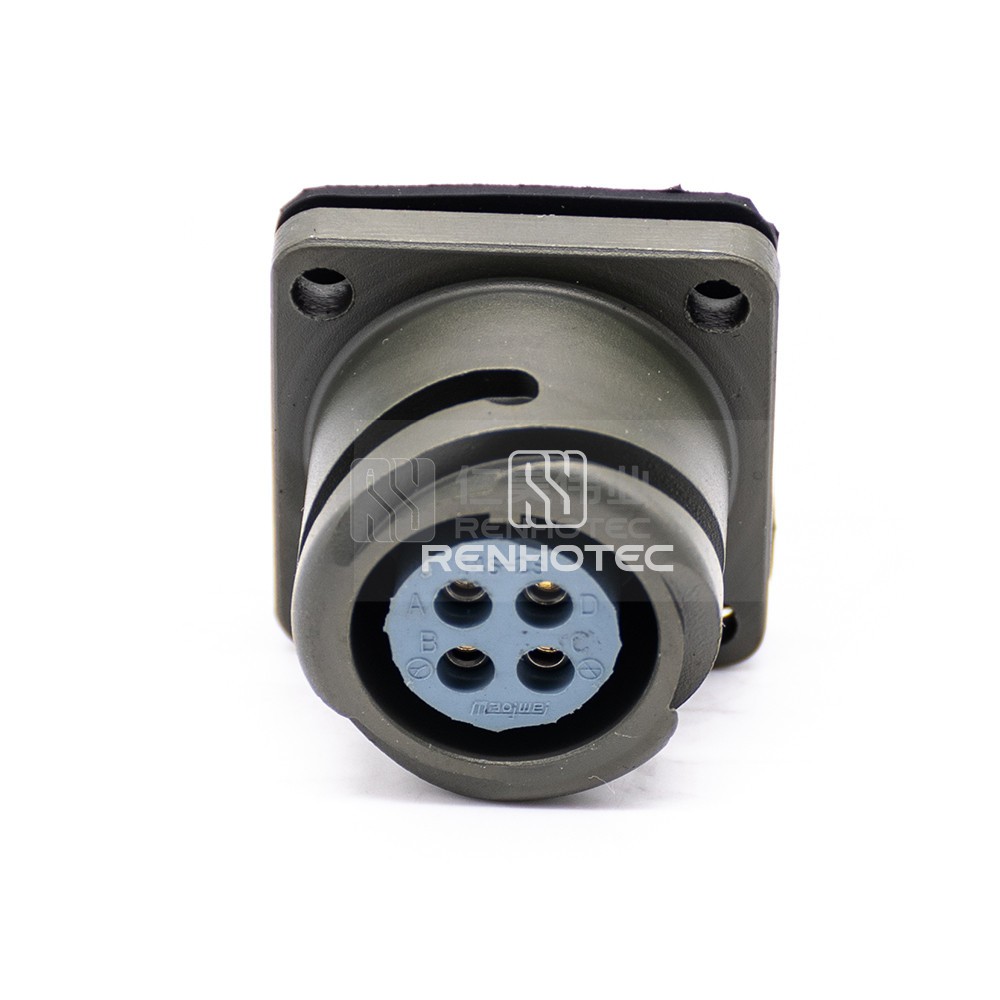

Bayonet Lock CA3102A14S-2S 4Pin Female Box Mounting Receptacle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality Bayonet Lock CA3102A14S-2S 4Pin Female Box Mounting Receptacle with solder cup terminals. Ideal for secure connections in industrial applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions4
    Contact Arrangements14S-2
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size14S

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
