Products > MIL Spec Connector > Bayonet Lock CA3102A16-12S 1Pin Female Box Mounting Receptacle Solder Cup

CA3102A16-12S

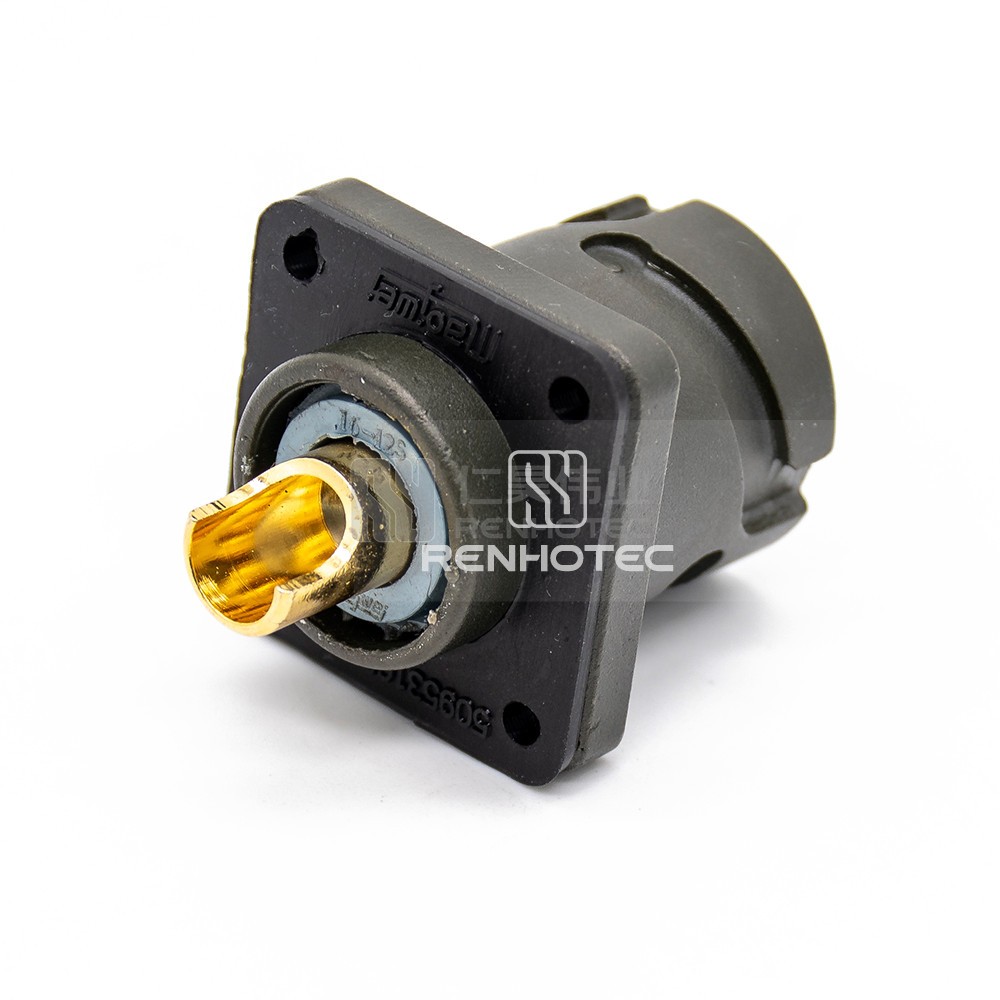

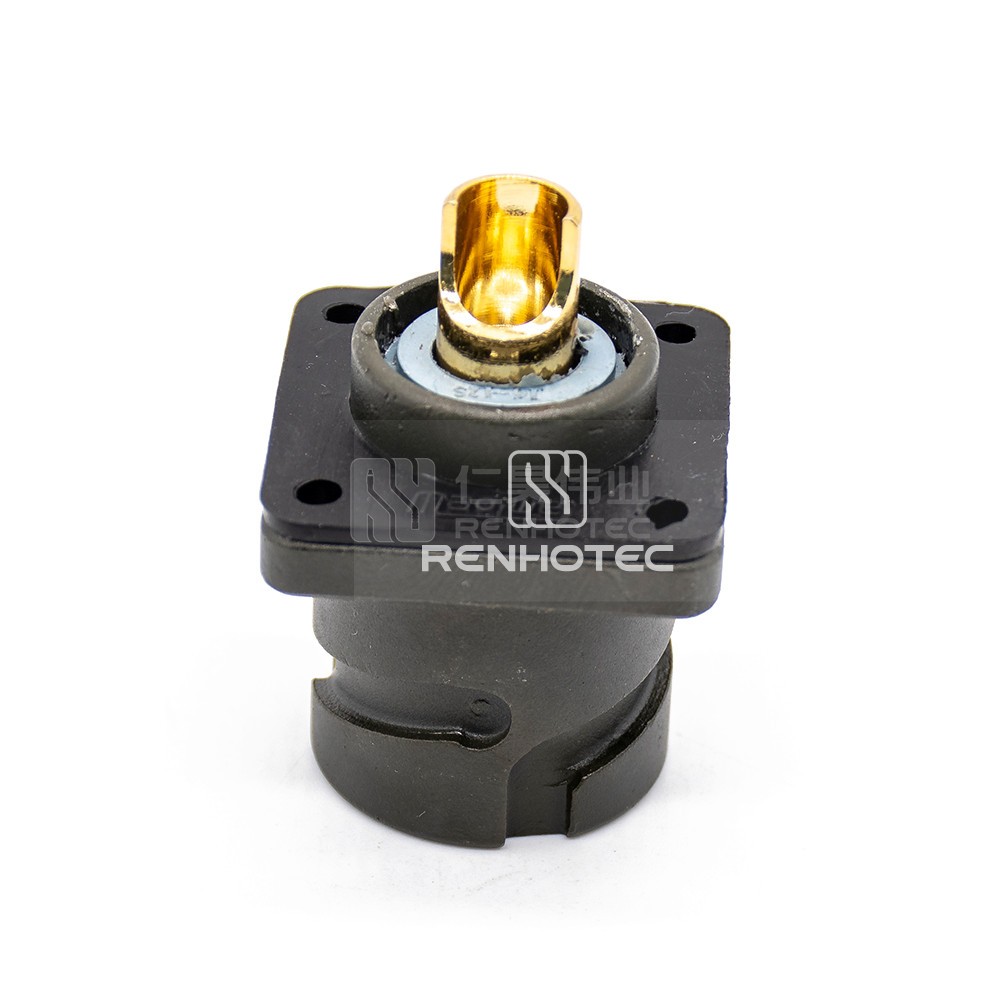

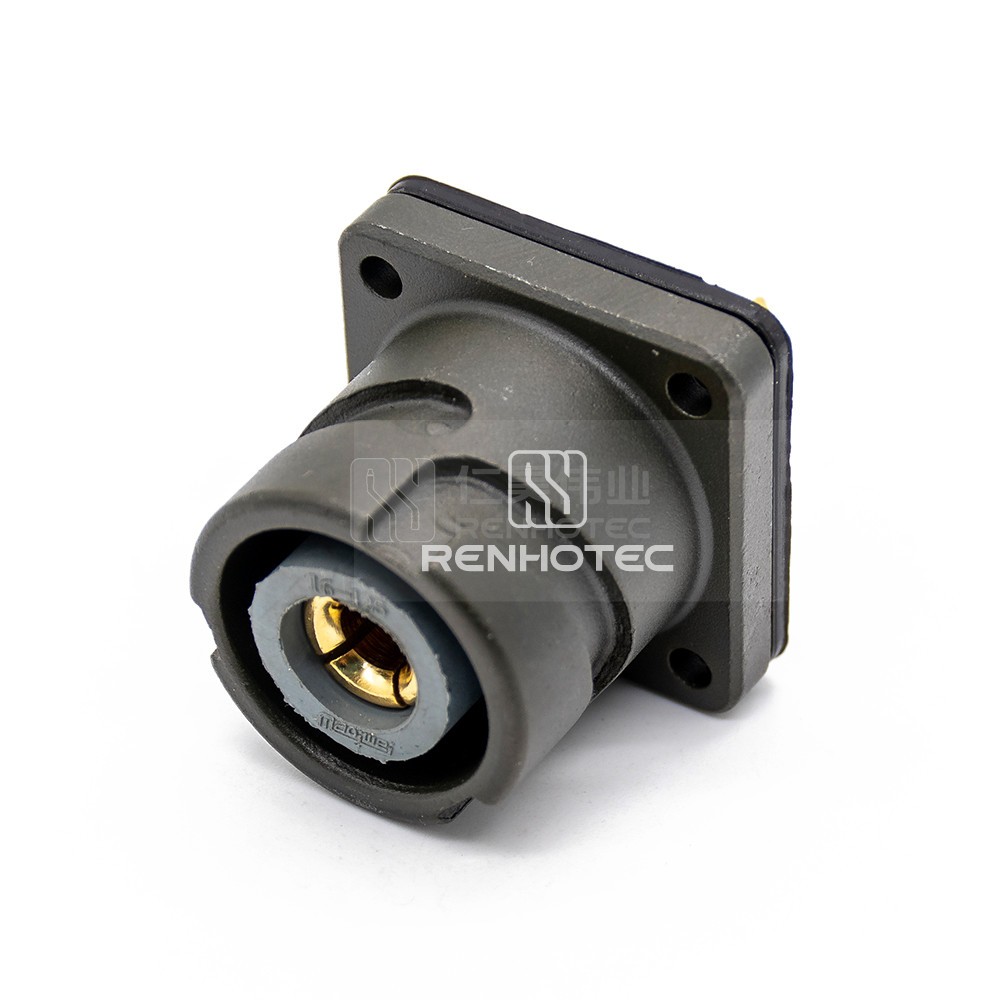

Bayonet Lock CA3102A16-12S 1Pin Female Box Mounting Receptacle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Securely mount and connect electronic components with this Bayonet Lock CA3102A16-12S 1Pin Female Box Mounting Receptacle featuring solder cup contacts for easy installation.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions1
    Contact Arrangements16-12
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size16

    Mechanical

    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Wire Gauge or Range6-4AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current80A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
