Products > MIL Spec Connector > Bayonet Lock CA3102A20-2S 1Pin Female Box Mounting Receptacle Solder Cup

CA3102A20-2S

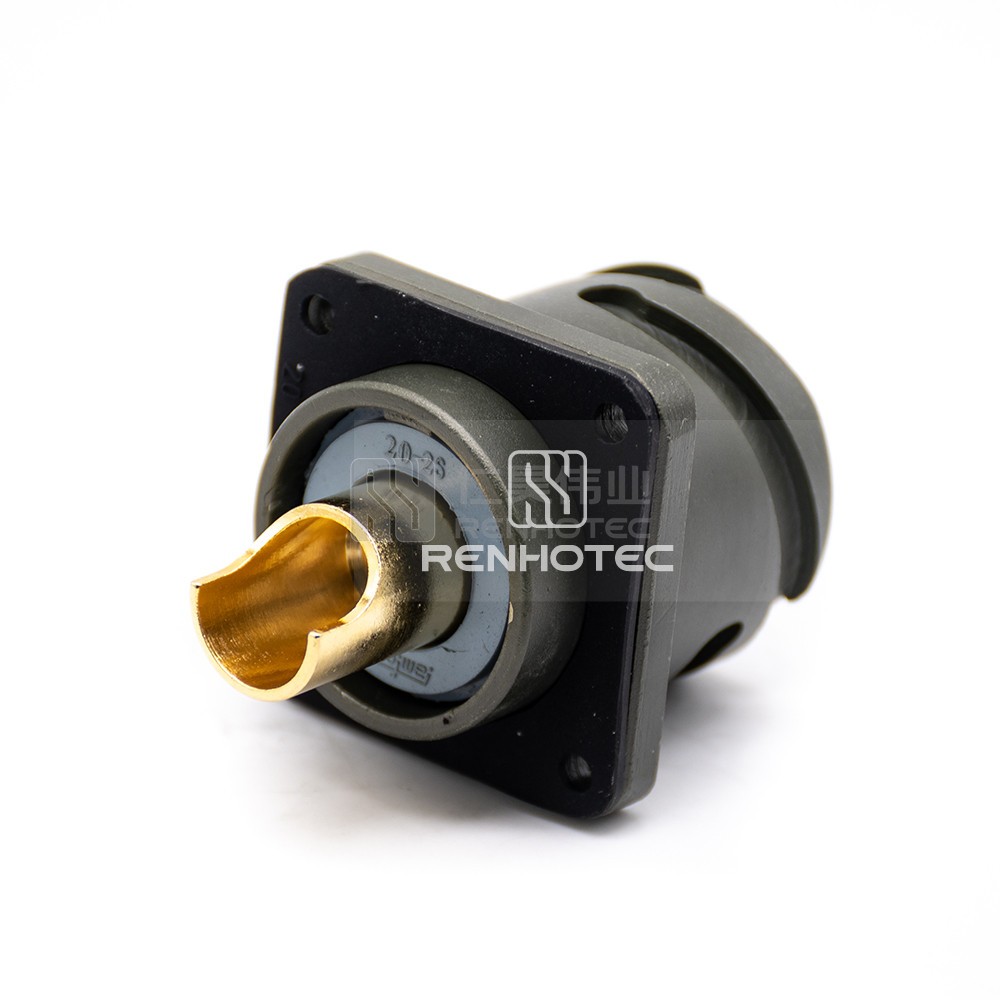

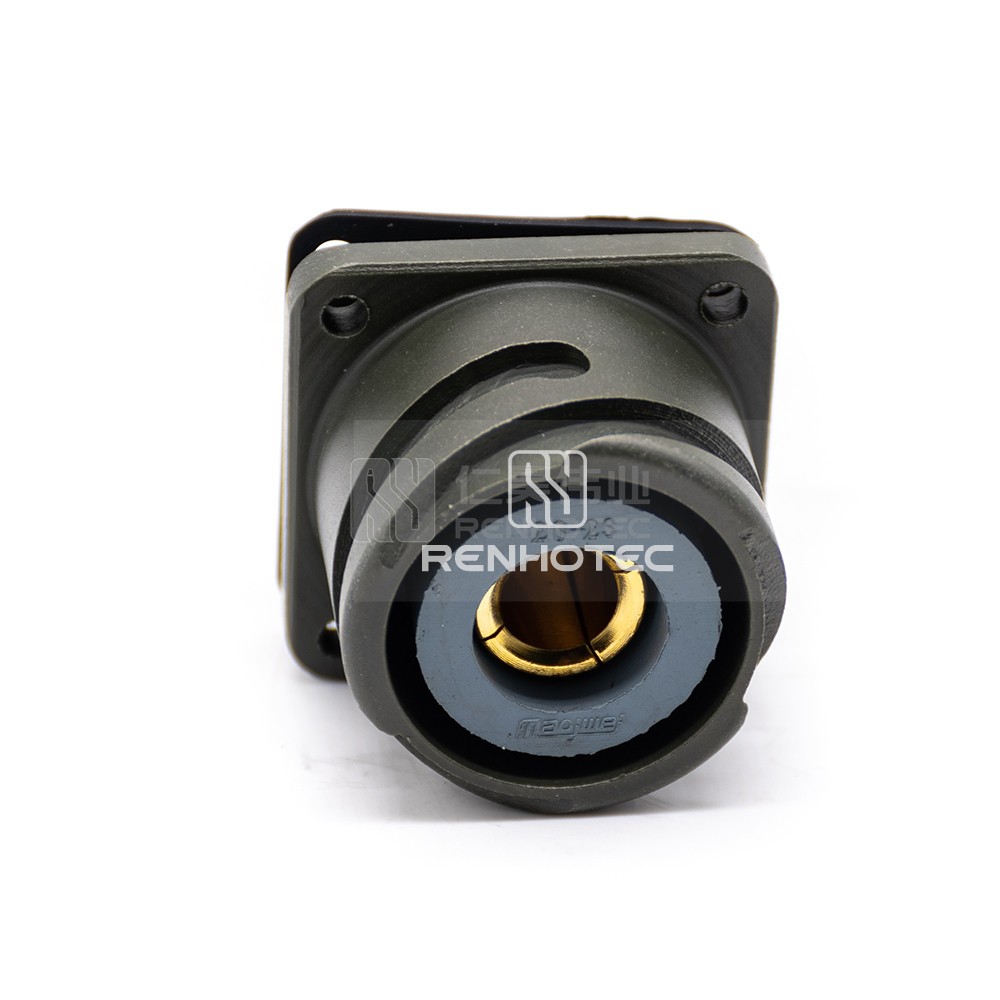

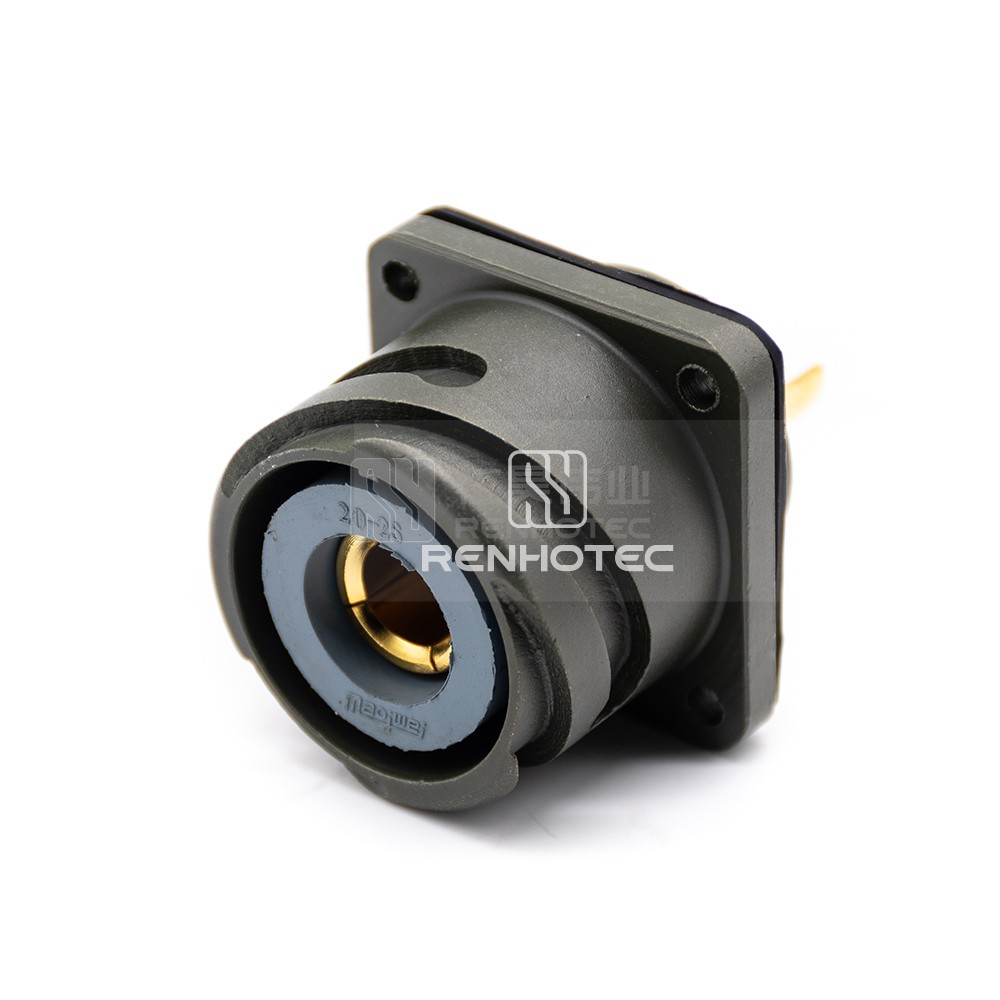

Bayonet Lock CA3102A20-2S 1Pin Female Box Mounting Receptacle Solder Cup

High-quality 1Pin female box mounting receptacle solder cup with bayonet lock mechanism. Securely mount and connect electrical components with this reliable and durable receptacle. Ideal for various industrial applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions1
    Contact Arrangements20-2
    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size20

    Mechanical

    Wire Gauge or Range2-0AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current120A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    MS5015 Test Report Download
