CA3102A22-22P

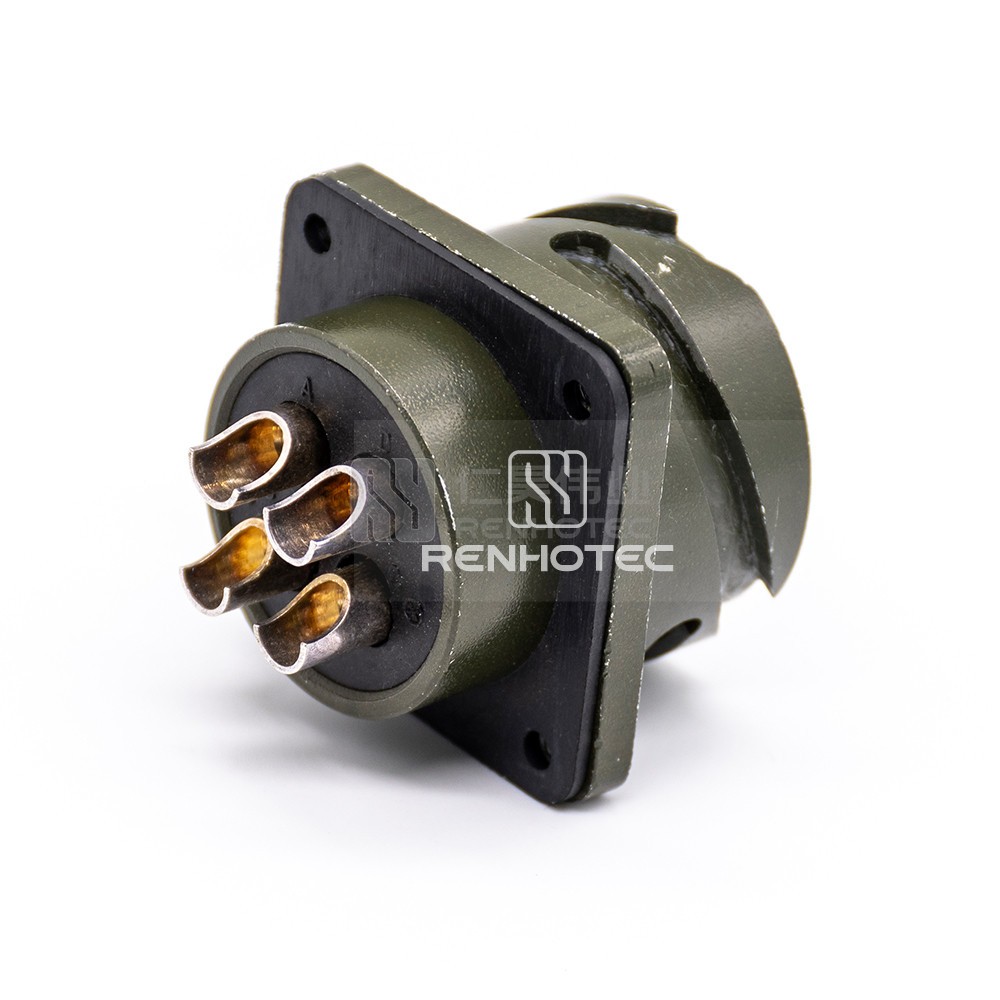

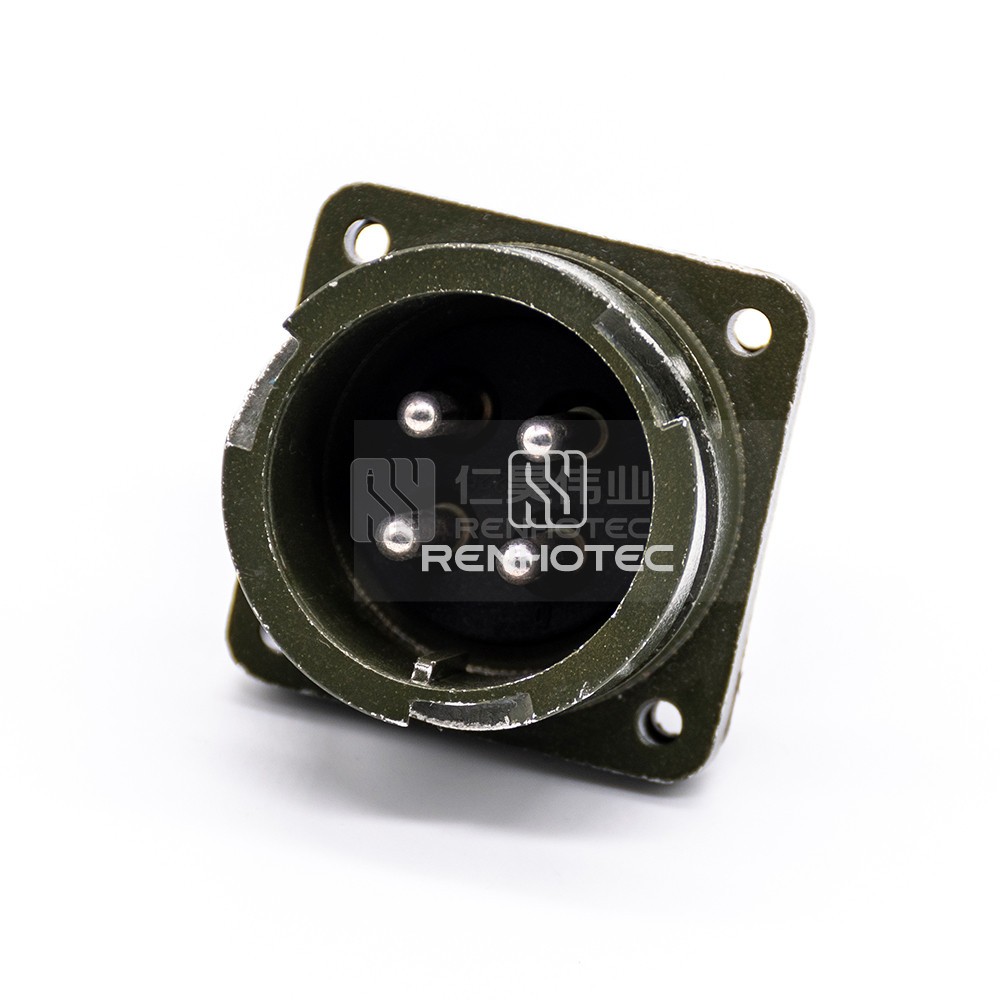

Bayonet Lock CA3102A22-22P 4Pin Male Box Mounting Receptacle Solder Cup

Buy Bayonet Lock CA3102A22-22P 4Pin Male Box Mounting Receptacle Solder Cup. This receptacle is designed for secure and reliable connections in electronic applications. Easy to mount and solder, ideal for various projects.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions4
    Contact Arrangements22-22
    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size22

    Mechanical

    Wire Gauge or Range10-8AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishSilver

    Electrical

    ShieldingUnshielded
    Rated Current50A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
