CA3102A28-6S

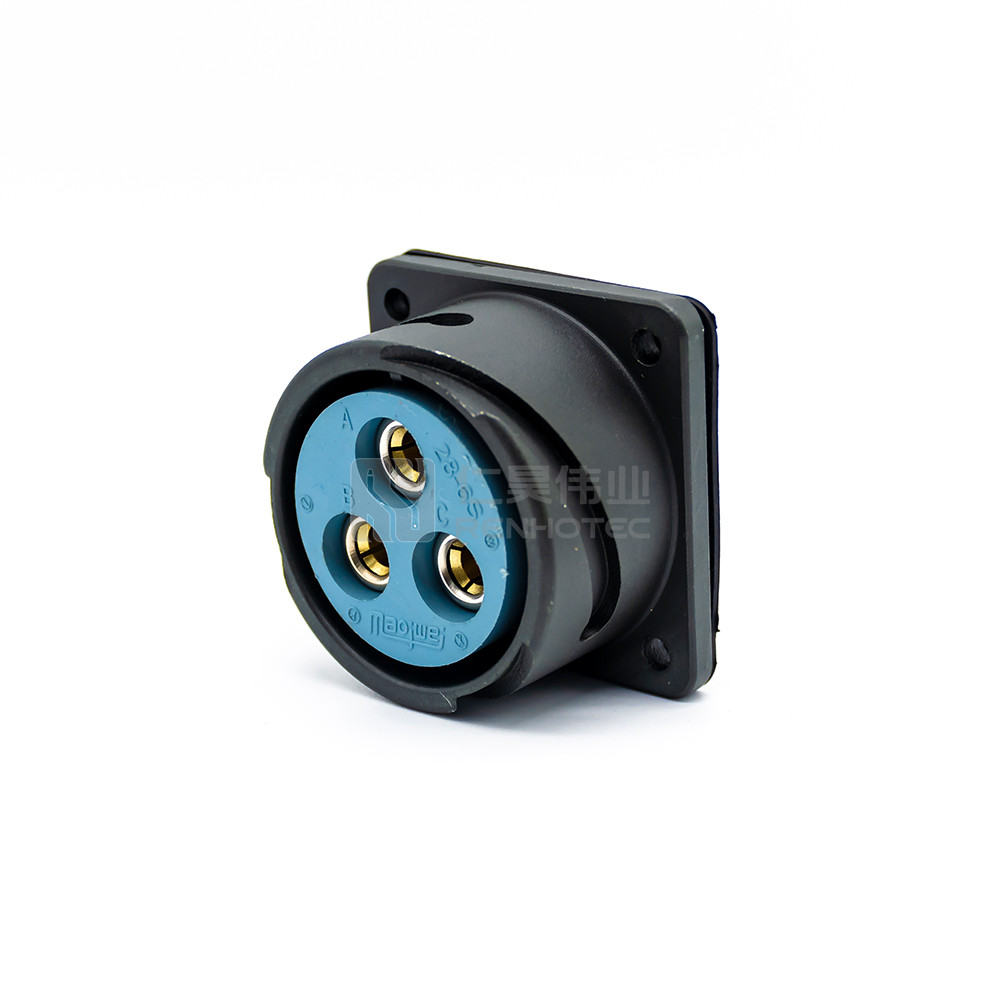

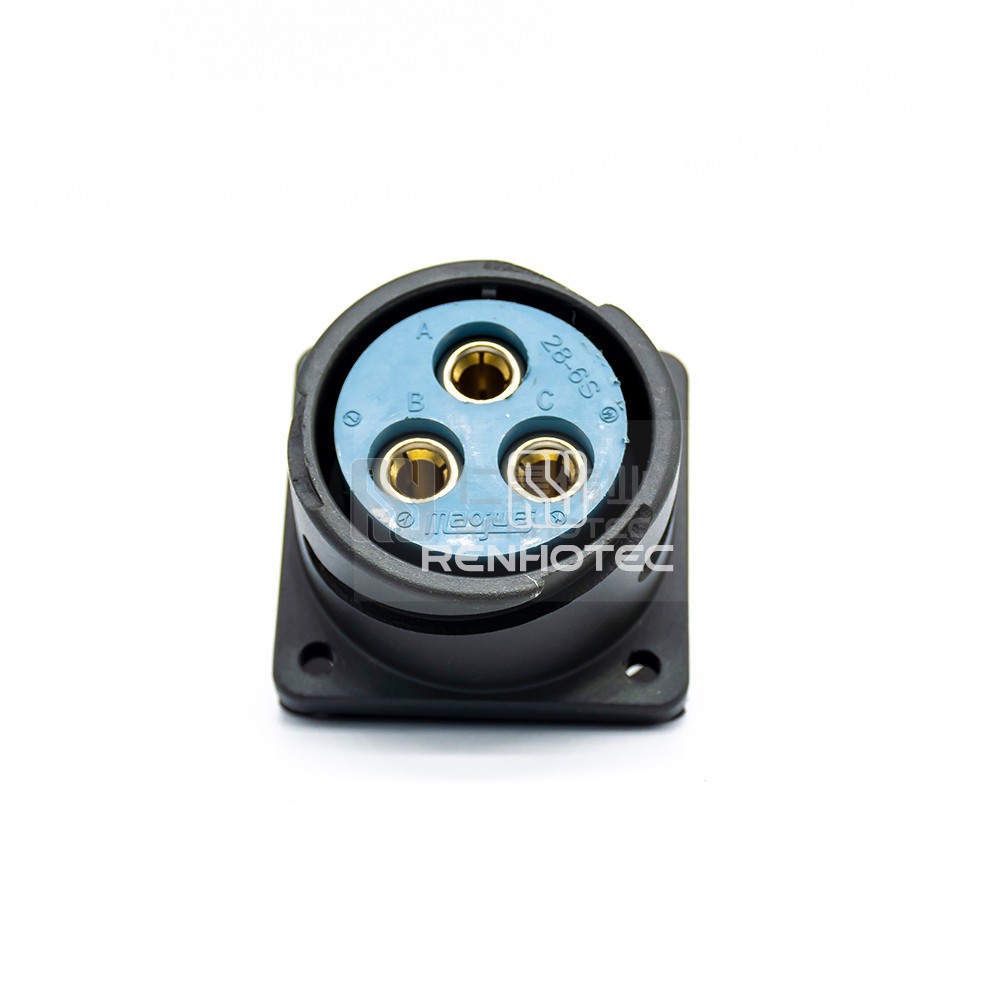

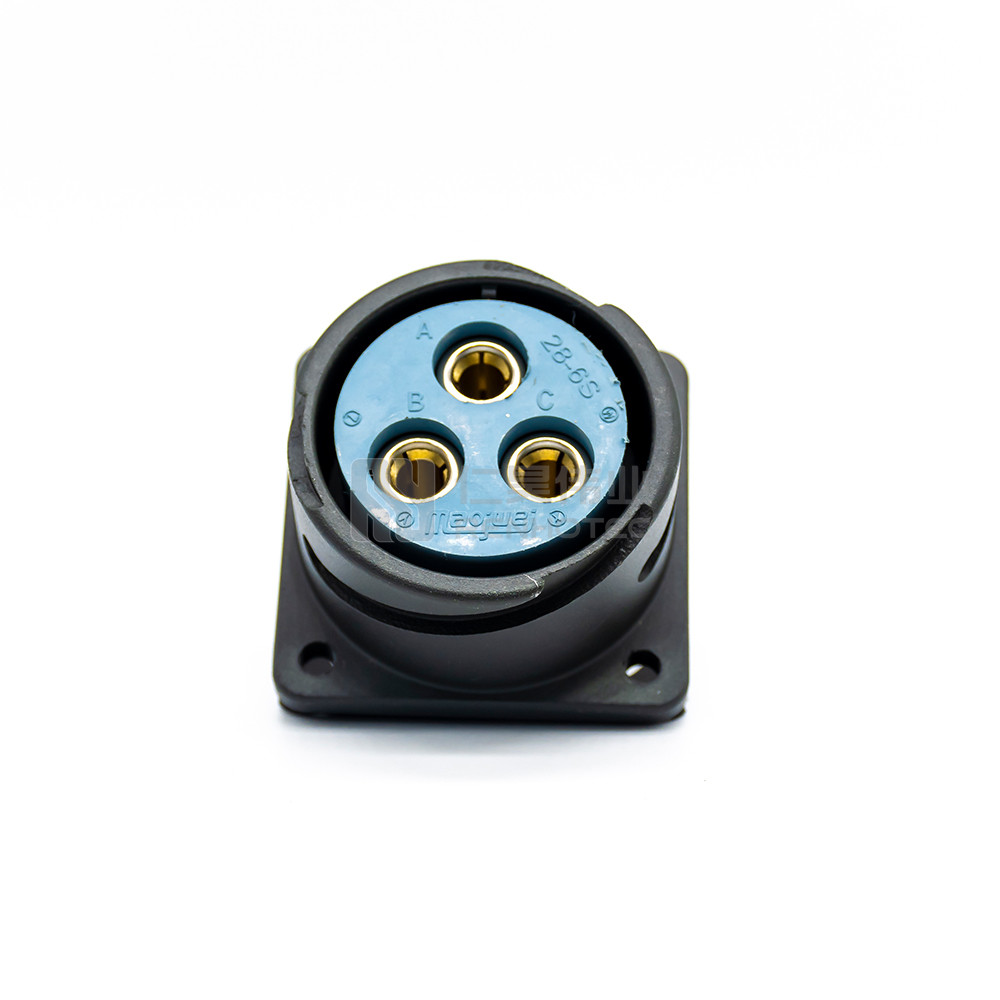

Bayonet Lock CA3102A28-6S 3Pin Female Box Mounting Receptacle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality 3-pin female box mounting receptacle with solder cup connections and bayonet lock mechanism. Designed for secure and reliable electrical connections in various applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions3
    Contact Arrangements28-6

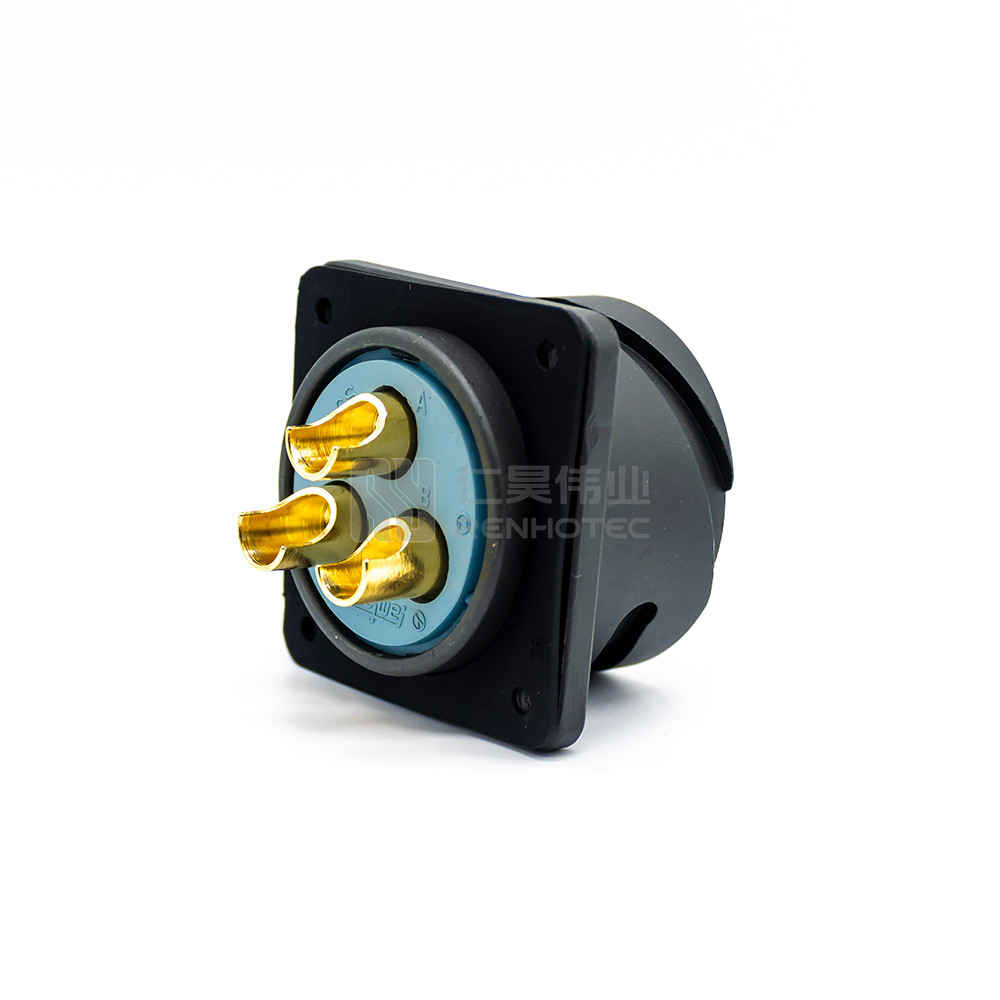

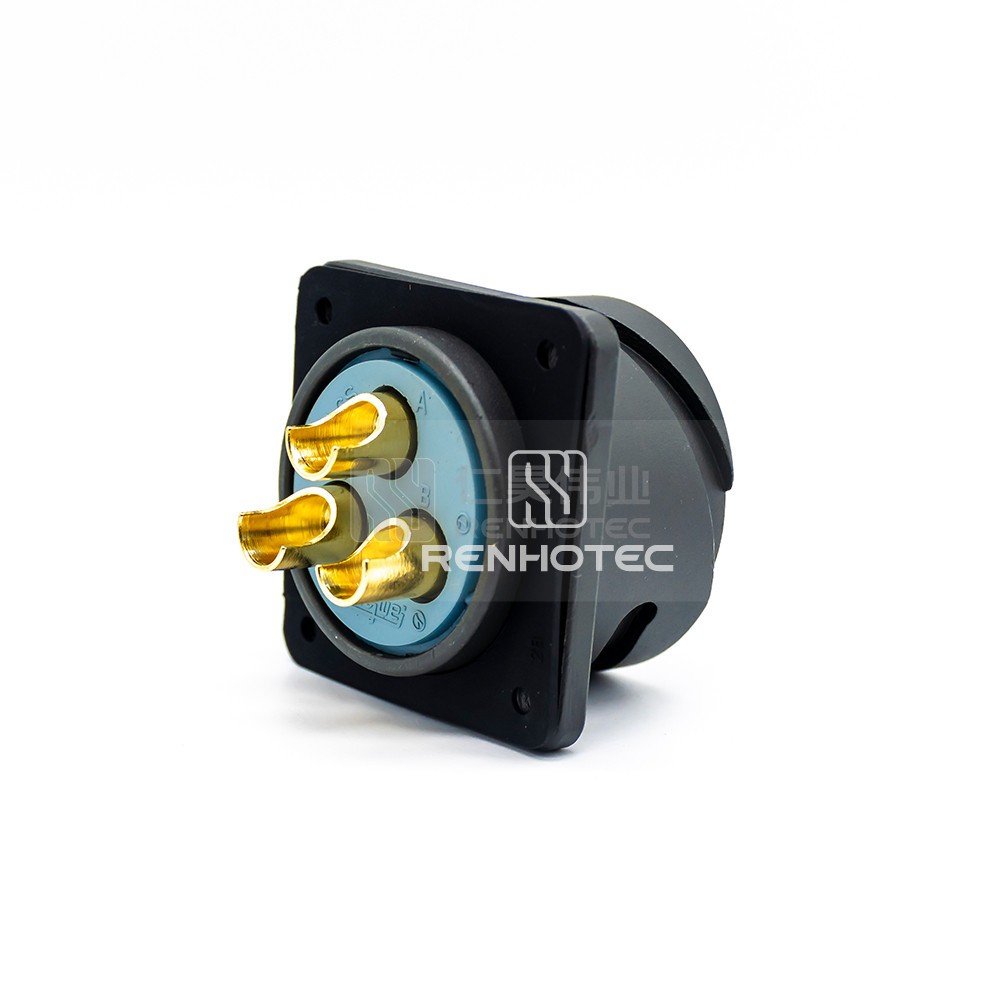

    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size28

    Mechanical

    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Wire Gauge or Range6-4AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current80A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
