Products > MIL Spec Connector > Bayonet Lock CA3102A32-5P 2Pin Male Box Mounting Receptacle Solder Cup

CA3102A32-5P

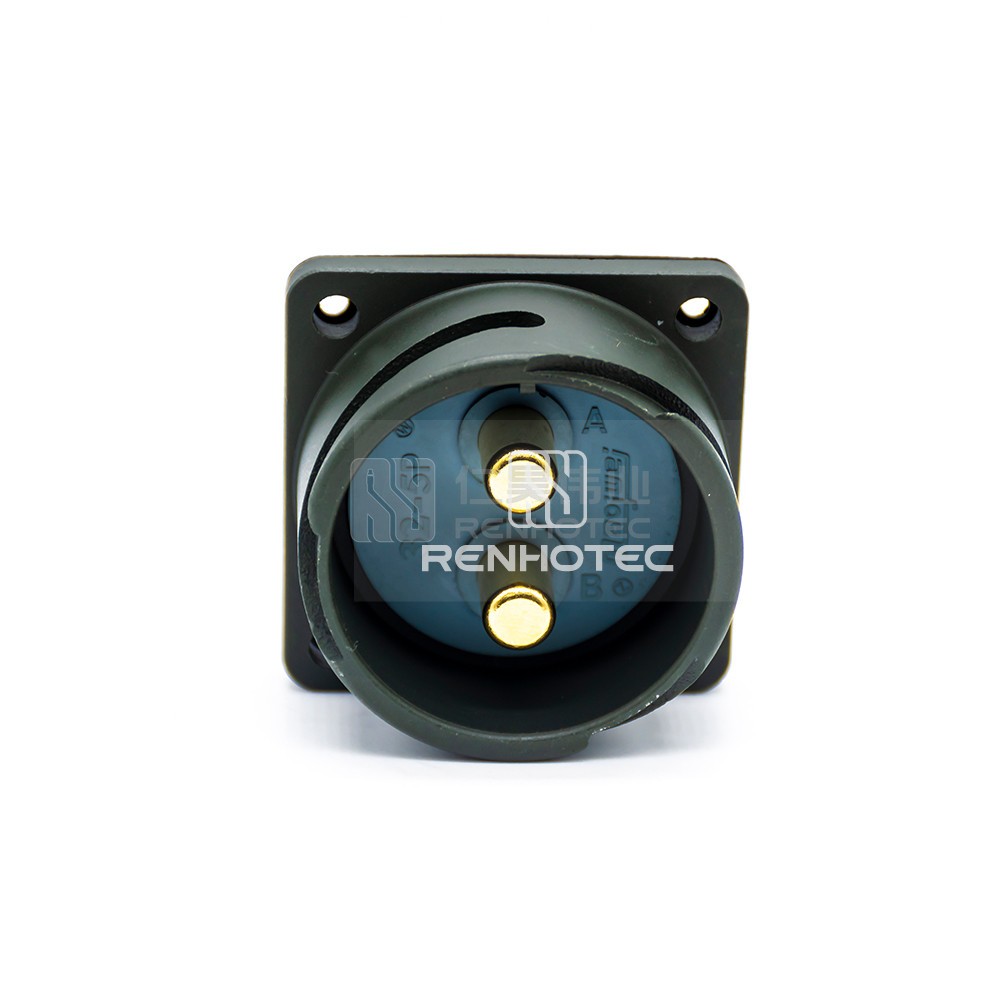

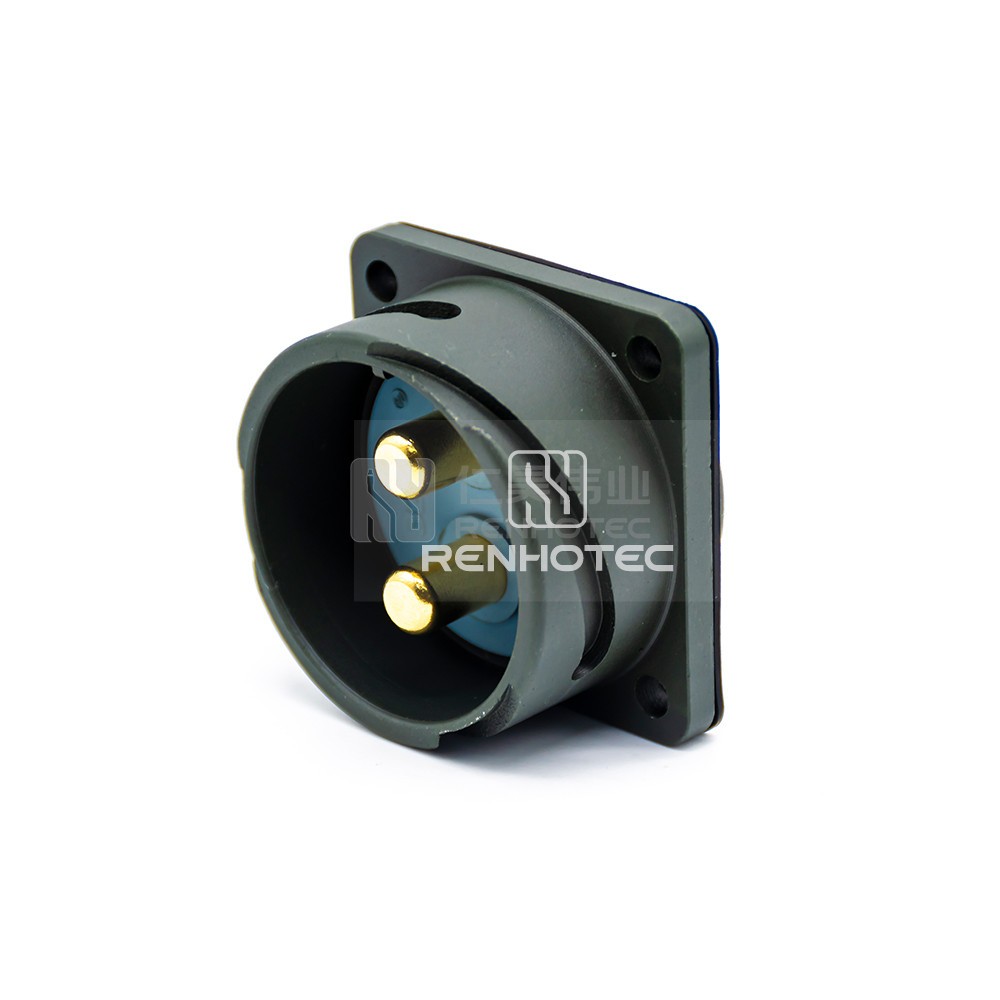

Bayonet Lock CA3102A32-5P 2Pin Male Box Mounting Receptacle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality Bayonet Lock CA3102A32-5P 2Pin Male Box Mounting Receptacle Solder Cup for secure connections. Ideal for various electrical applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions2
    Contact Arrangements32-5

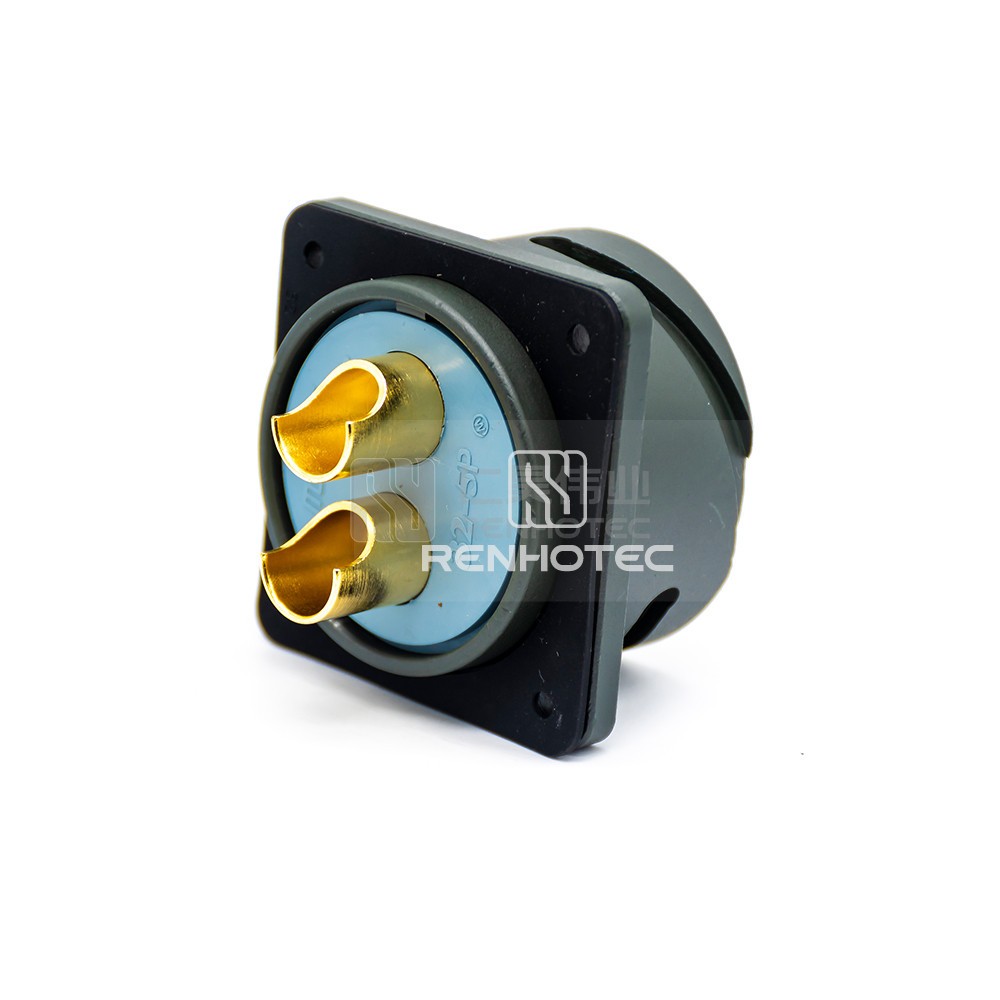

    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size32

    Mechanical

    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Wire Gauge or Range2-0AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current120A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
