Products > MIL Spec Connector > Bayonet Lock CA3106A10SL-3P 3Pin Male Straight Plug Solder Cup

CA3106A10SL-3P

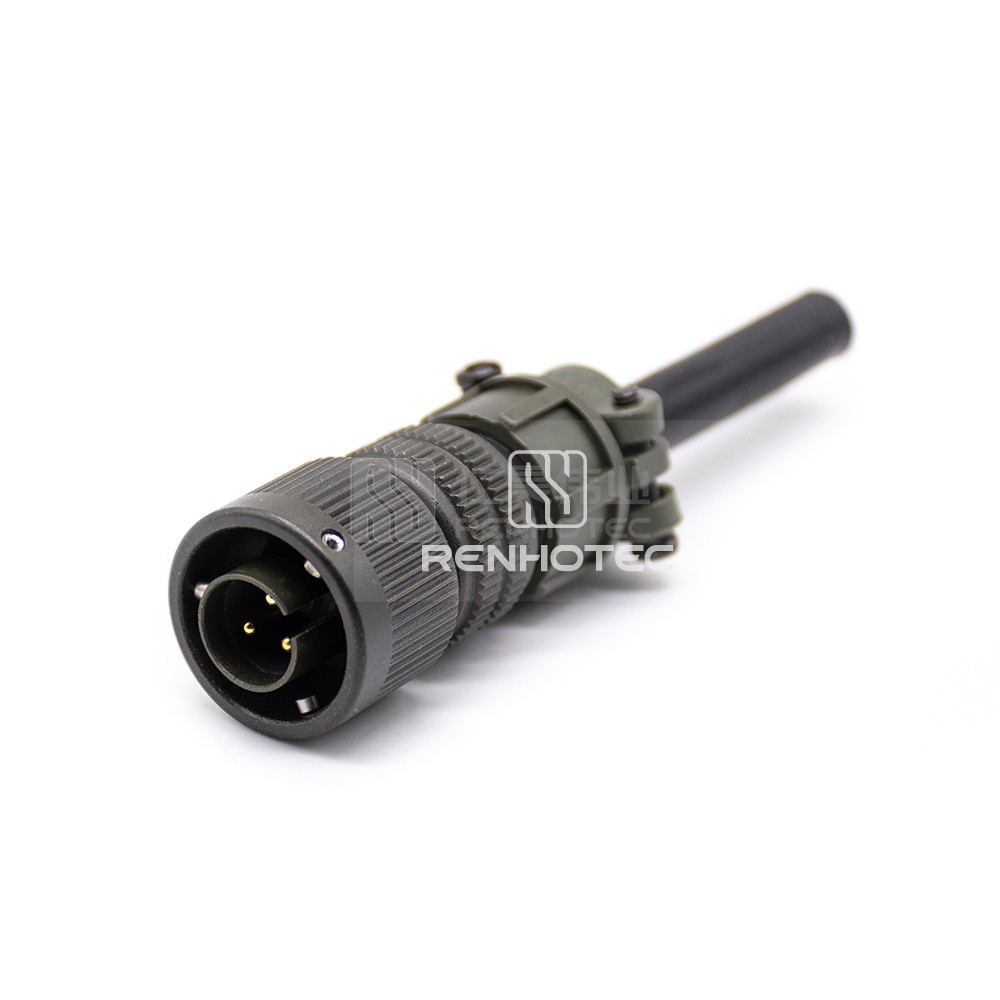

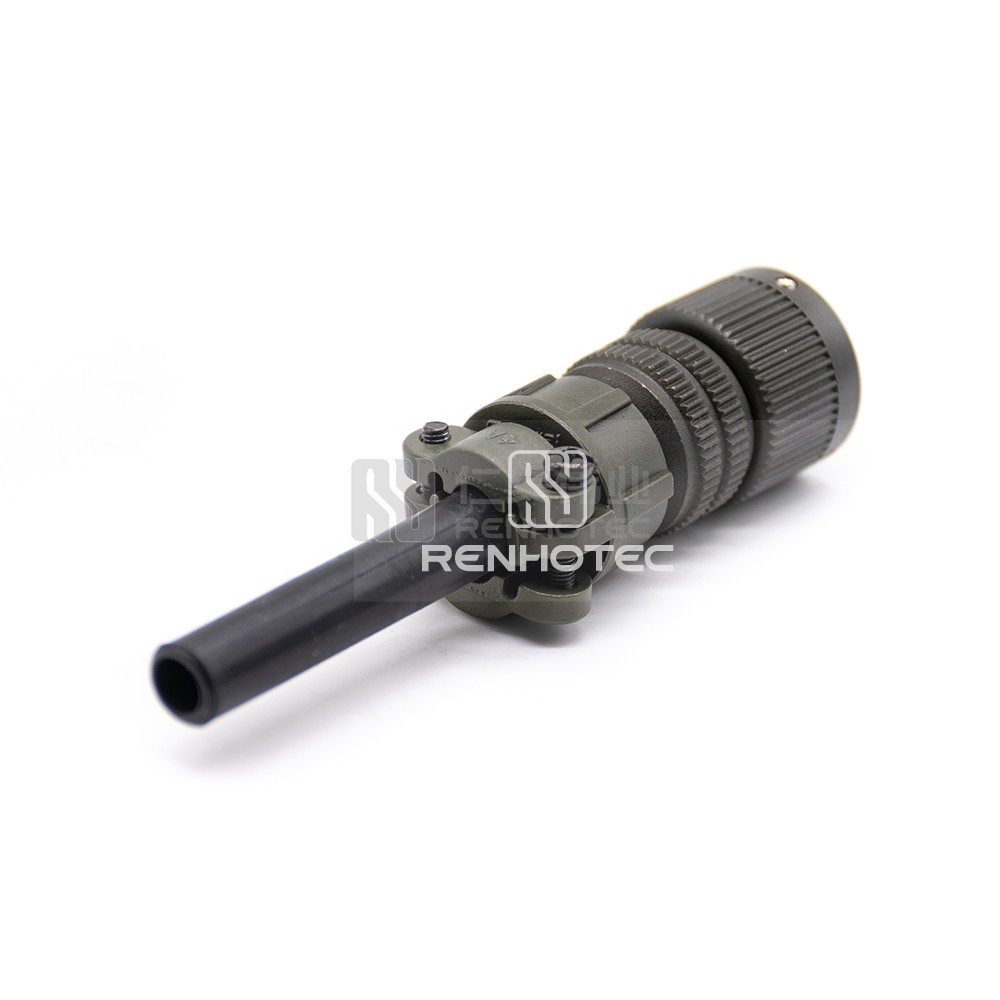

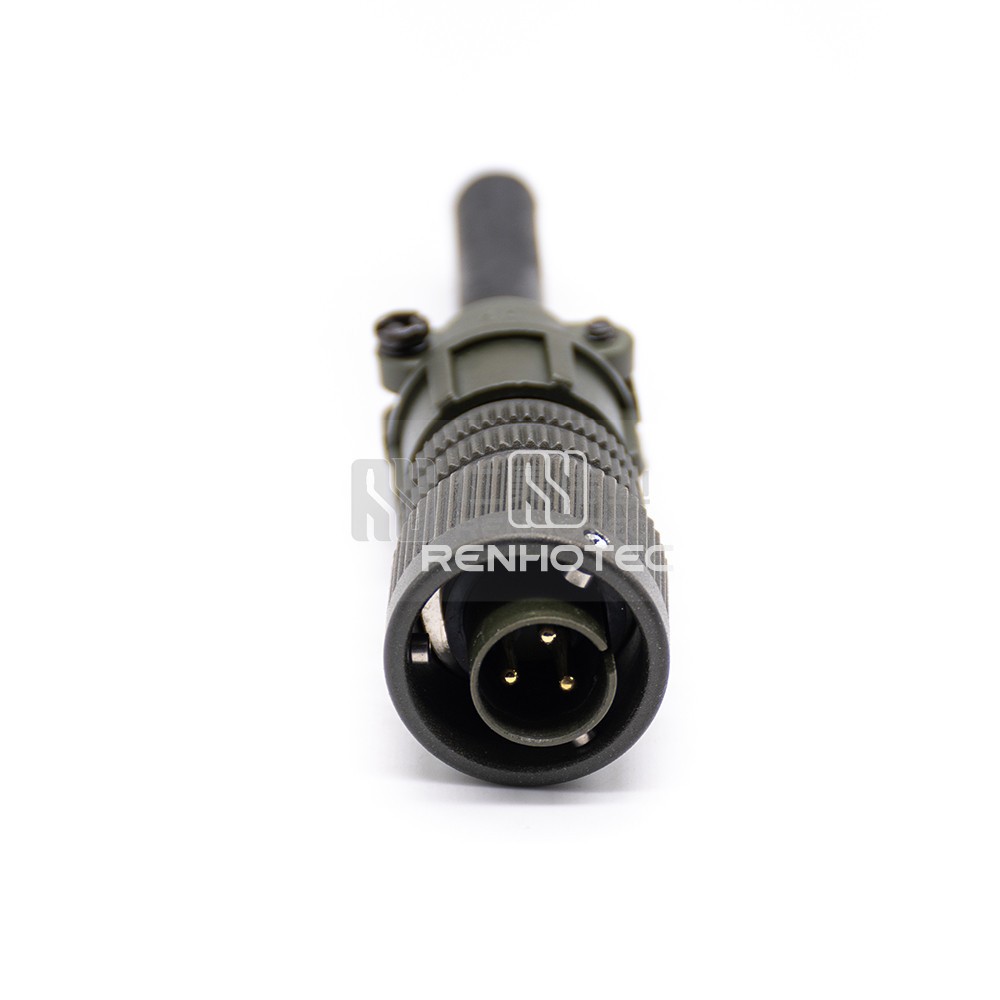

Bayonet Lock CA3106A10SL-3P 3Pin Male Straight Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Securely connect wires with this Bayonet Lock CA3106A10SL-3P 3Pin Male Straight Plug featuring solder cup connections. Ideal for industrial applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions3
    Contact Arrangements10SL-3
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size10SL

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-55°C ~ + 125°C

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V
