Products > MIL Spec Connector > Bayonet Lock CA3106A10SL-4S 2Pin Female Straight Plug Solder Cup

CA3106A10SL-4S

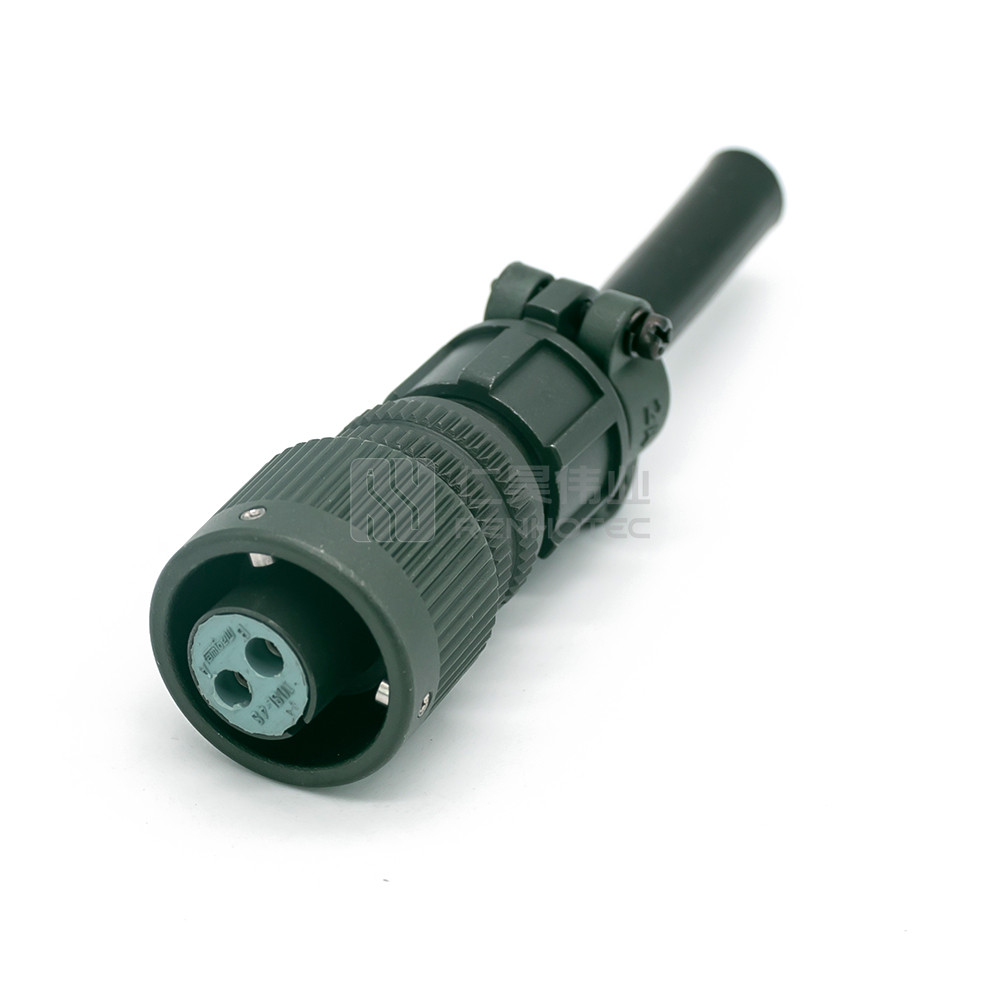

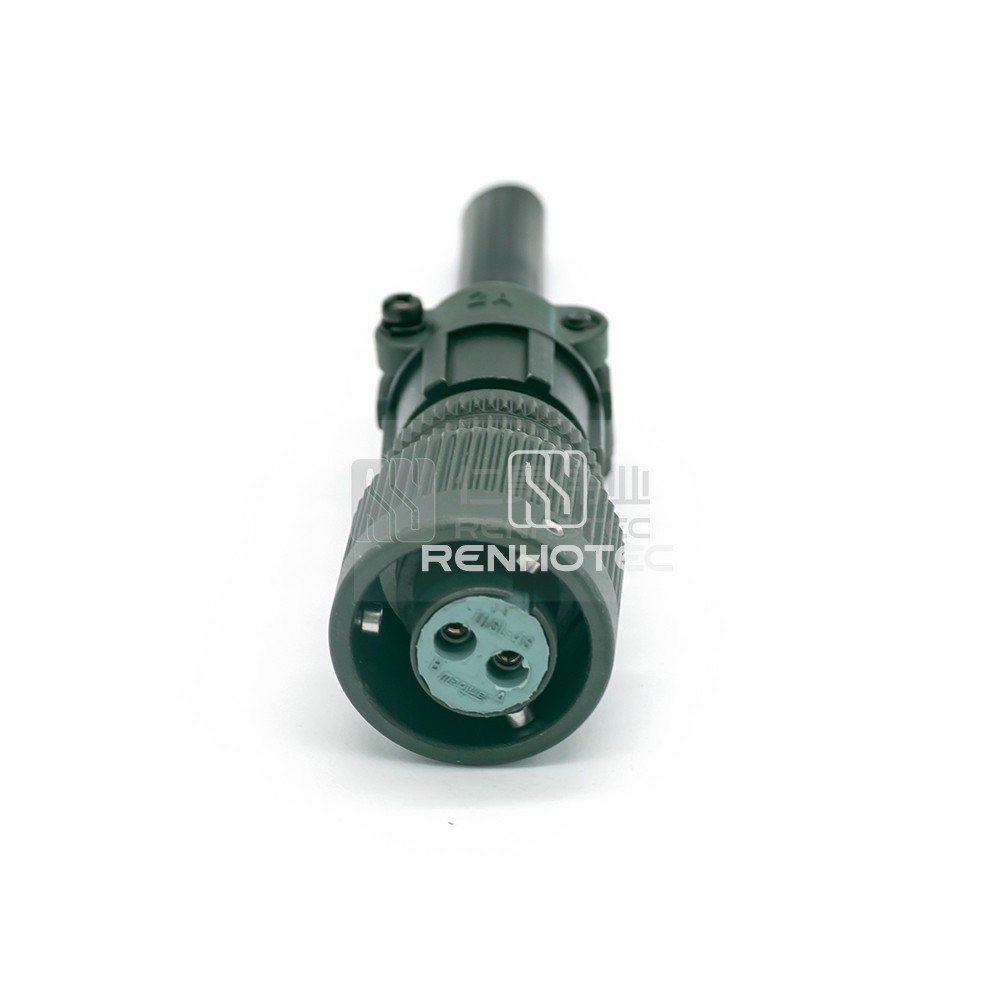

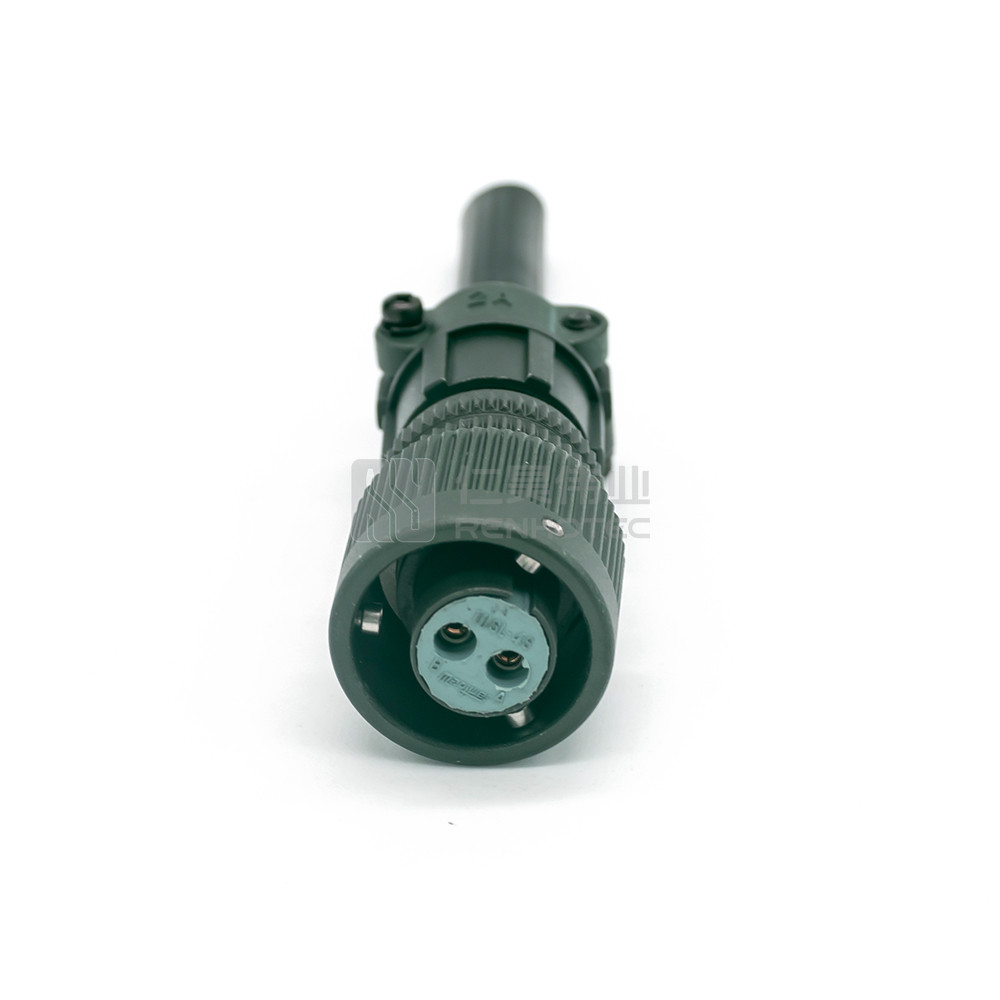

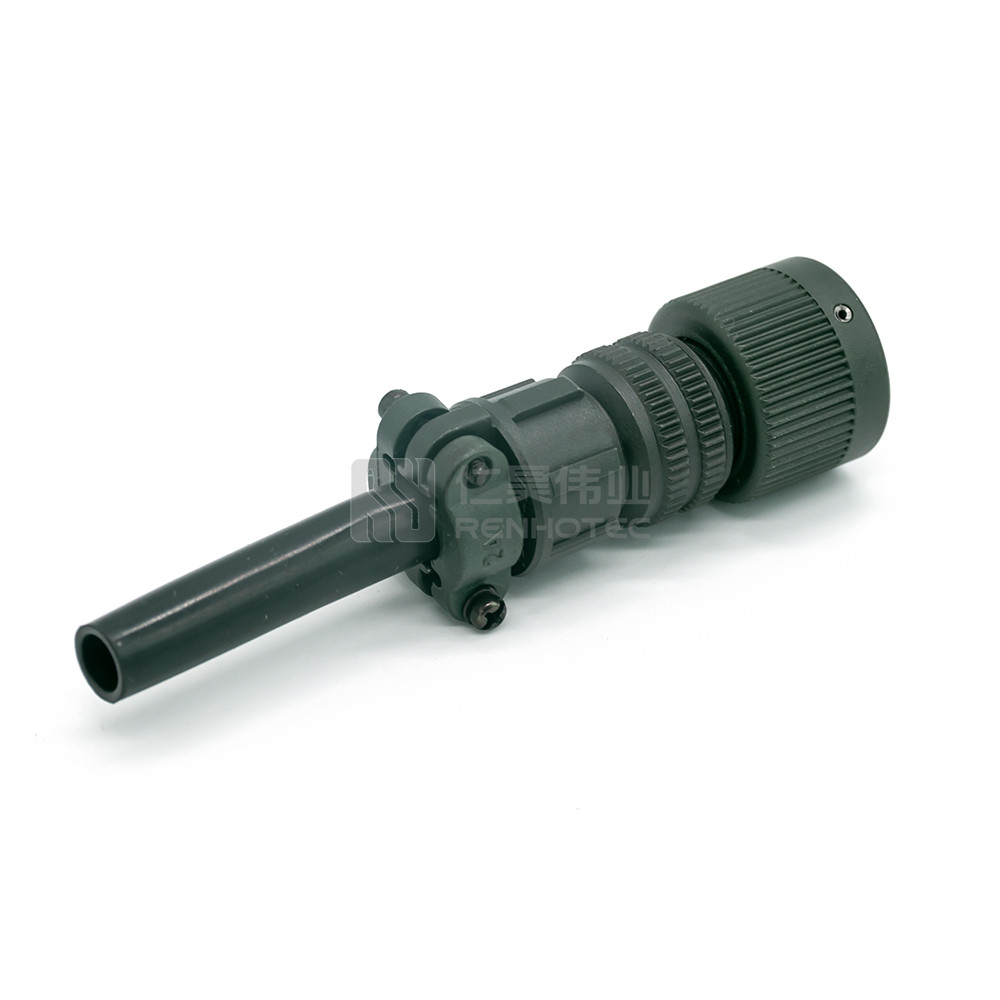

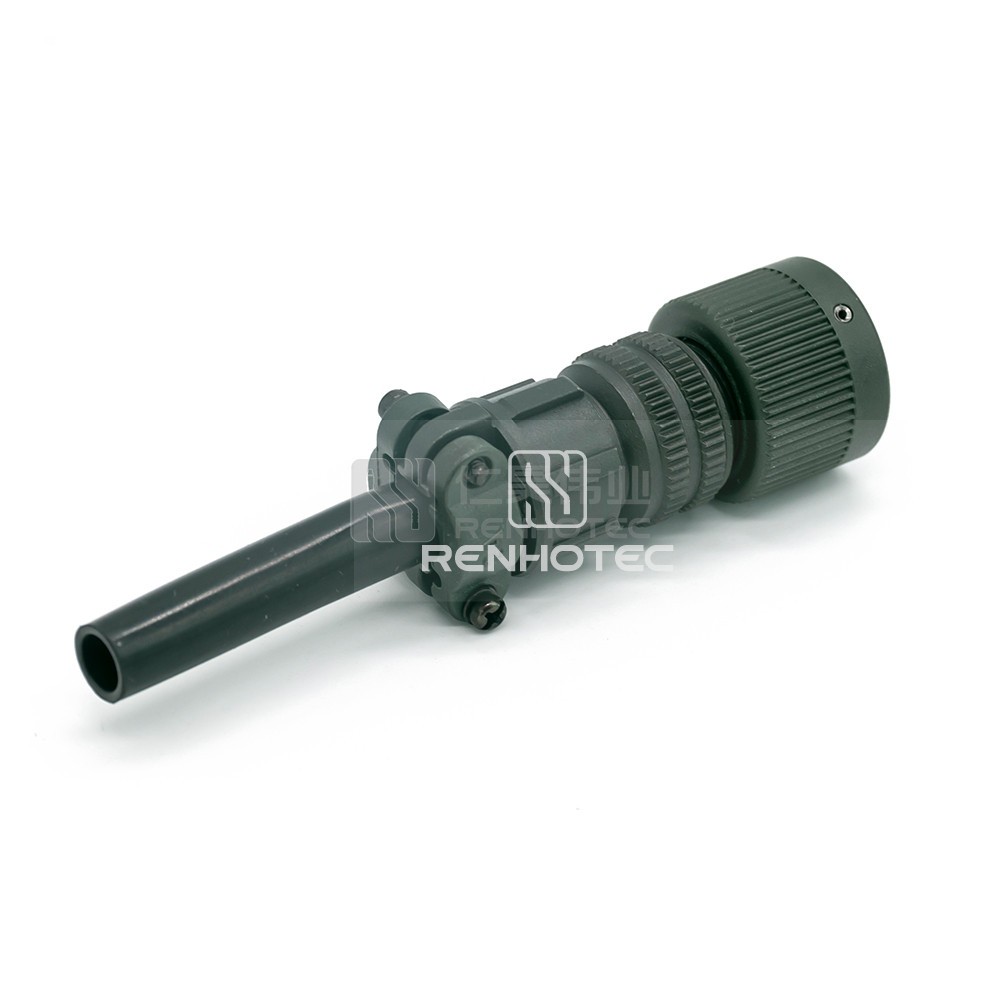

Bayonet Lock CA3106A10SL-4S 2Pin Female Straight Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality 2-pin female straight plug solder cup with bayonet lock feature. Compatible with CA3106A10SL-4S connector. Ideal for secure and reliable connections in various electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions2
    Contact Arrangements10SL-4
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size10SL

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
