Products > MIL Spec Connector > Bayonet Lock CA3106A14S-6P 6Pin Male Straight Plug Solder Cup

CA3106A14S-6P

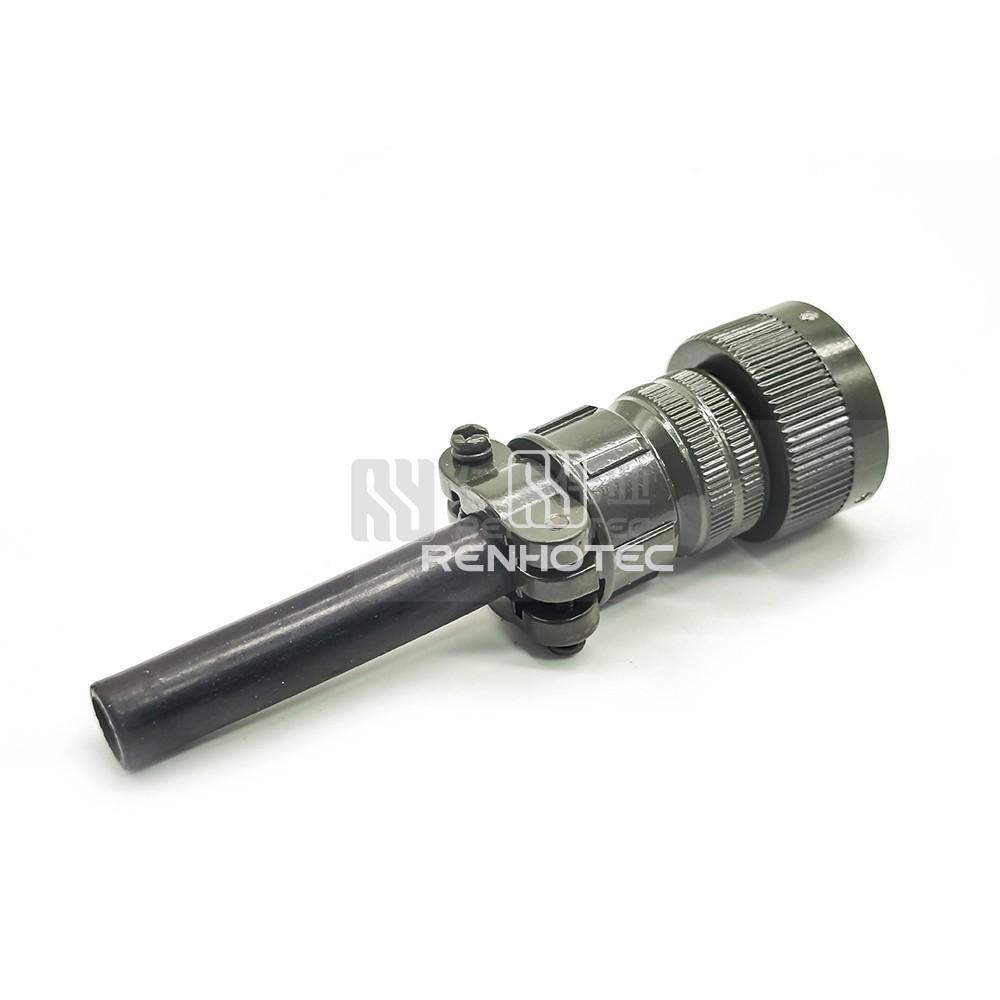

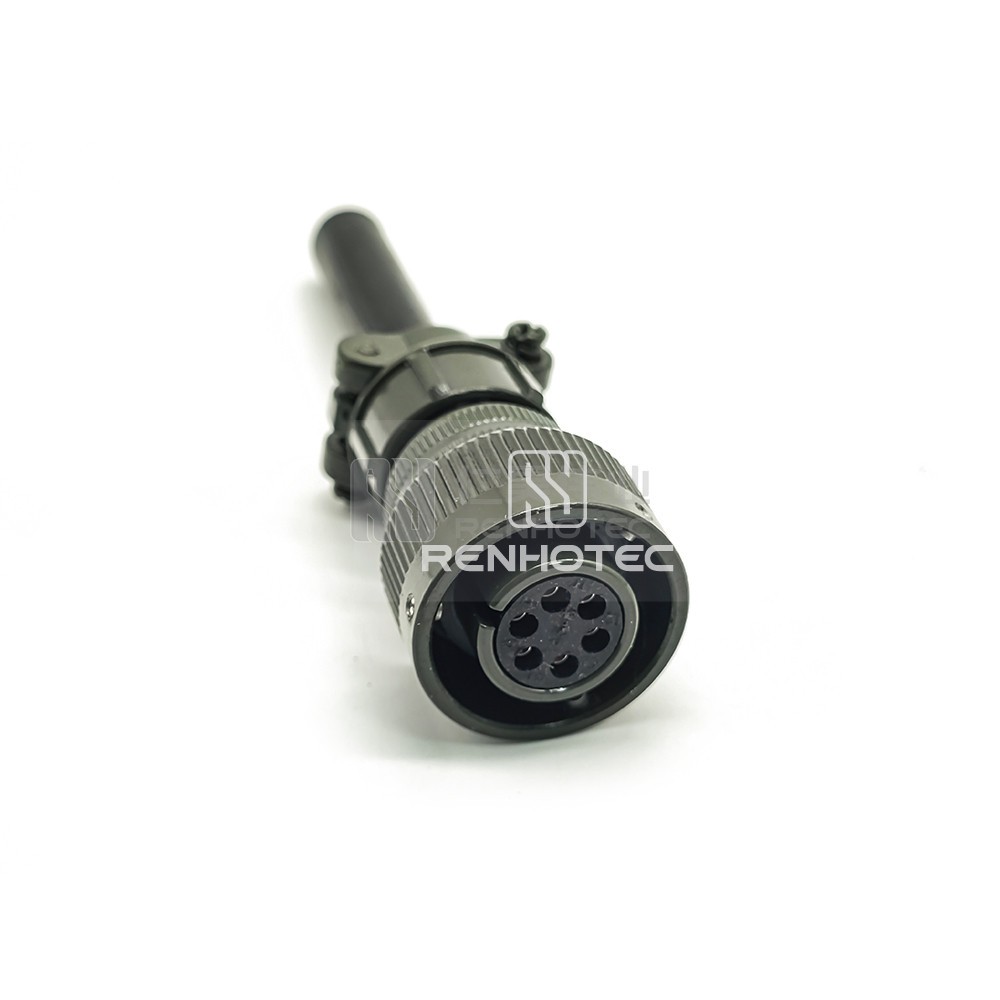

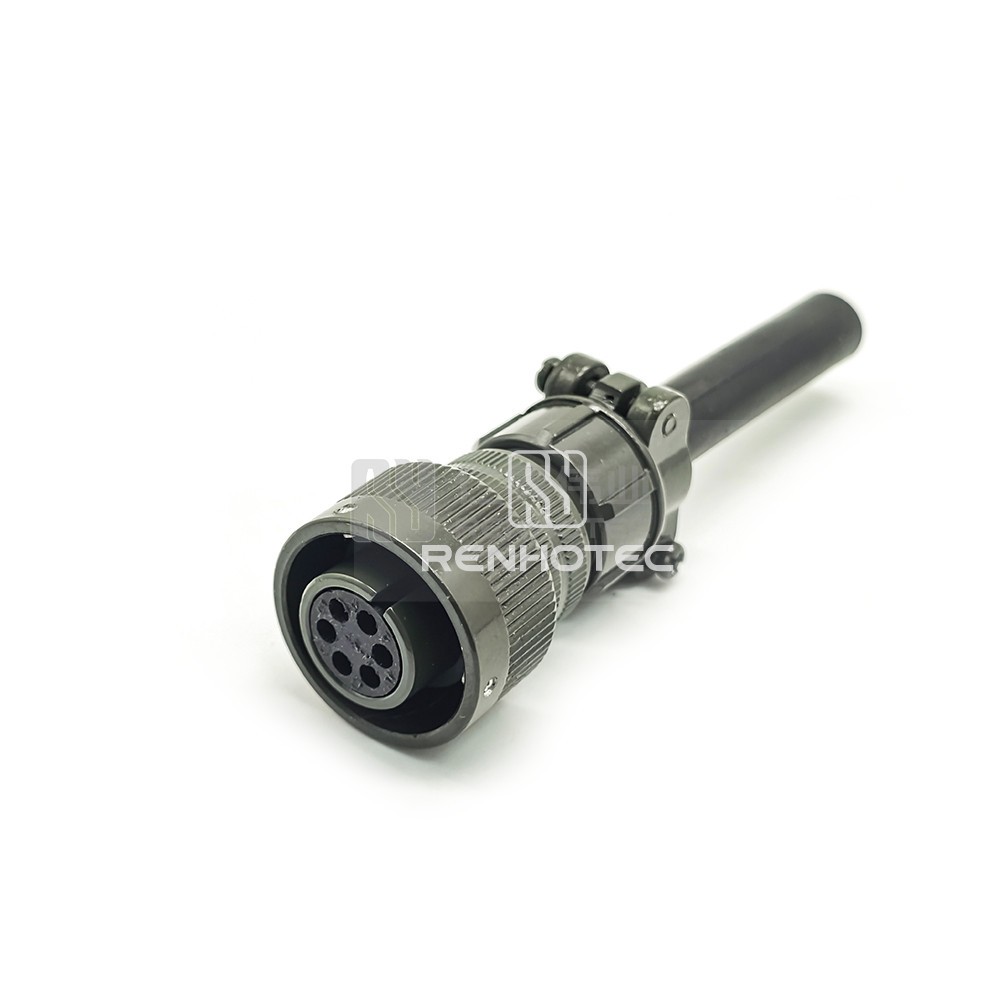

Bayonet Lock CA3106A14S-6P 6Pin Male Straight Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    High-quality 6-pin male straight plug solder cup with bayonet lock design. Suitable for various electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions6
    Contact Arrangements14S-6
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size14S

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-55°C ~ + 125°C

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V
