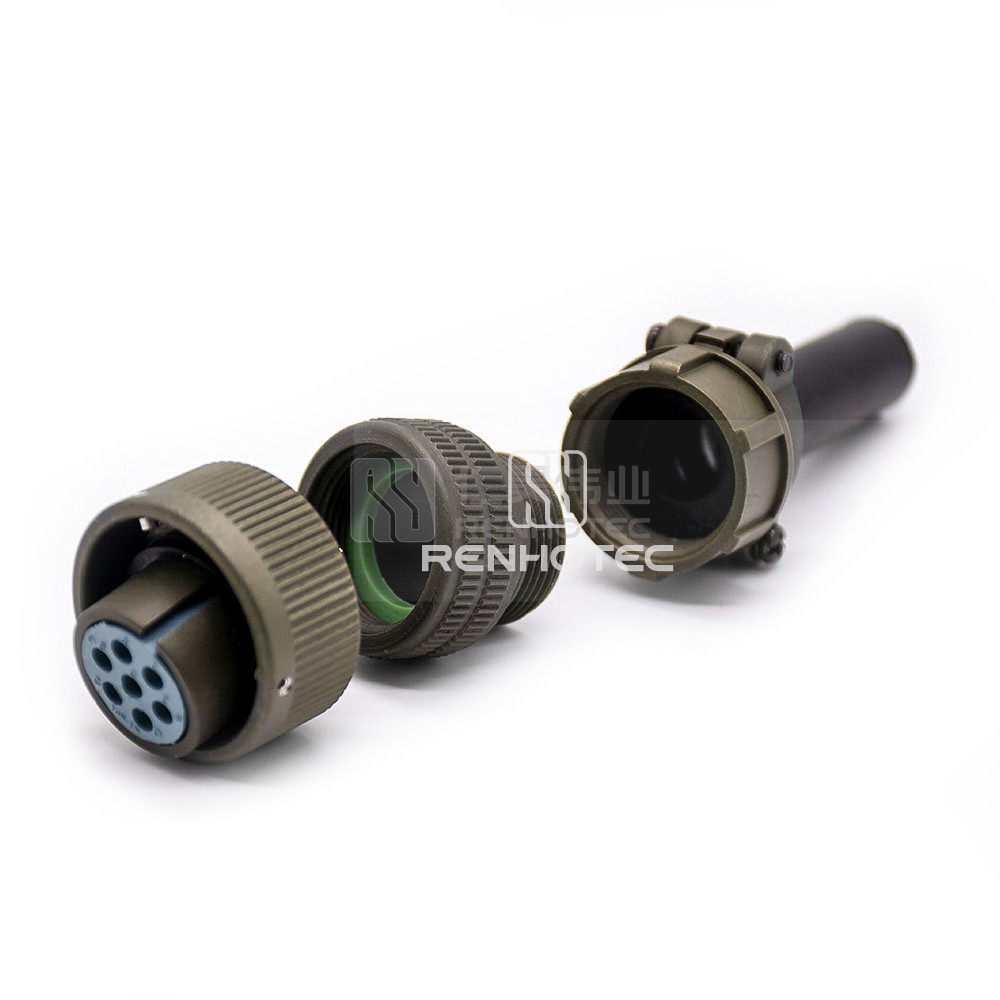

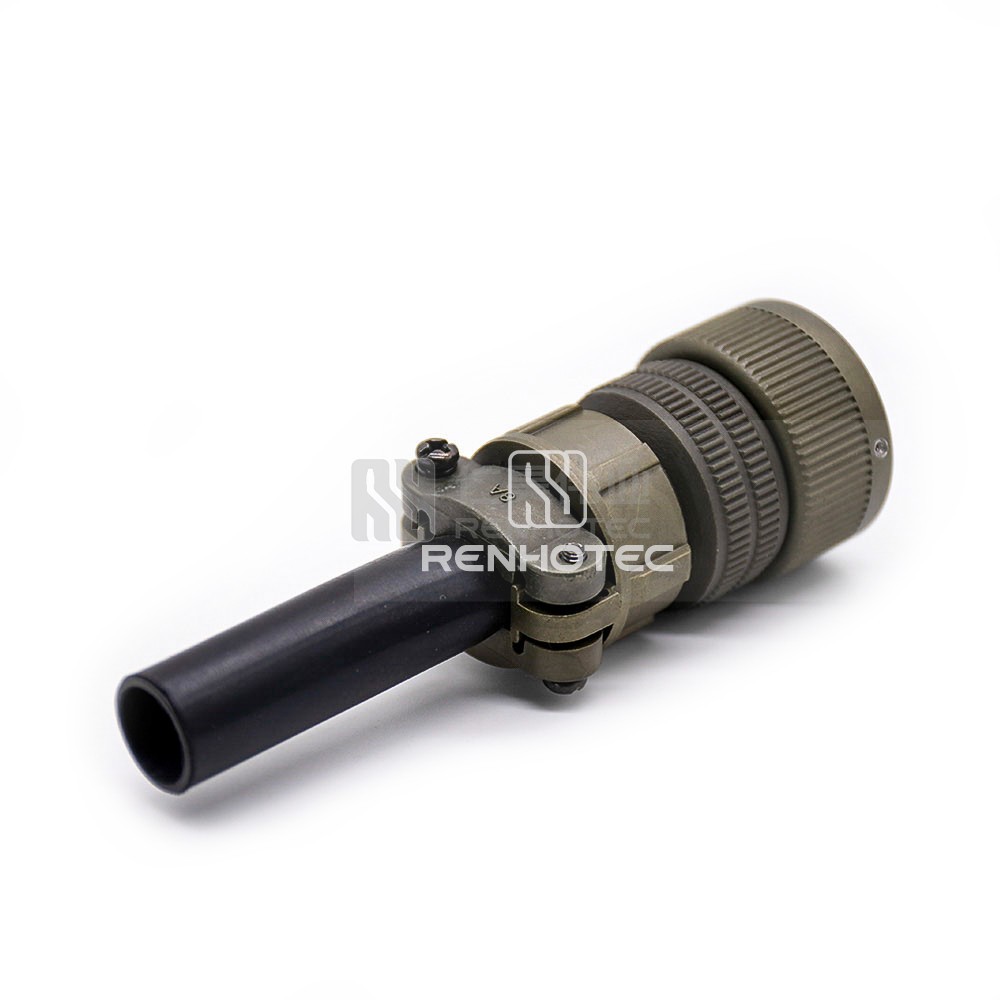

This Bayonet Lock CA3106A16S-1S 7Pin Female Straight Plug features a solder cup design, ensuring secure and reliable connections. Ideal for various electronic applications.
General
Connector Type | Plug |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 7 |
Contact Arrangements | 16S-1 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell
Shell Size | 16S |
Mechanical
Fastening Type | Bayonet |
Mounting Type | Cable Type |
Wire Gauge or Range | 20-16AWG |
Material
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Gold |
Electrical
Shielding | Unshielded |
Rated Current | 15A |
Rated Voltage | 500V |
Environmental
Operating Temperature | -55°C ~ + 125°C |
