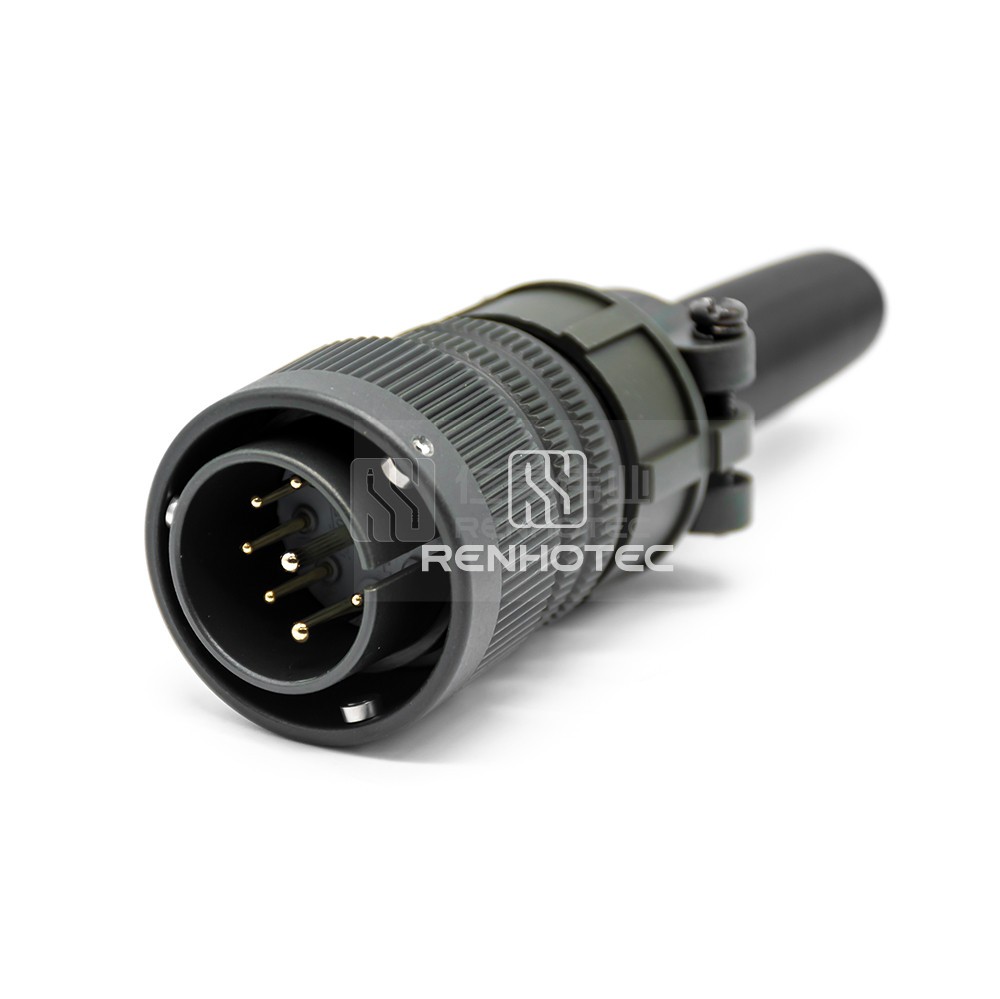

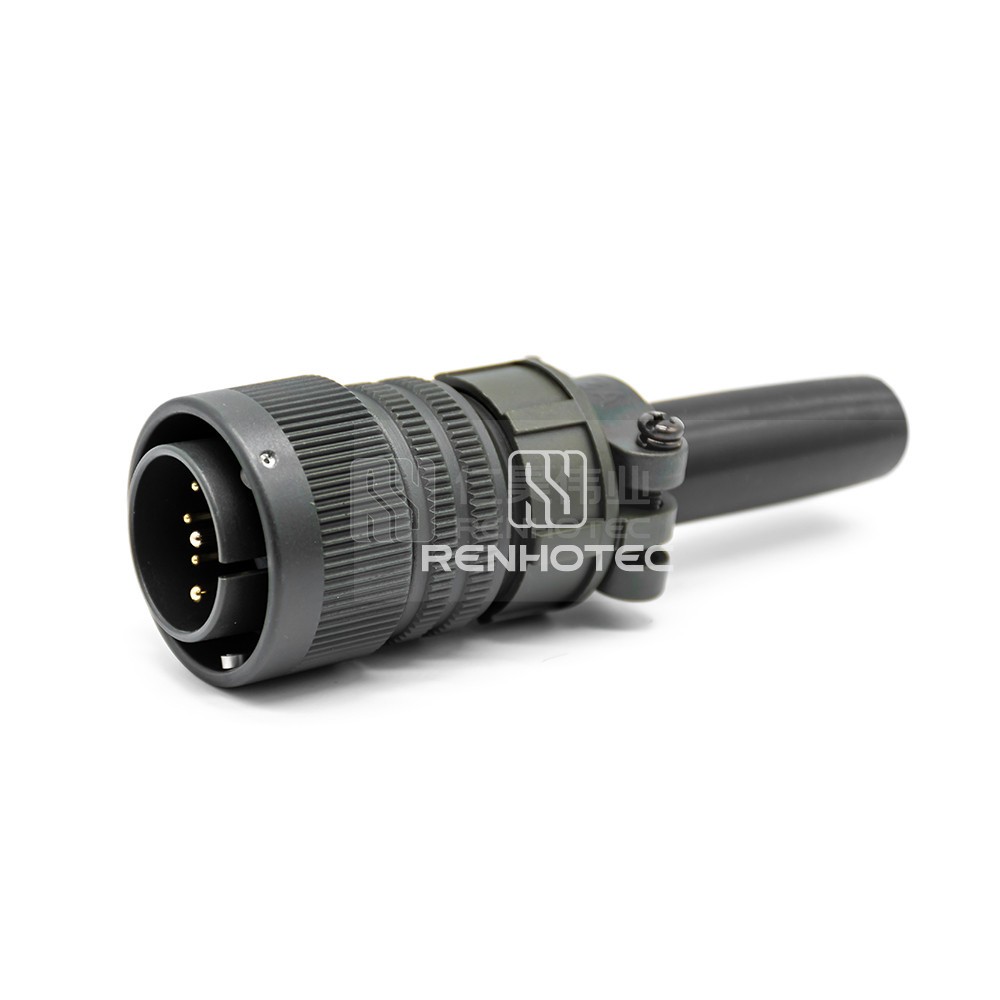

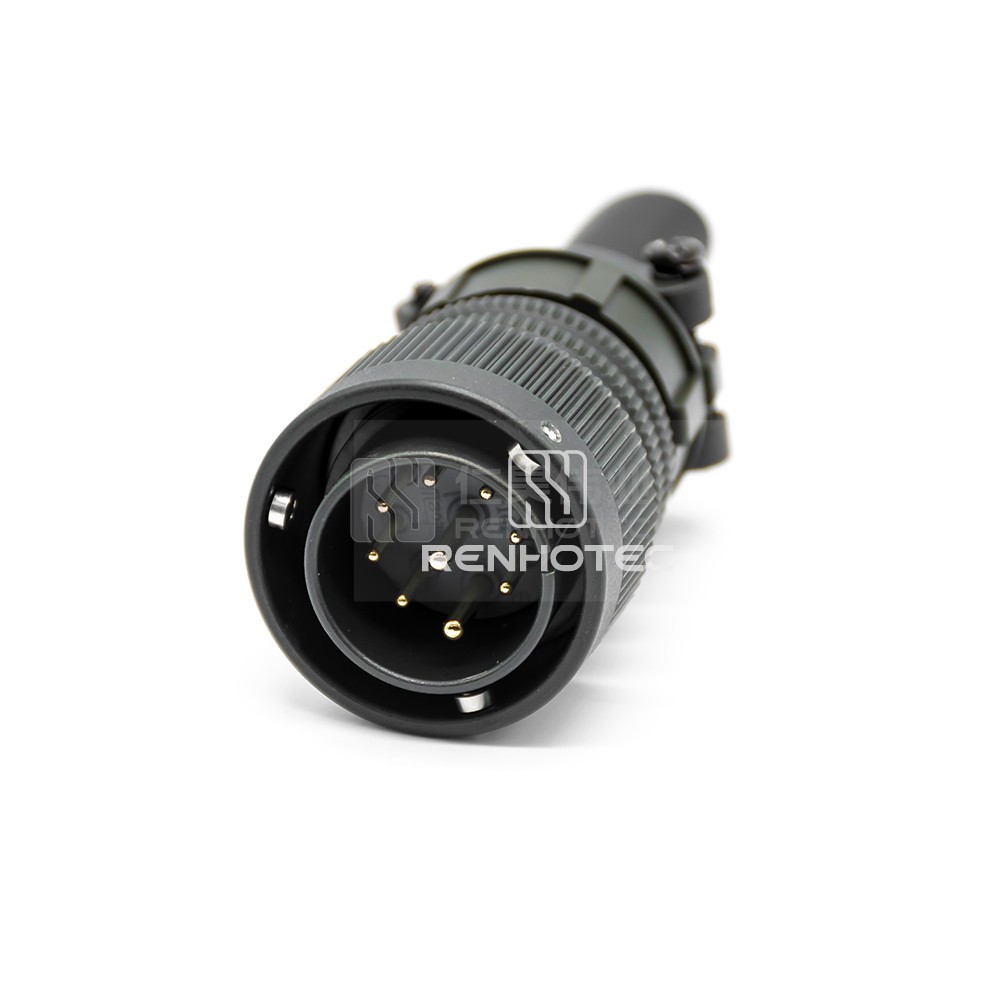

Buy the Bayonet Lock CA3106A20-16P 9Pin Male Straight Plug Solder Cup for secure and reliable connections. This plug features a solder cup for easy installation.
General
Connector Type | Plug |
Orientation | Straight |
Contact Type | Male Pin |
Number of Positions | 9 |
Contact Arrangements | 20-16 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell
Shell Size | 20 |
Mechanical
Fastening Type | Bayonet |
Mounting Type | Cable Type |
Wire Gauge or Range | 14-12AWG/20-16AWG |
Material
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Gold |
Electrical
Shielding | Unshielded |
Rated Current | 30A/15A |
Rated Voltage | 500V |
Environmental
Operating Temperature | -55°C ~ + 125°C |
MS5015 Test Report | Download |
