Products > MIL Spec Connector > Bayonet Lock CA3106A20-16S 9Pin Female Straight Plug Solder Cup

CA3106A20-16S

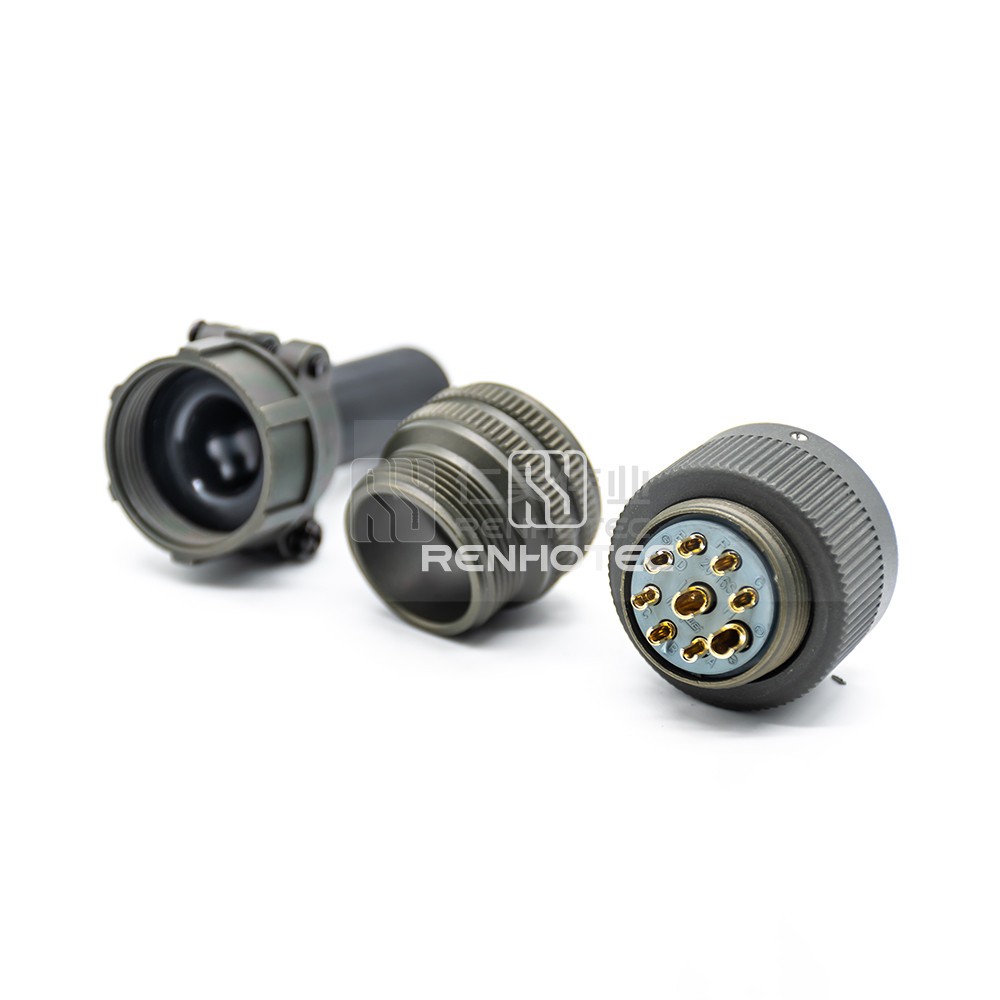

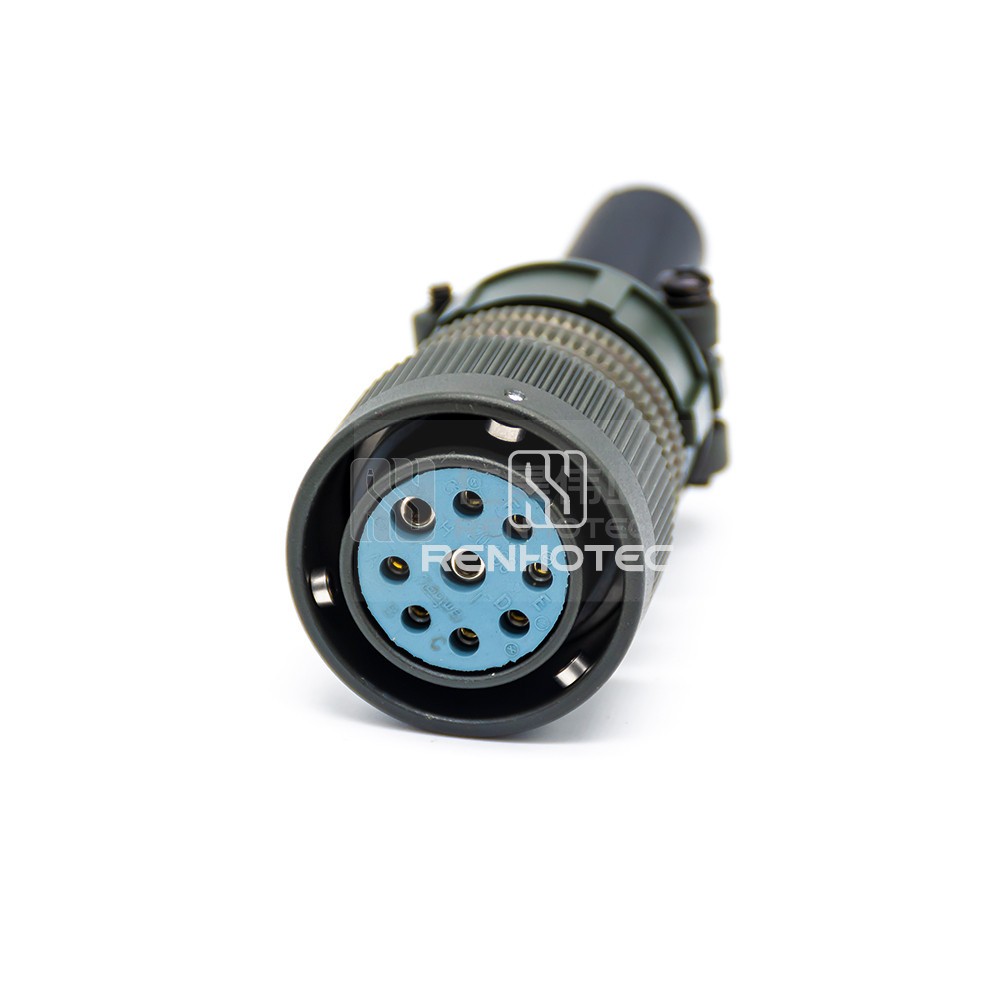

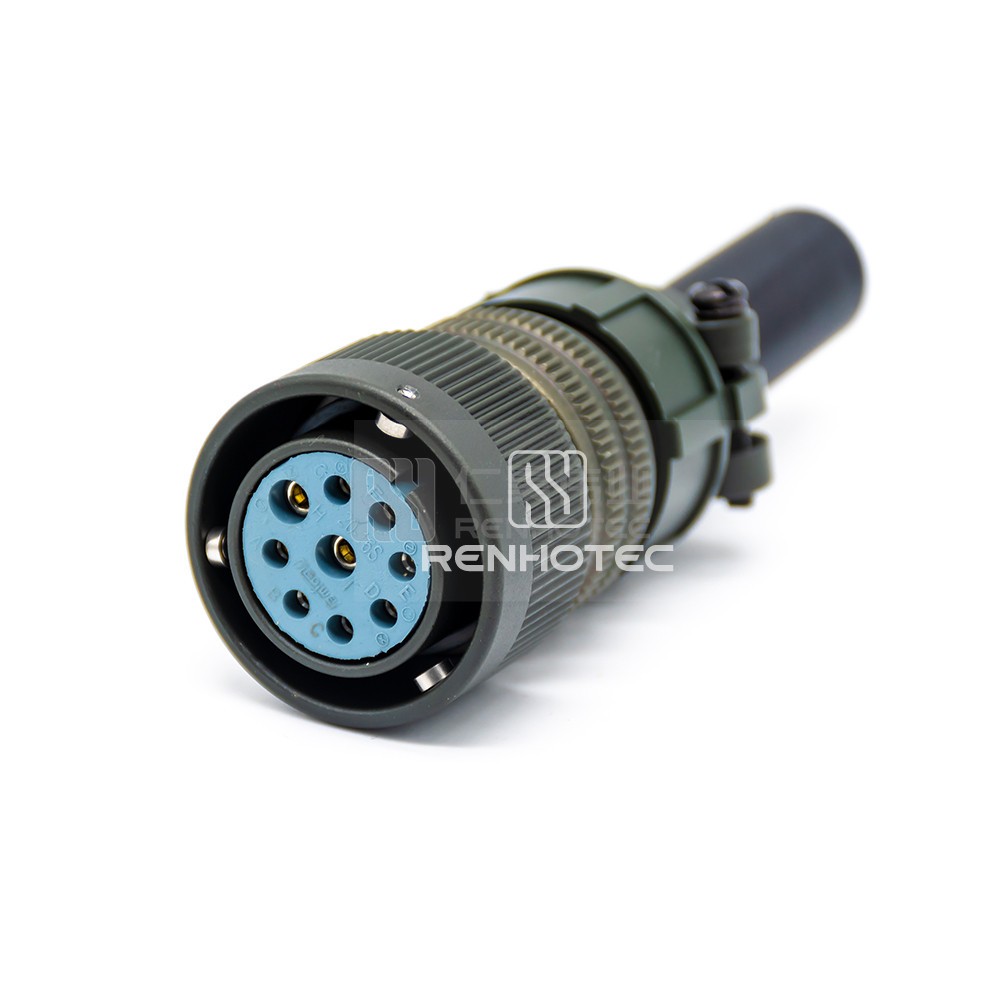

Bayonet Lock CA3106A20-16S 9Pin Female Straight Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality Bayonet Lock CA3106A20-16S 9Pin Female Straight Plug Solder Cup. Perfect for secure connections in electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions9
    Contact Arrangements20-16
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size20

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type
    Wire Gauge or Range14-12AWG/20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current30A/15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    MS5015 Test Report Download
