Products > MIL Spec Connector > Bayonet Lock CA3106A20-2P 1Pin Male Straight Plug Solder Cup

CA3106A20-2P

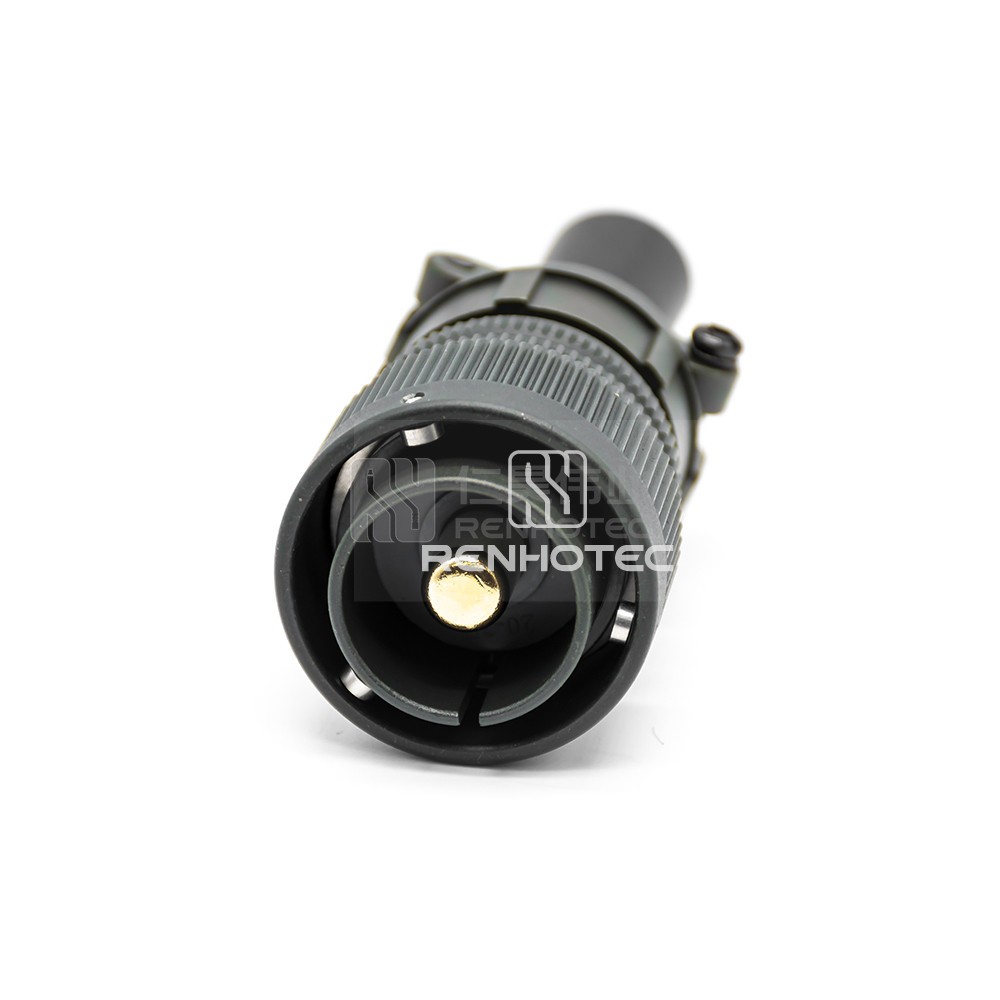

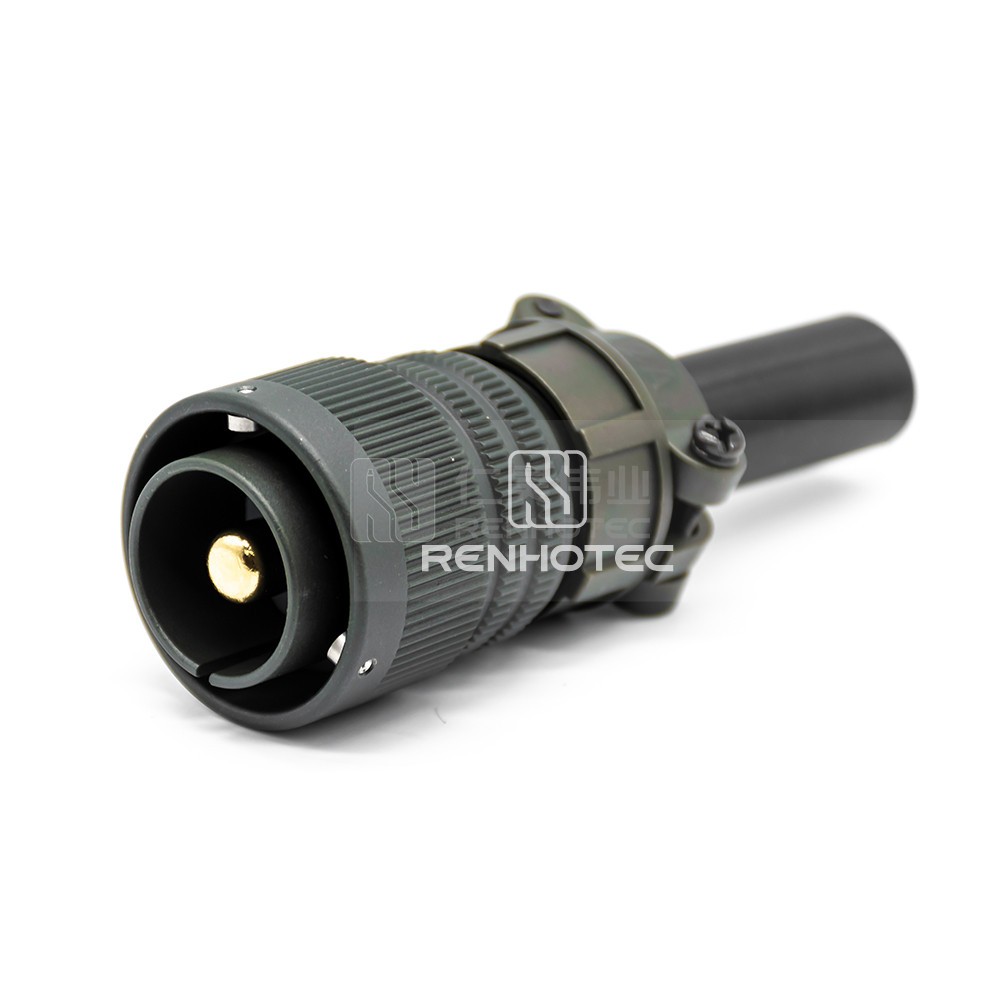

Bayonet Lock CA3106A20-2P 1Pin Male Straight Plug Solder Cup

High-quality Bayonet Lock CA3106A20-2P 1Pin Male Straight Plug Solder Cup for secure connections. Perfect for welding applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions1
    Contact Arrangements20-2
    Fastening TypeBayonet
    Mounting TypeCable Type
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size20

    Mechanical

    Wire Gauge or Range2-0AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current120A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
