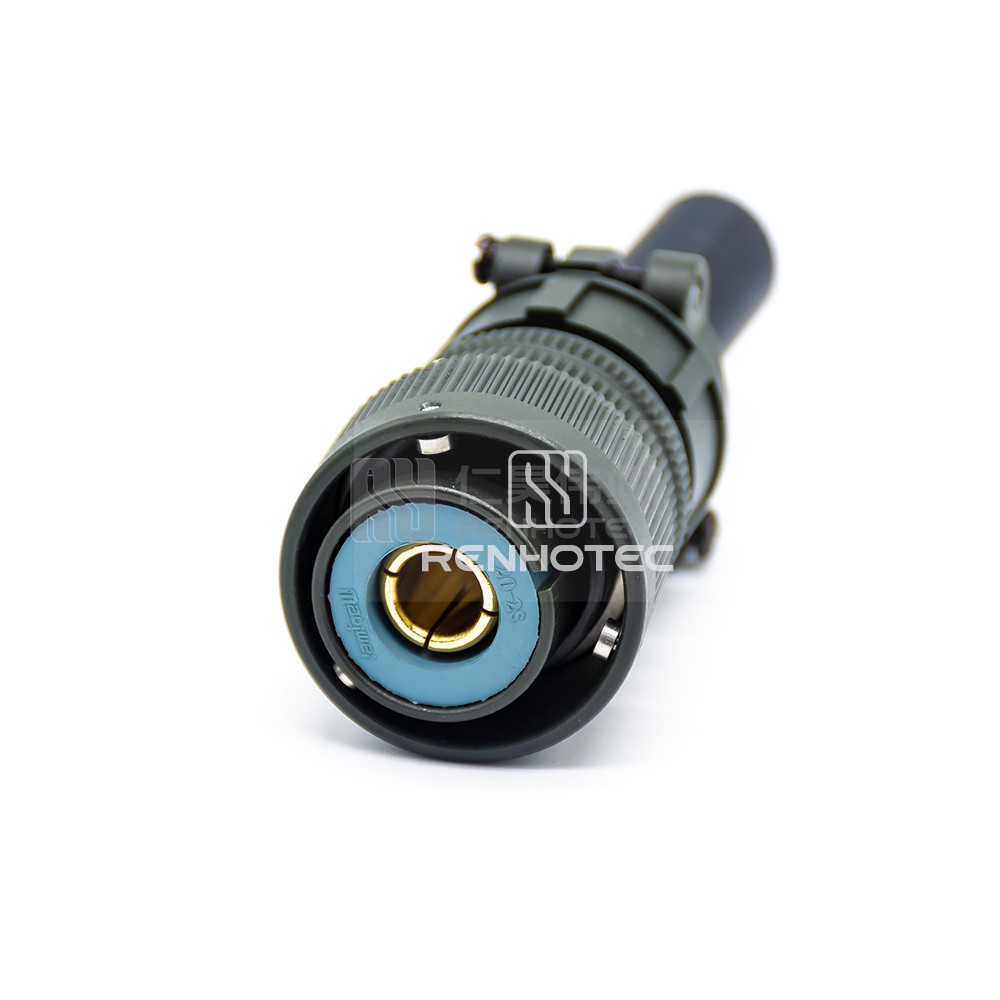

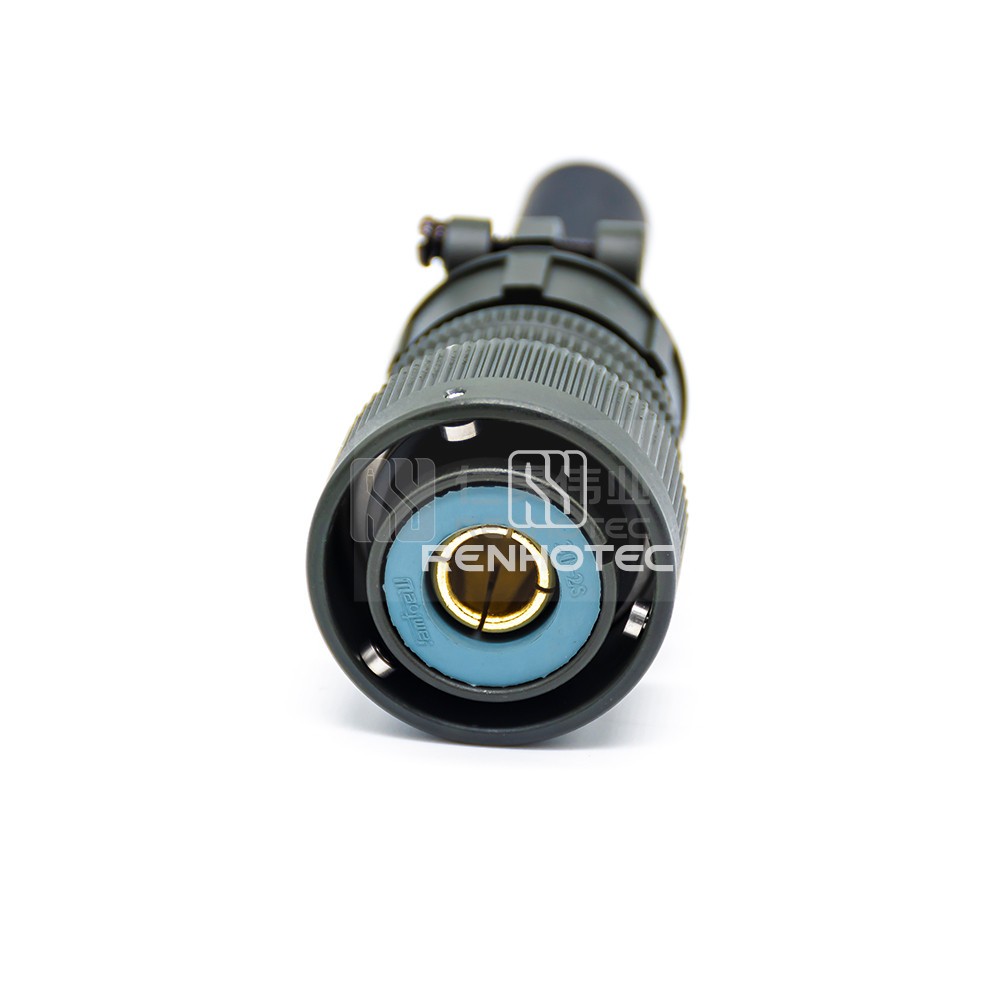

Securely connect wires with this Bayonet Lock CA3106A20-2S 1Pin Female Straight Plug Solder Cup. Ideal for reliable and durable connections in various electronic applications.
General
Connector Type | Plug |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 1 |
Contact Arrangements | 20-2 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell
Shell Size | 20 |
Mechanical
Fastening Type | Bayonet |
Mounting Type | Cable Type |
Wire Gauge or Range | 2-0AWG |
Material
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Gold |
Electrical
Shielding | Unshielded |
Rated Current | 120A |
Rated Voltage | 500V |
Environmental
Operating Temperature | -55°C ~ + 125°C |
