CA3106A22-22S

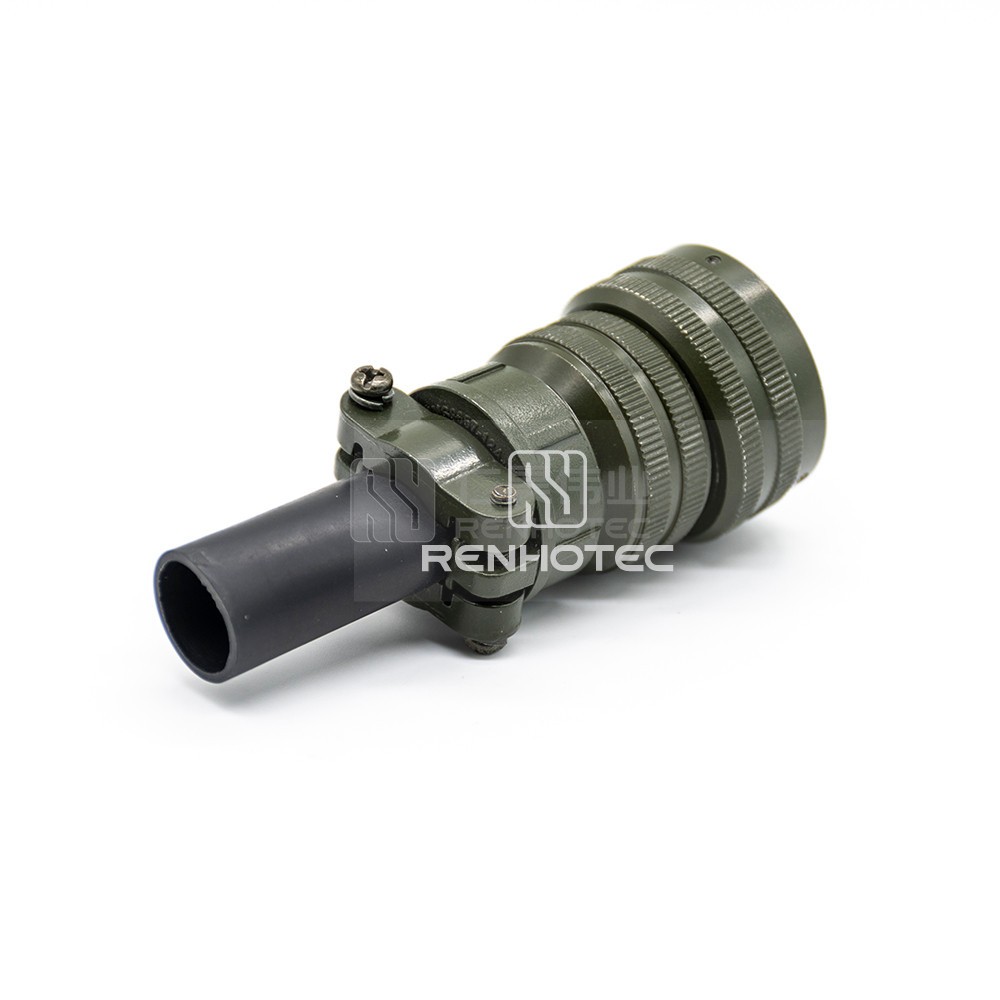

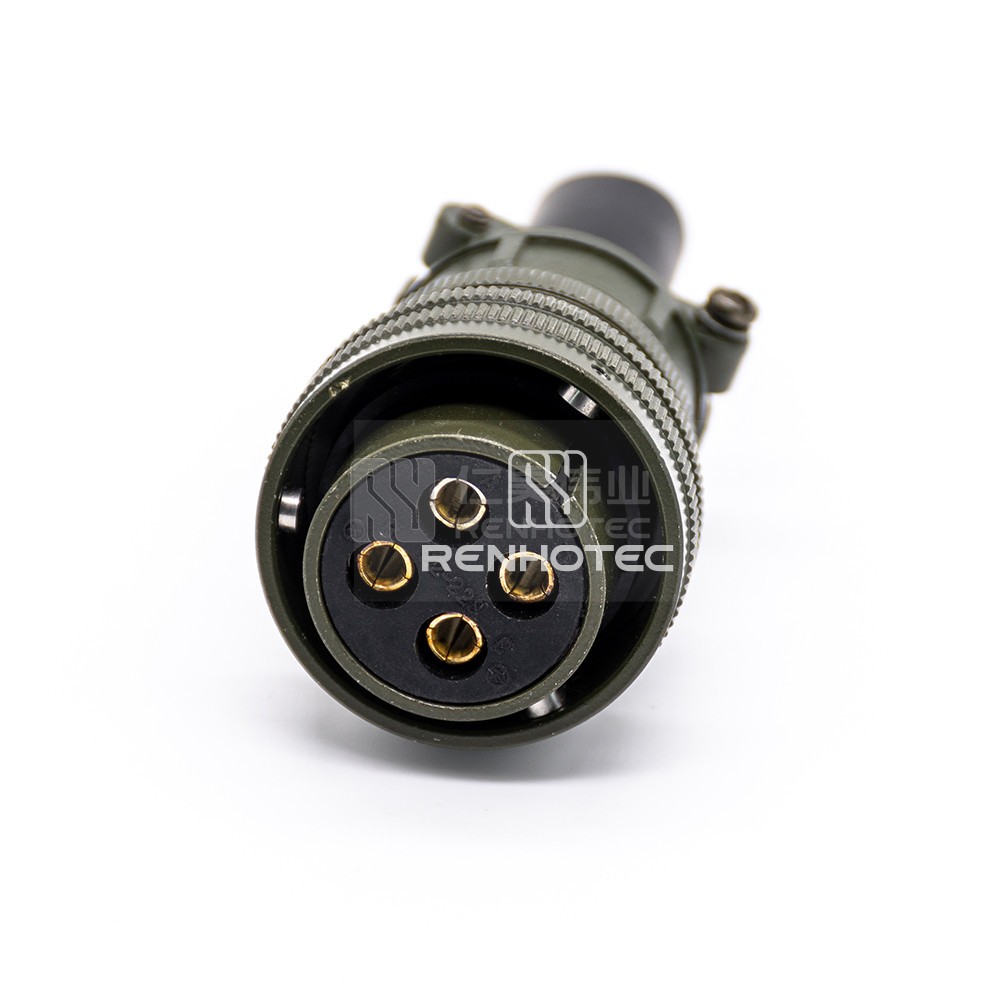

Bayonet Lock CA3106A22-22S 4Pin Female Cable Connecting Plug Solder Cup
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

Securely connect cables with the Bayonet Lock CA3106A22-22S 4Pin Female Cable Connecting Plug. This plug features a solder cup for easy installation and a durable design for reliable performance.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypePlug
OrientationStraight
Contact TypeFemale Pin
Number of Positions4
Contact Arrangements22-22
Contact TerminationSolder Cup
KeyN
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Contact FinishGold
Mechanical
Fastening TypeBayonet
Mounting TypeCable Type
Wire Gauge or Range10-8AWG
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size22
Electrical
ShieldingUnshielded
Rated Current50A
Rated Voltage500V
