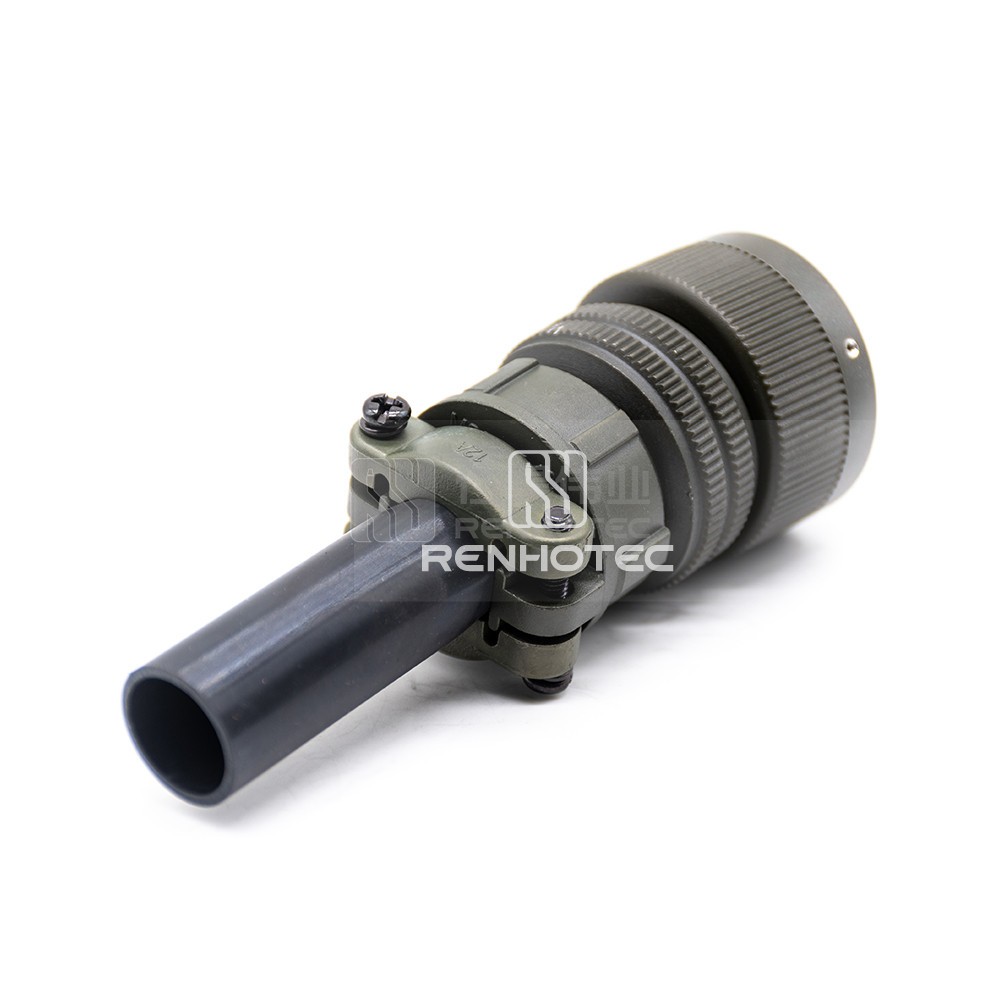

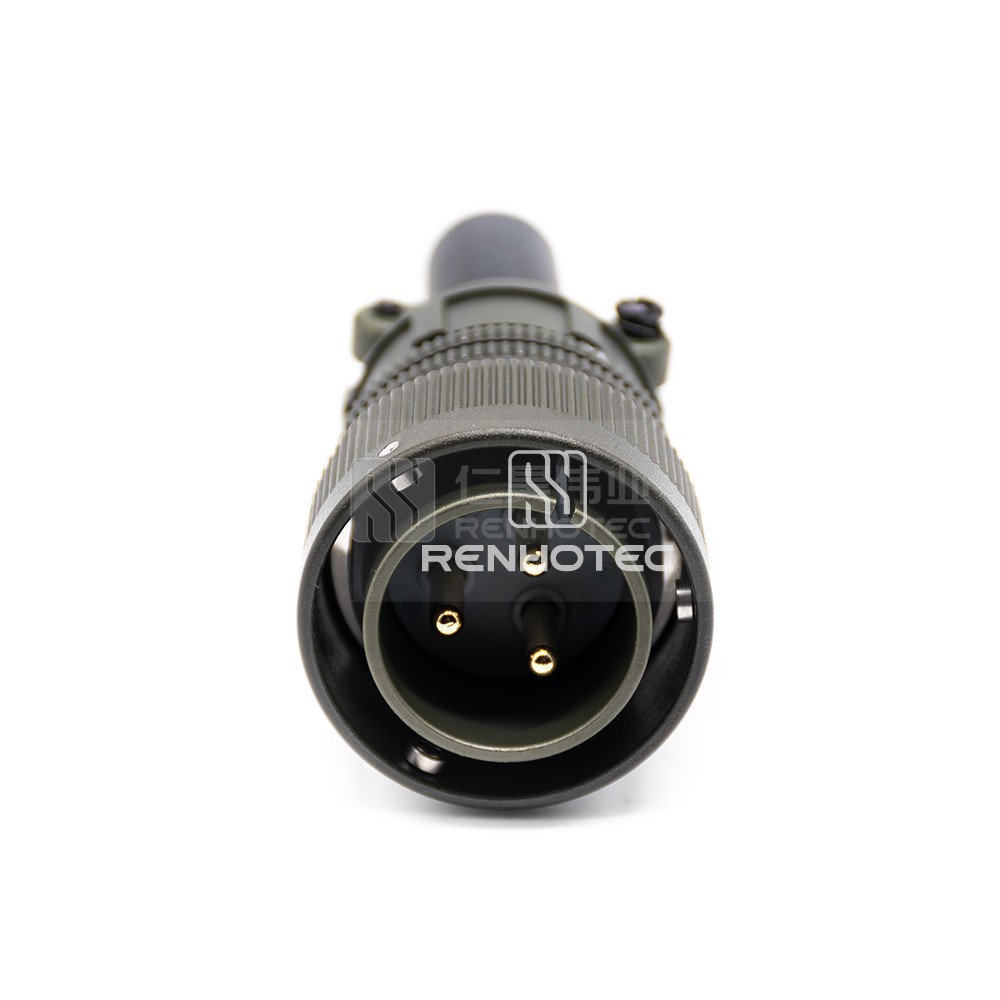

Bayonet Lock CA3106A22-2P 3Pin Male Straight Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality 3-pin male straight plug with bayonet lock mechanism and solder cup for secure connections. Compatible with CA3106A22-2P sockets.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions3
    Contact Arrangements22-2
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size22

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type
    Wire Gauge or Range10-8AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current50A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
