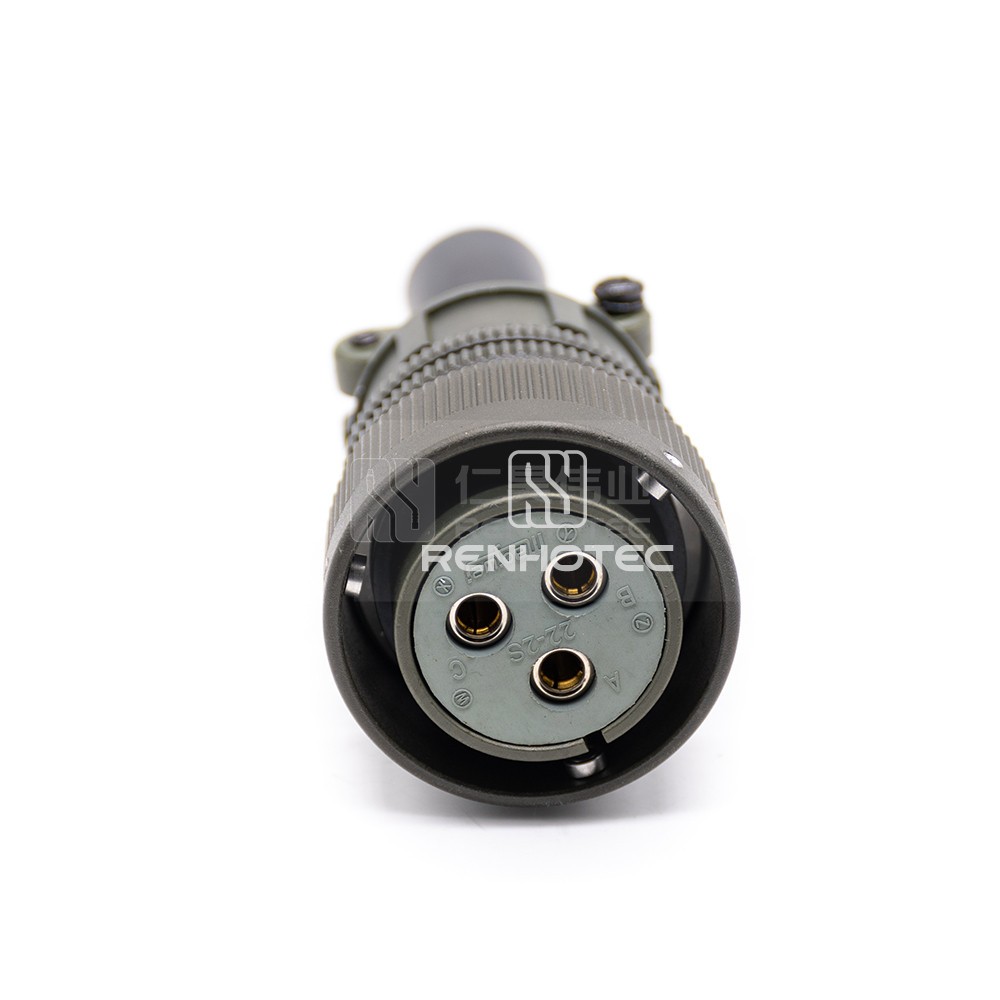

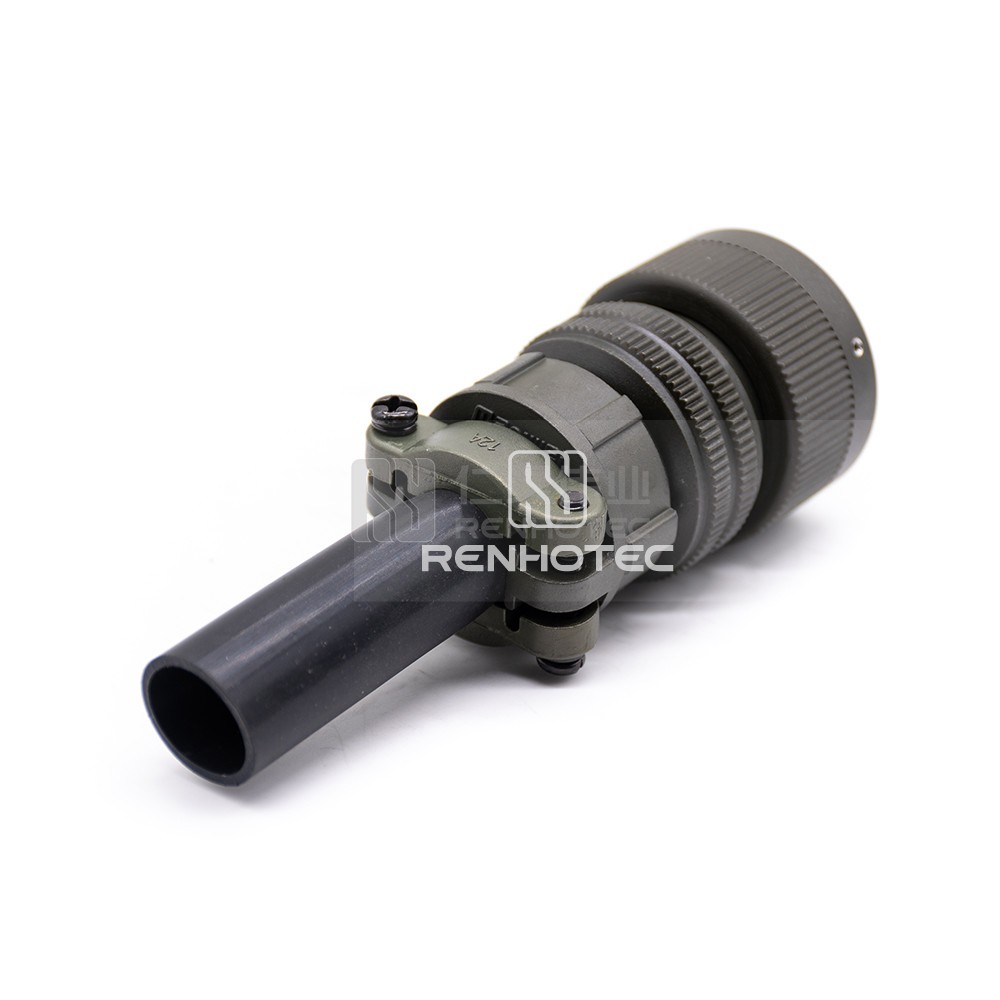

High-quality 3-pin female straight plug solder cup with bayonet lock mechanism. Ensure secure and reliable connections for your electronic applications.
General
Connector Type | Plug |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 3 |
Contact Arrangements | 22-2 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell
Shell Size | 22 |
Mechanical
Fastening Type | Bayonet |
Mounting Type | Cable Type |
Wire Gauge or Range | 10-8AWG |
Material
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Gold |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -55°C ~ + 125°C |
Electrical
Shielding | Unshielded |
Rated Current | 50A |
Rated Voltage | 500V |
MS5015 Test Report | Download |
