CA3106A24-10S

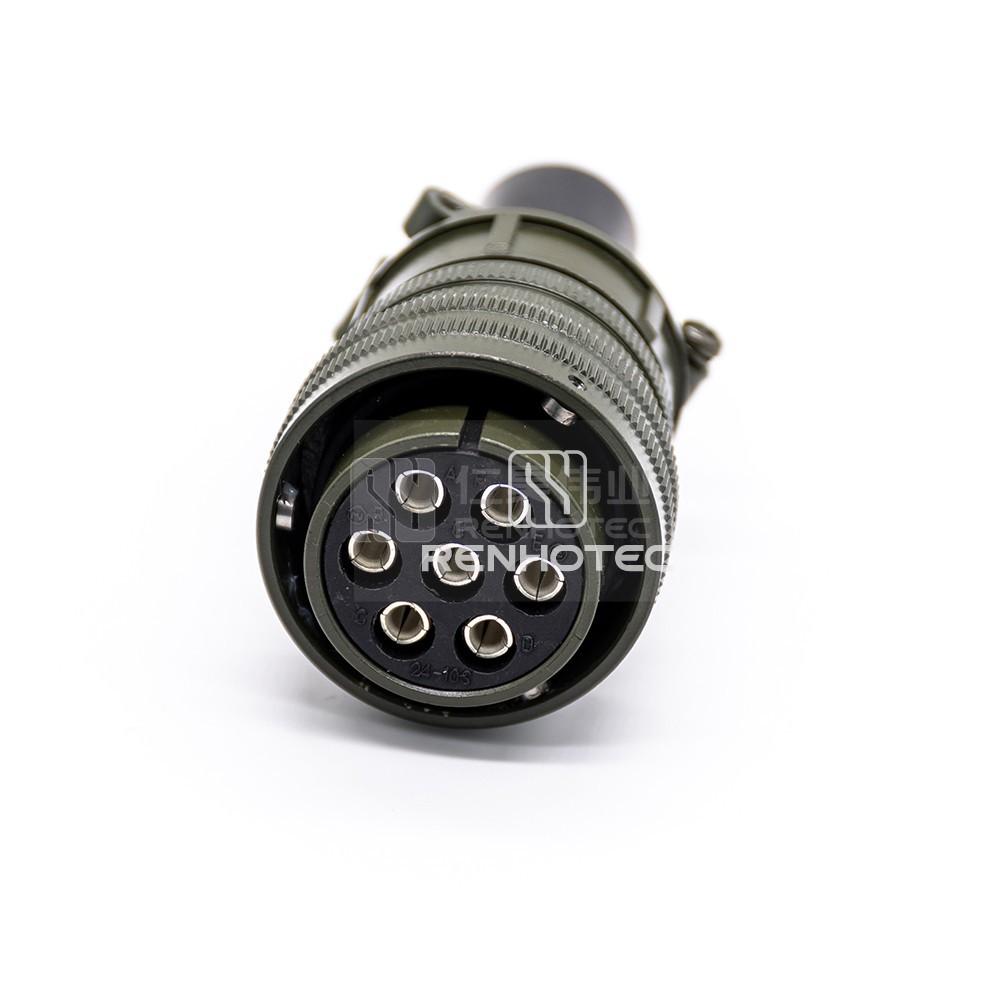

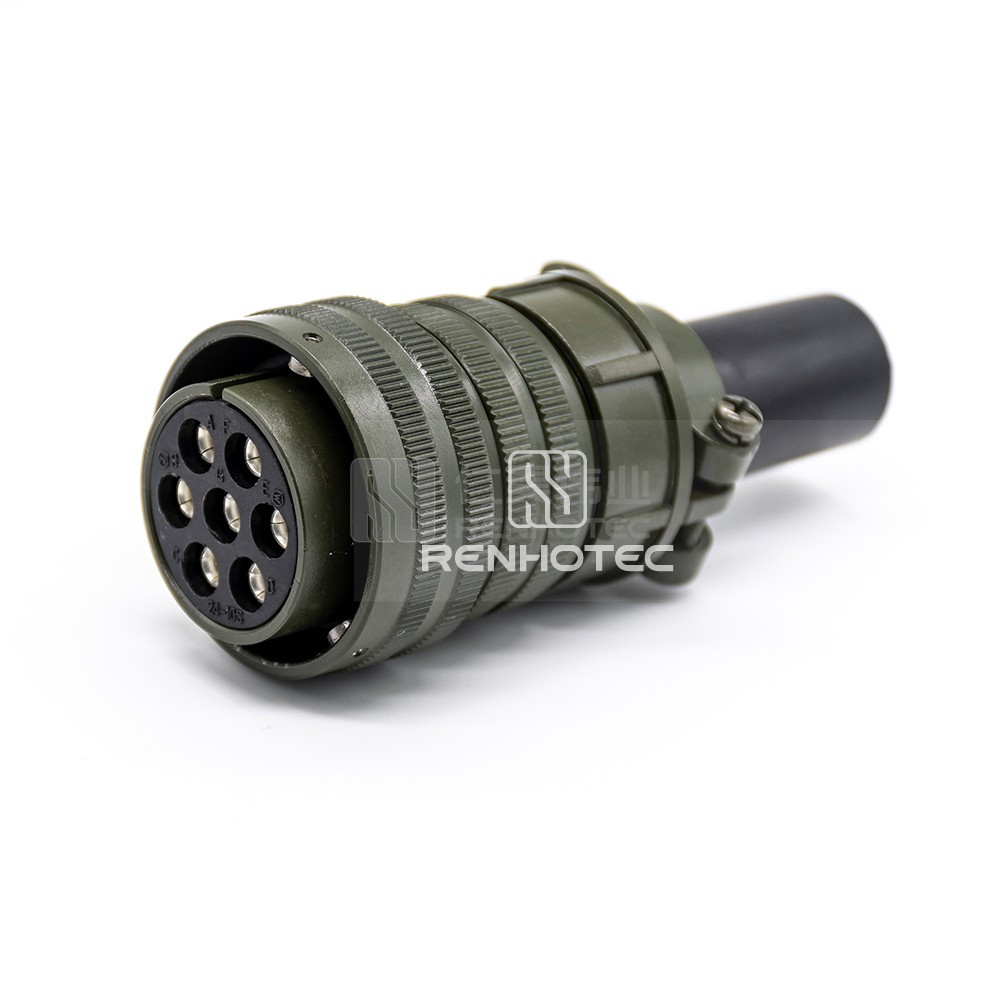

Bayonet Lock CA3106A24-10S 7Pin Female Straight Plug Solder Cup
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

High-quality Bayonet Lock CA3106A24-10S 7Pin female straight plug solder cup perfect for secure connections. Easy to use and durable construction.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypePlug
OrientationStraight
Contact TypeFemale Pin
Number of Positions7
Contact Arrangements24-10
Contact TerminationSolder Cup
KeyN
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Contact FinishSilver
Mechanical
Fastening TypeBayonet
Mounting TypeCable Type
Wire Gauge or Range10-8AWG
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size24
Electrical
ShieldingUnshielded
Rated Current50A
Rated Voltage500V
