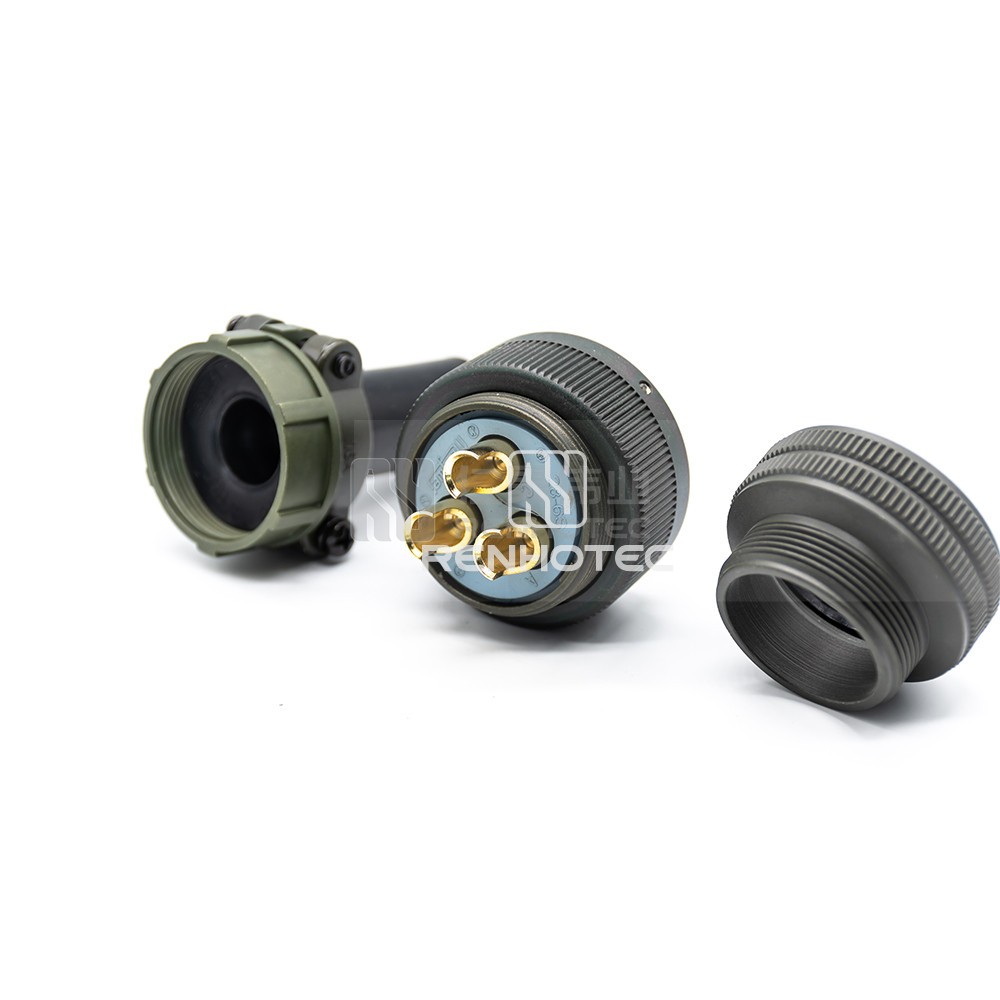

product image

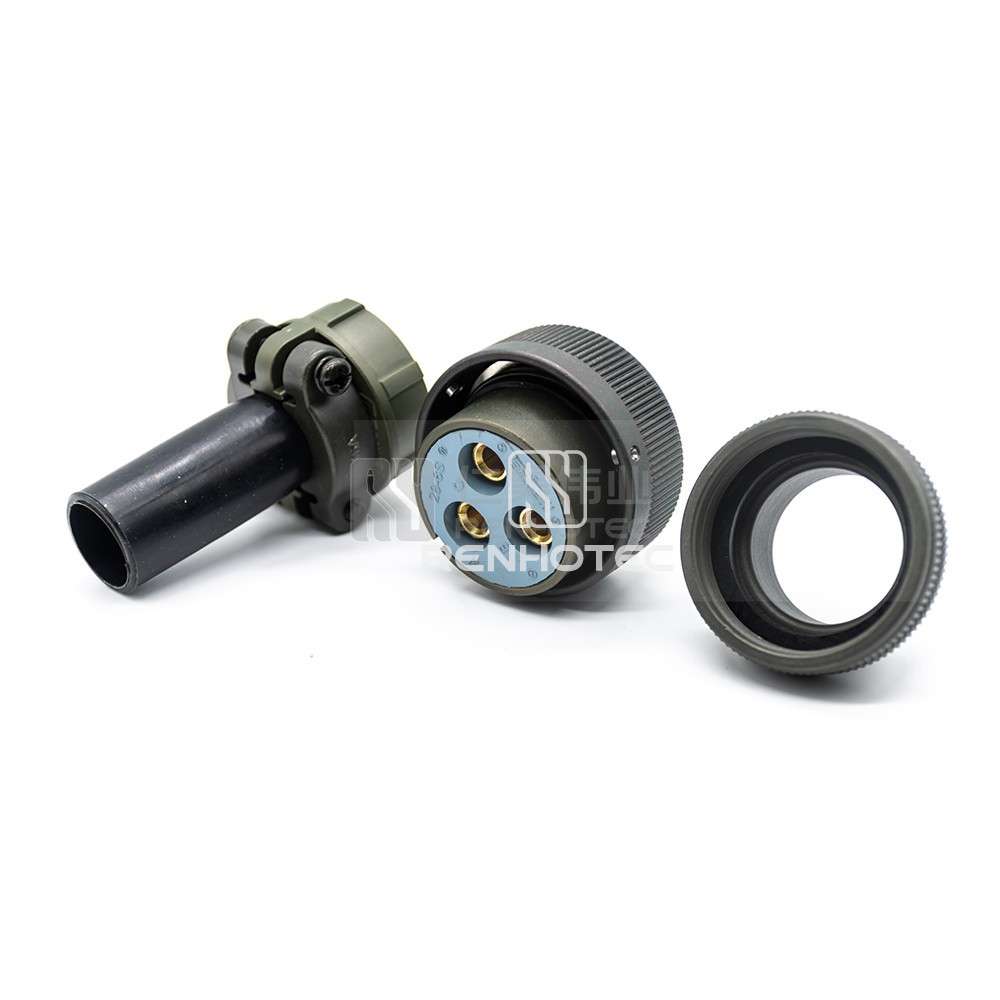

product image

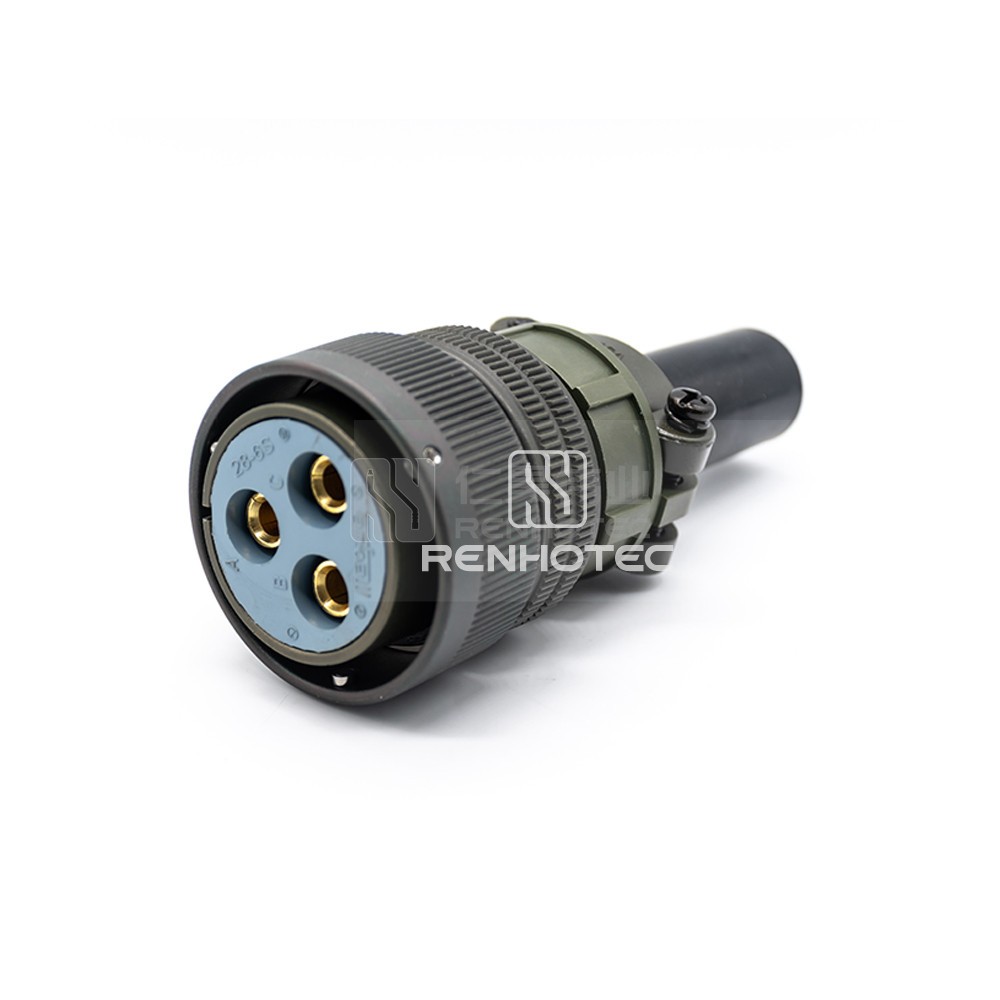

product image

CA3106A28-6S

Bayonet Lock CA3106A28-6S 3Pin Female Straight Plug Solder Cup
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

Securely connect wires with this Bayonet Lock CA3106A28-6S 3Pin Female Straight Plug Solder Cup. Ideal for various industrial applications.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypePlug
OrientationStraight
Contact TypeFemale Pin
Number of Positions3
Contact Arrangements28-6
Contact TerminationSolder Cup
KeyN
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Contact FinishGold
Mechanical
Fastening TypeBayonet
Mounting TypeCable Type
Wire Gauge or Range6-4AWG
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size28
Electrical
ShieldingUnshielded
Rated Current80A
Rated Voltage500V
