Products > MIL Spec Connector > Bayonet Lock CA3106A32-17P 4Pin Male Straight Plug Solder Cup

CA3106A32-17P

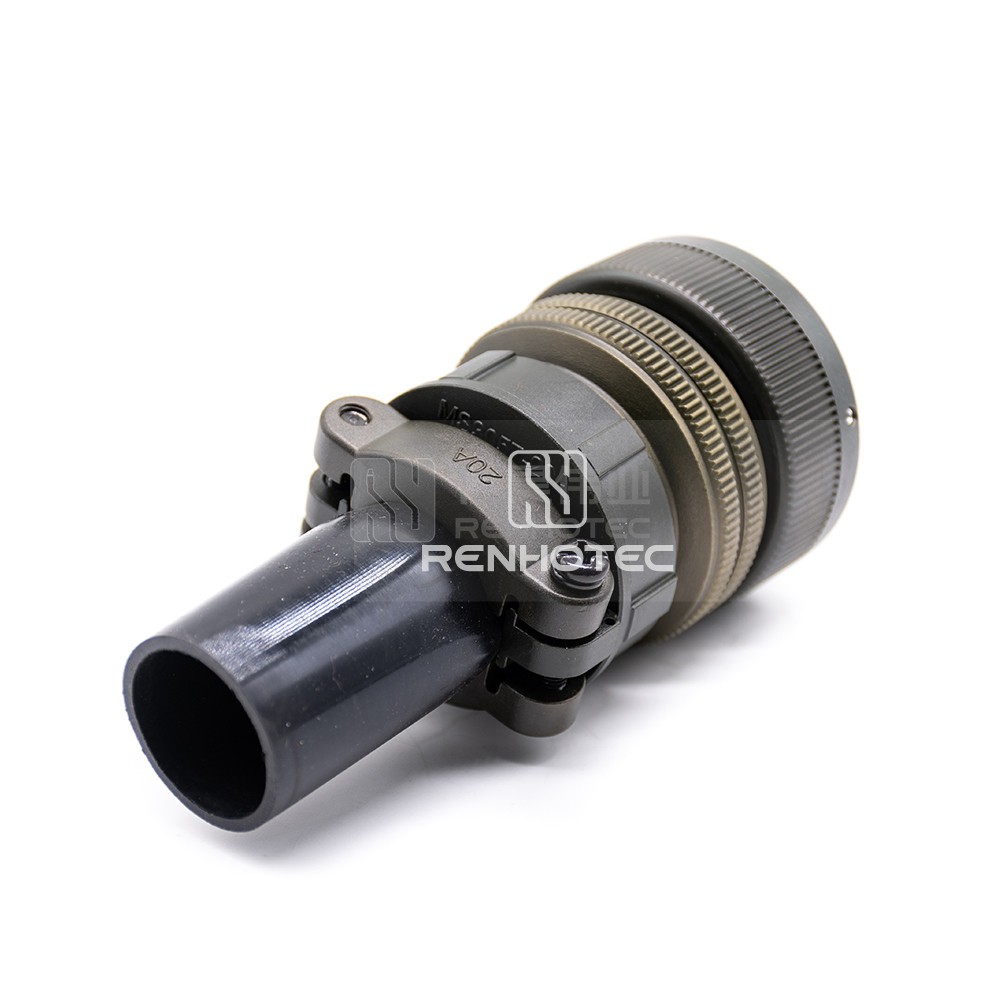

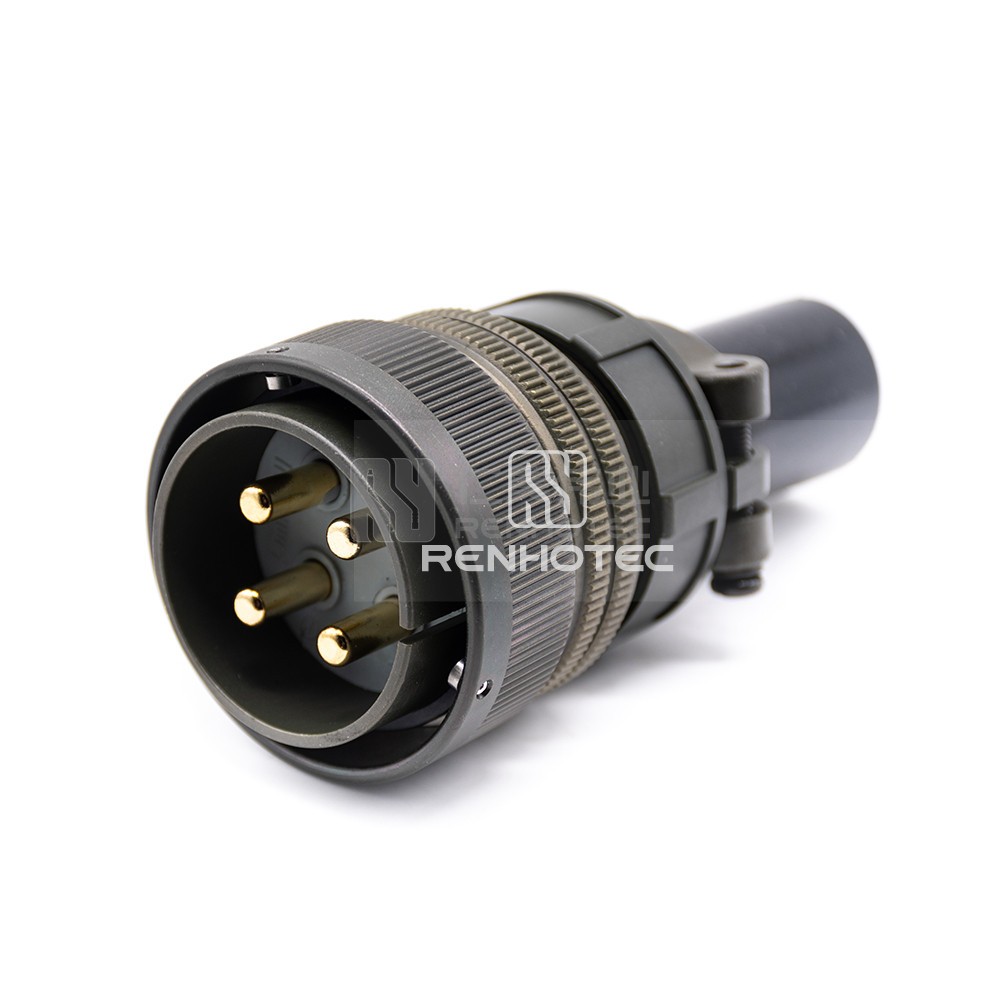

Bayonet Lock CA3106A32-17P 4Pin Male Straight Plug Solder Cup

Get the Bayonet Lock CA3106A32-17P 4Pin Male Straight Plug Solder Cup for reliable and secure electrical connections. Easy to solder and designed for durability.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions4
    Contact Arrangements32-17
    Fastening TypeBayonet
    Mounting TypeCable Type
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size32

    Mechanical

    Wire Gauge or Range6-4AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current80A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
