CA3106A32-5P

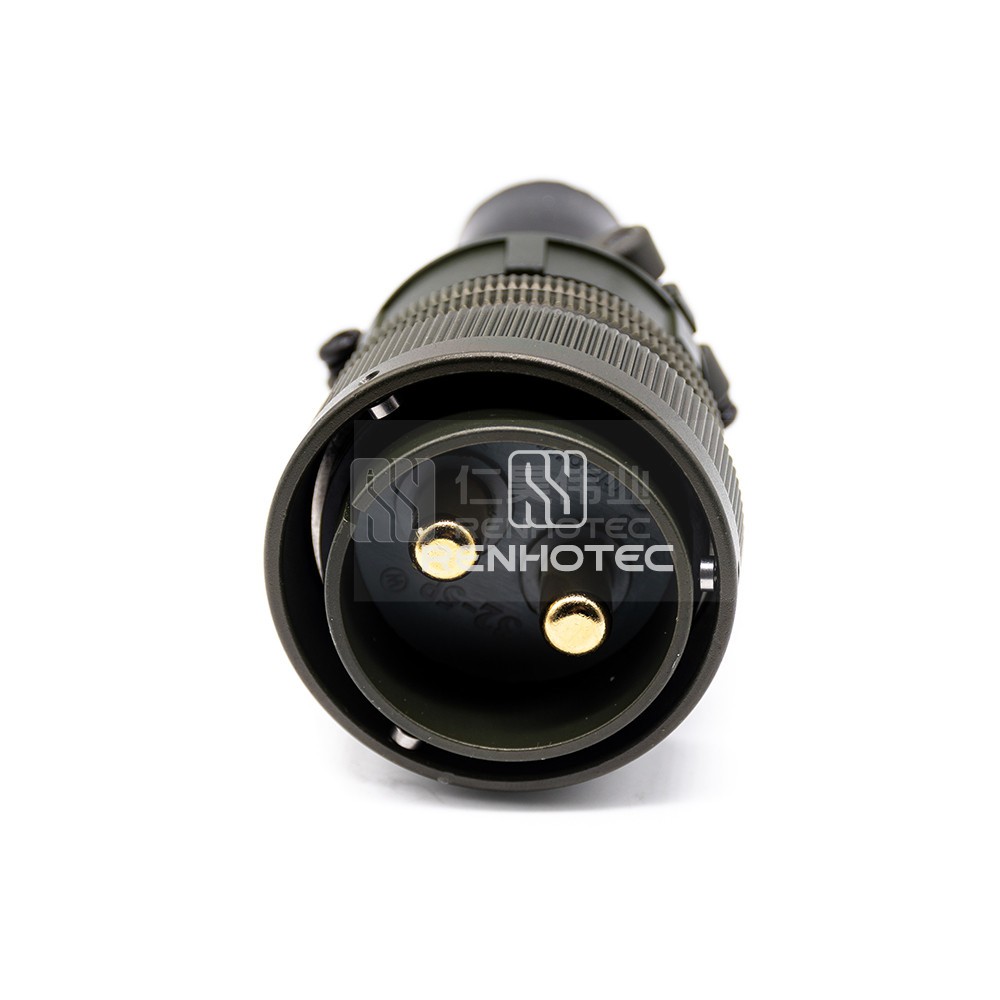

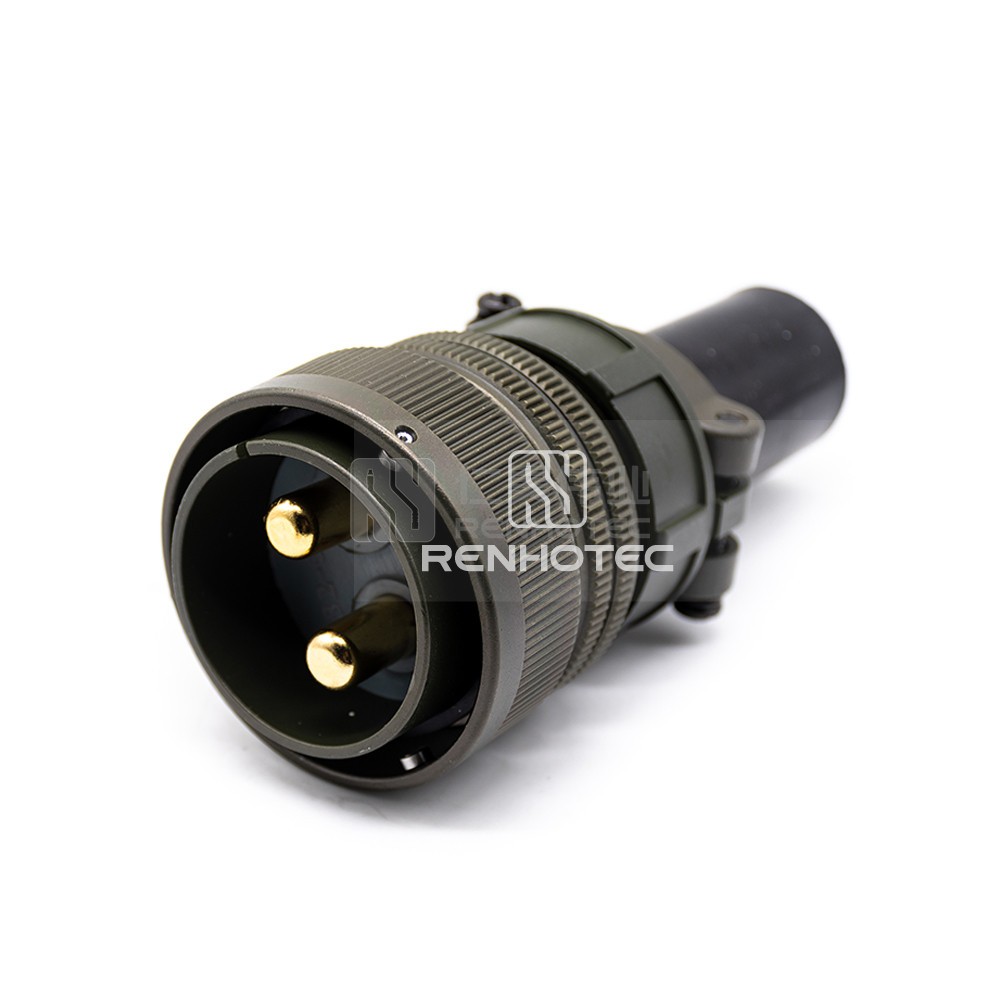

Bayonet Lock CA3106A32-5P 2Pin Male Straight Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Secure your electronic connections with the Bayonet Lock CA3106A32-5P 2Pin Male Straight Plug Solder Cup. This durable plug features a bayonet lock design, ideal for a variety of applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions2
    Contact Arrangements32-5
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size32

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type
    Wire Gauge or Range2-0AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current120A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
