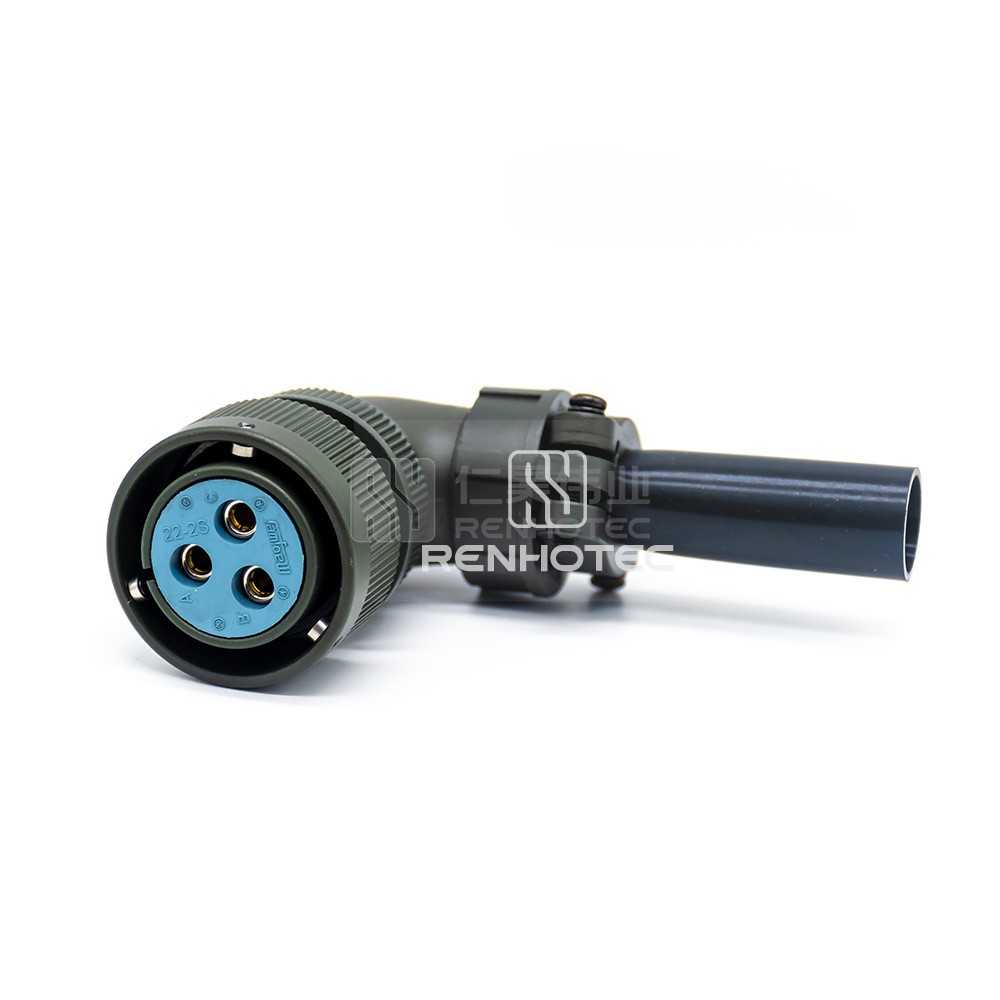

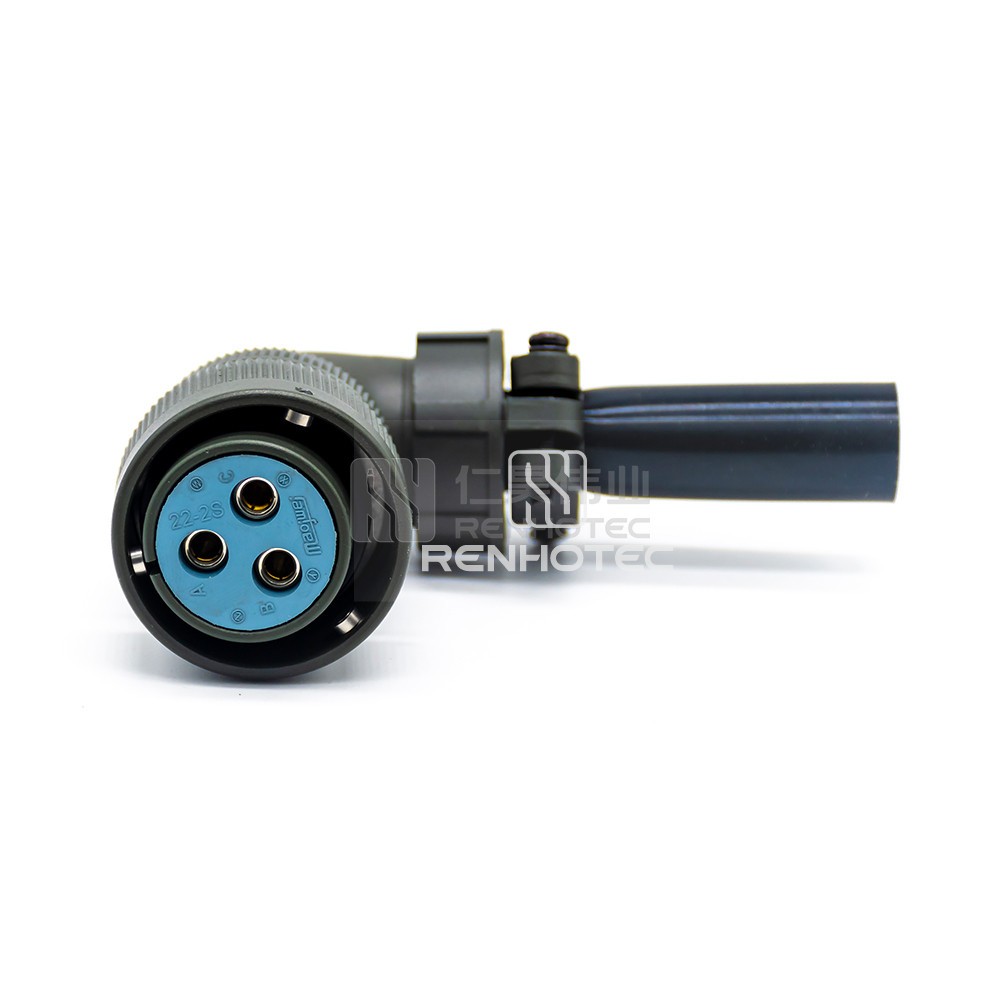

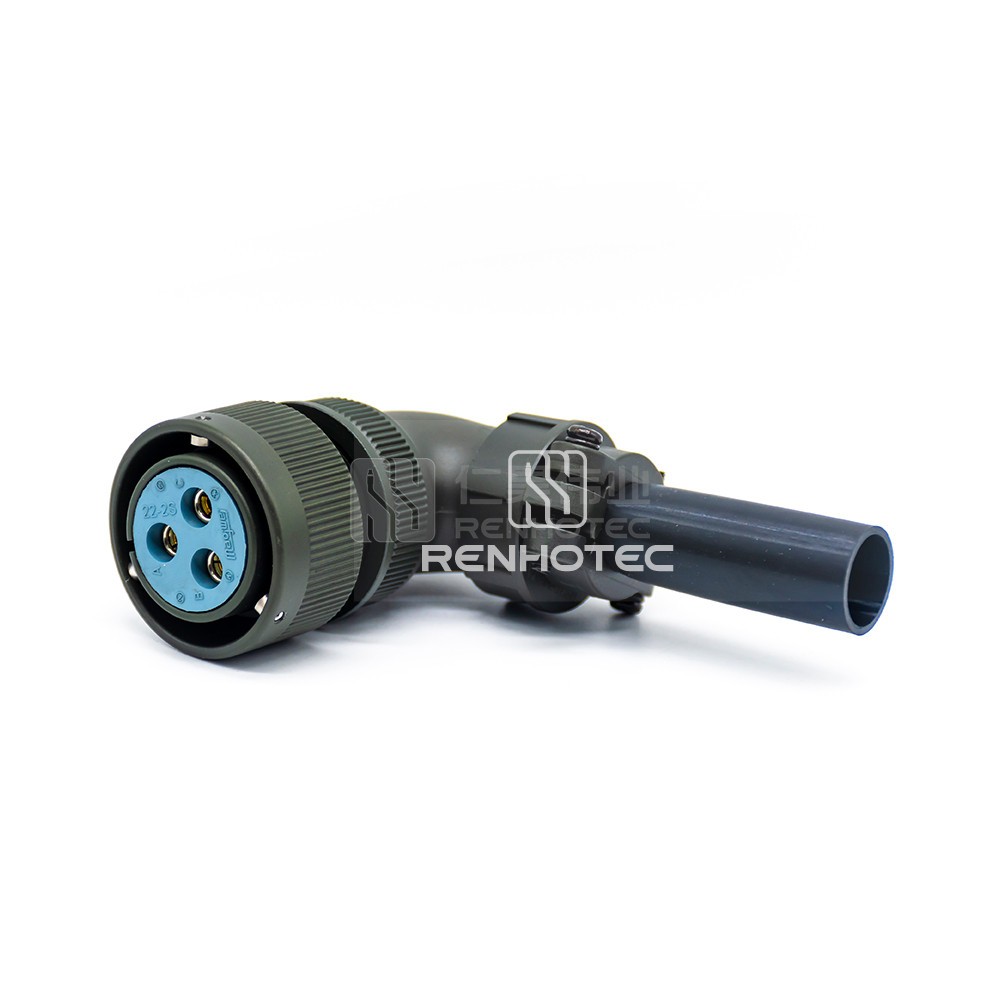

Bayonet Lock CA3108A22-2S 3Pin Female Right Angle Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Get the Bayonet Lock CA3108A22-2S 3Pin Female Right Angle Plug Solder Cup for secure and reliable electrical connections. This female plug features a right angle design and solder cup for easy installation.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Contact TypeFemale Pin
    Number of Positions3
    Contact Arrangements22-2
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size22

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type
    Wire Gauge or Range10-8AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium

    Electrical

    ShieldingUnshielded
    Rated Current50A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
