Products > MIL Spec Connector > Bayonet Lock CA3108A32-5S 2Pin Female Right Angle Plug Solder Cup

CA3108A32-5S

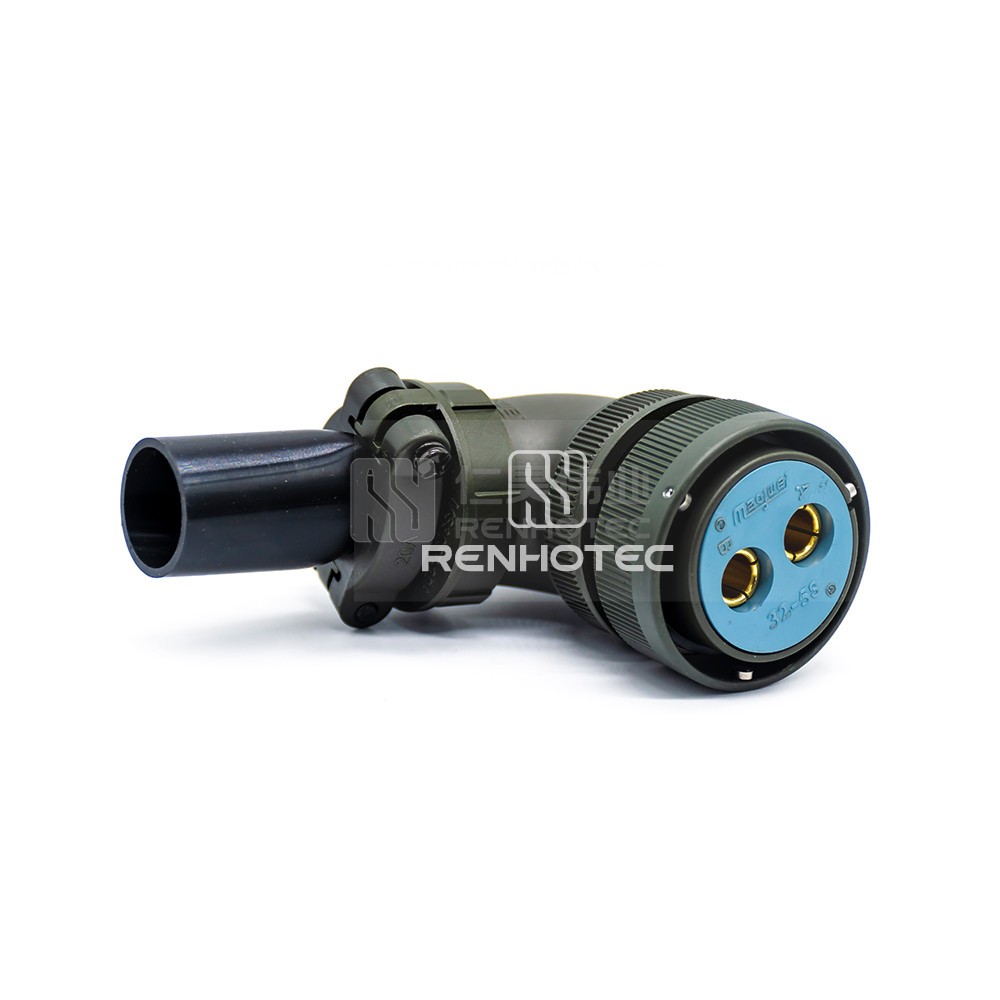

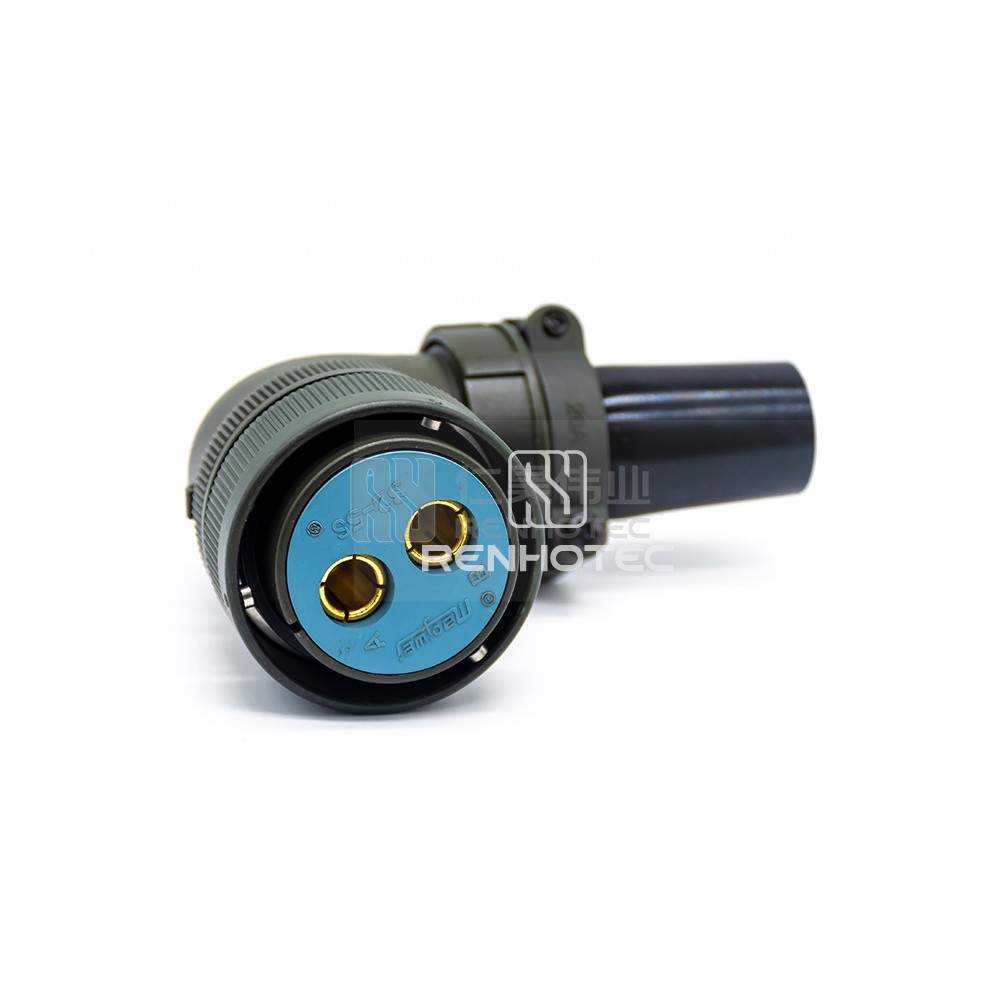

Bayonet Lock CA3108A32-5S 2Pin Female Right Angle Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    Buy the Bayonet Lock CA3108A32-5S 2Pin Female Right Angle Plug Solder Cup for secure and reliable electrical connections. This plug features a solder cup design and a right angle orientation, making it ideal for various applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Contact TypeFemale Pin
    Number of Positions2
    Contact Arrangements32-5
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size32

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type
    Wire Gauge or Range2-0AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current120A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
