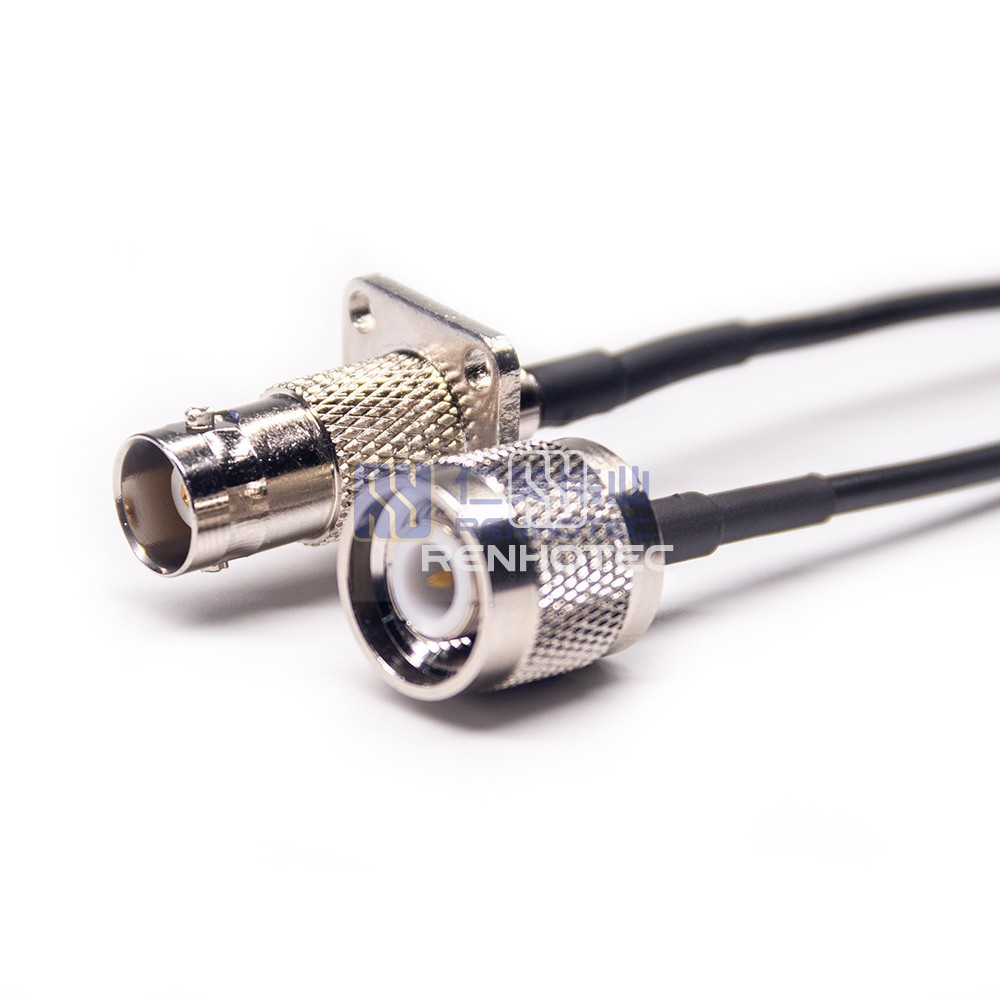

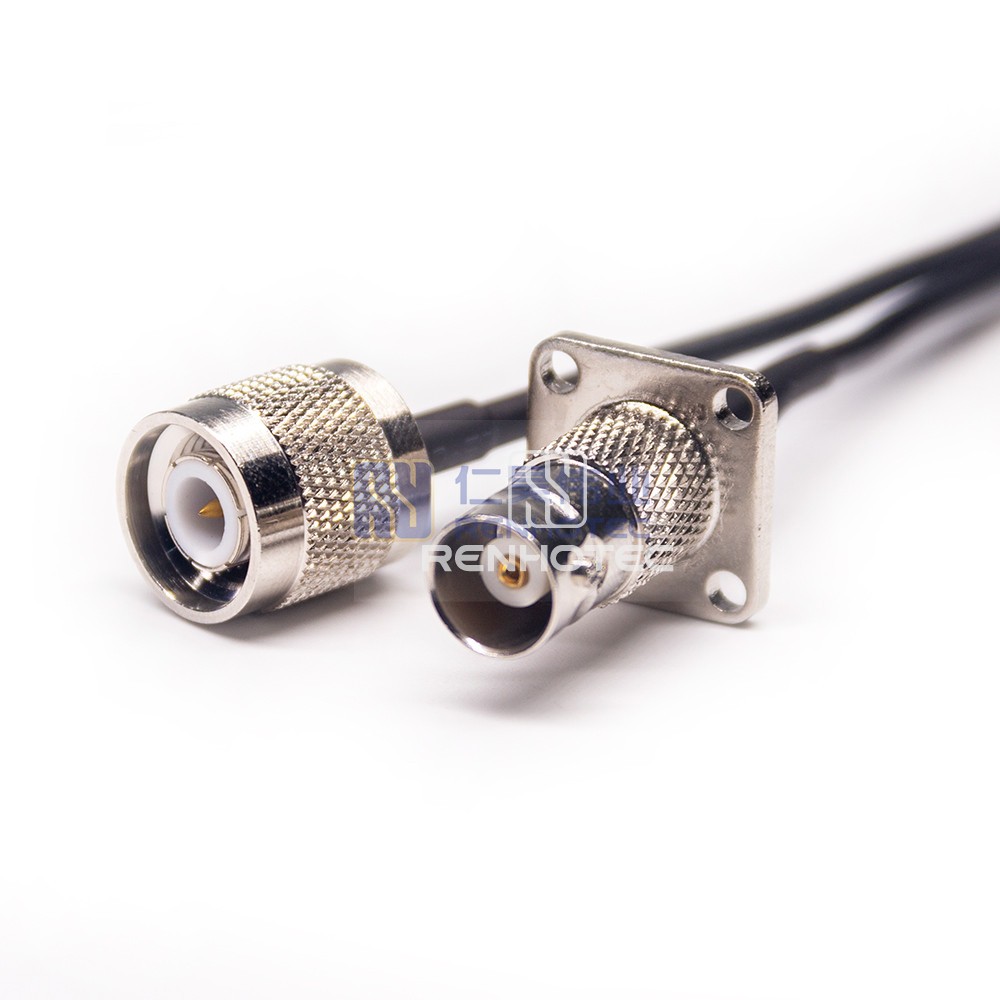

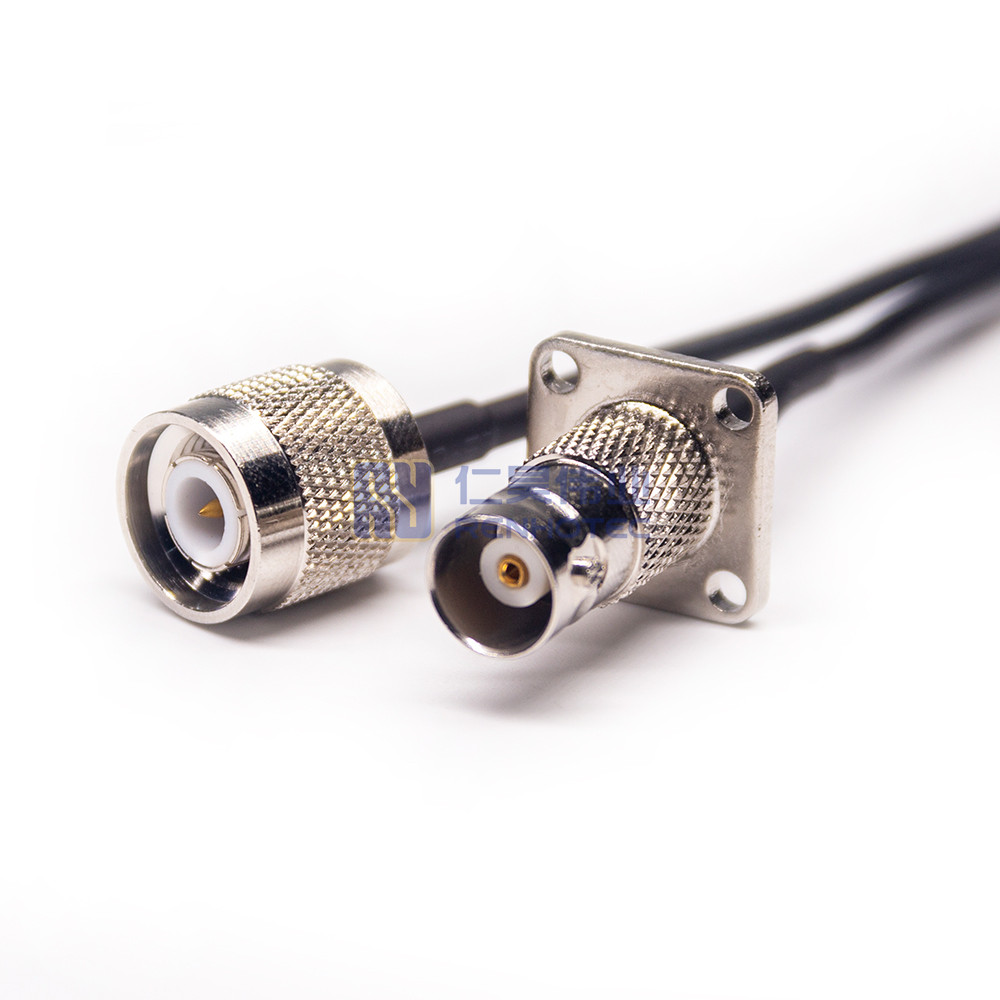

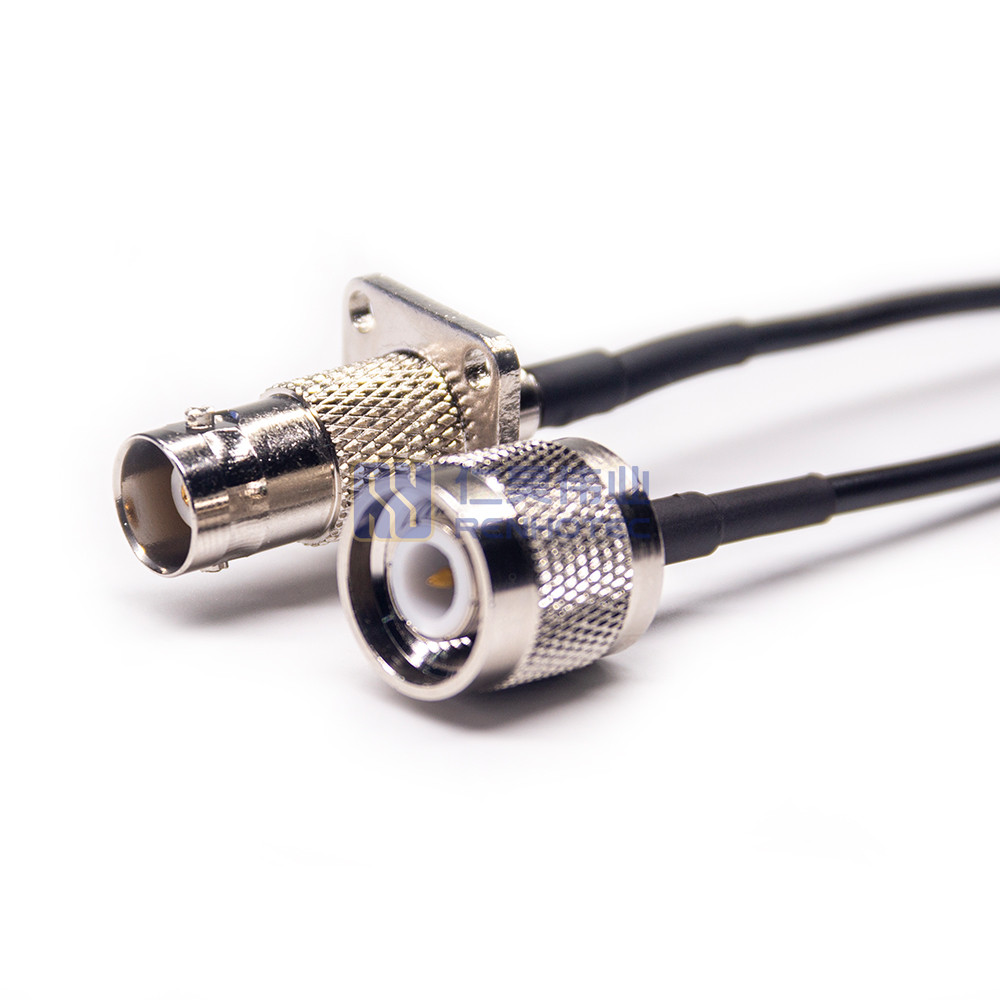

Products > RF Cable Assembly > BNC Female Flange to TNC Male Cable Assembly with 50 Ohm RG174 Coaxial Cable
R02-B01-10071-15
BNC Female Flange to TNC Male Cable Assembly with 50 Ohm RG174 Coaxial Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality BNC Female to TNC Male Cable Assembly featuring 50 Ohm RG174 Coaxial Cable. Ideal for seamless signal transmission in various electronic setups.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | BNC to TNC |
| 1st Connector Series | BNC Jack |
| 1st Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | TNC Plug |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Straight |
| Features | Flange |
| Mechanical | |
|---|---|
| Suitable Cable | RG174 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
