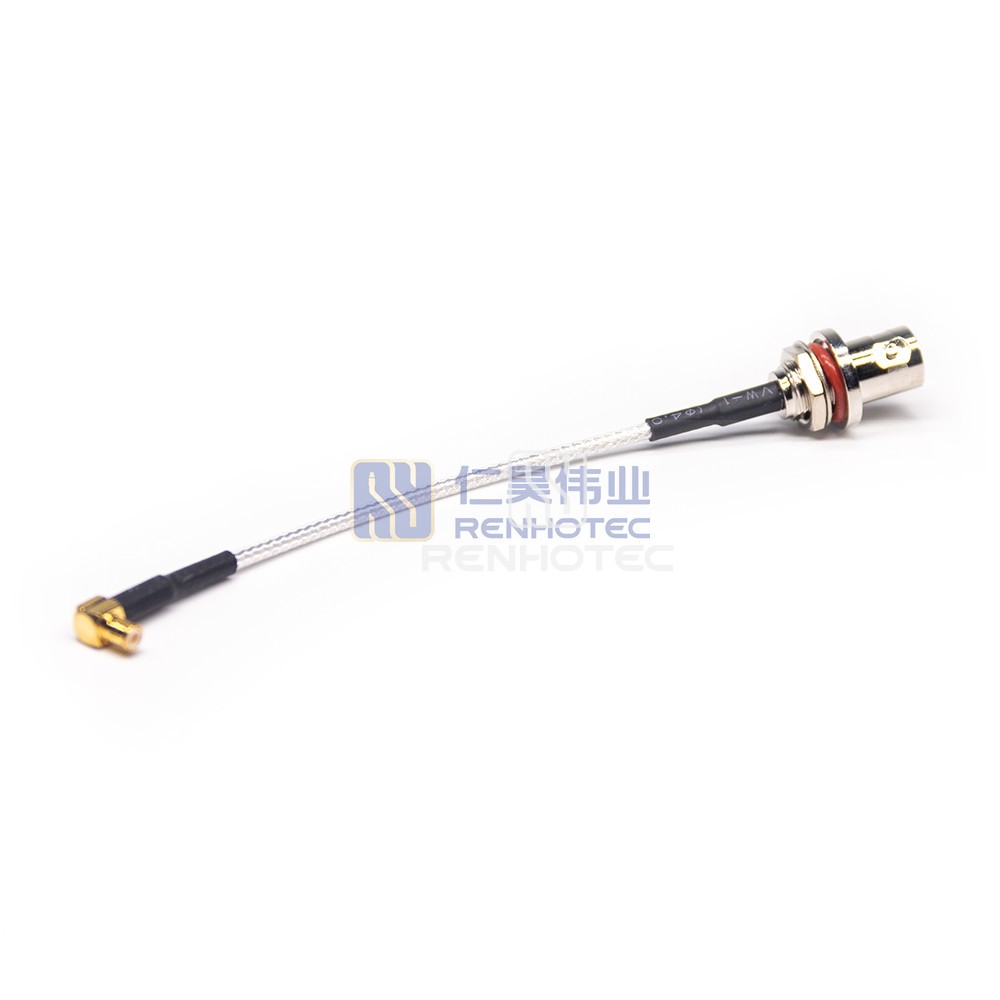

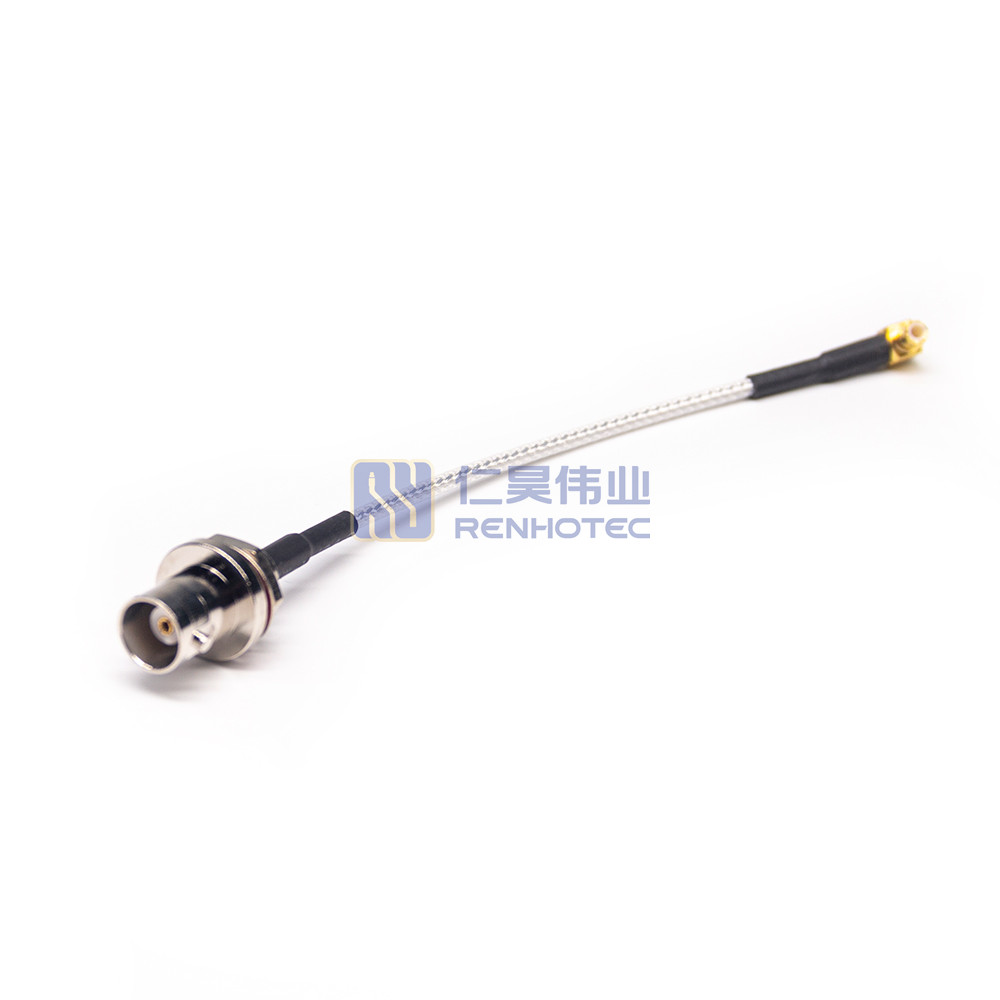

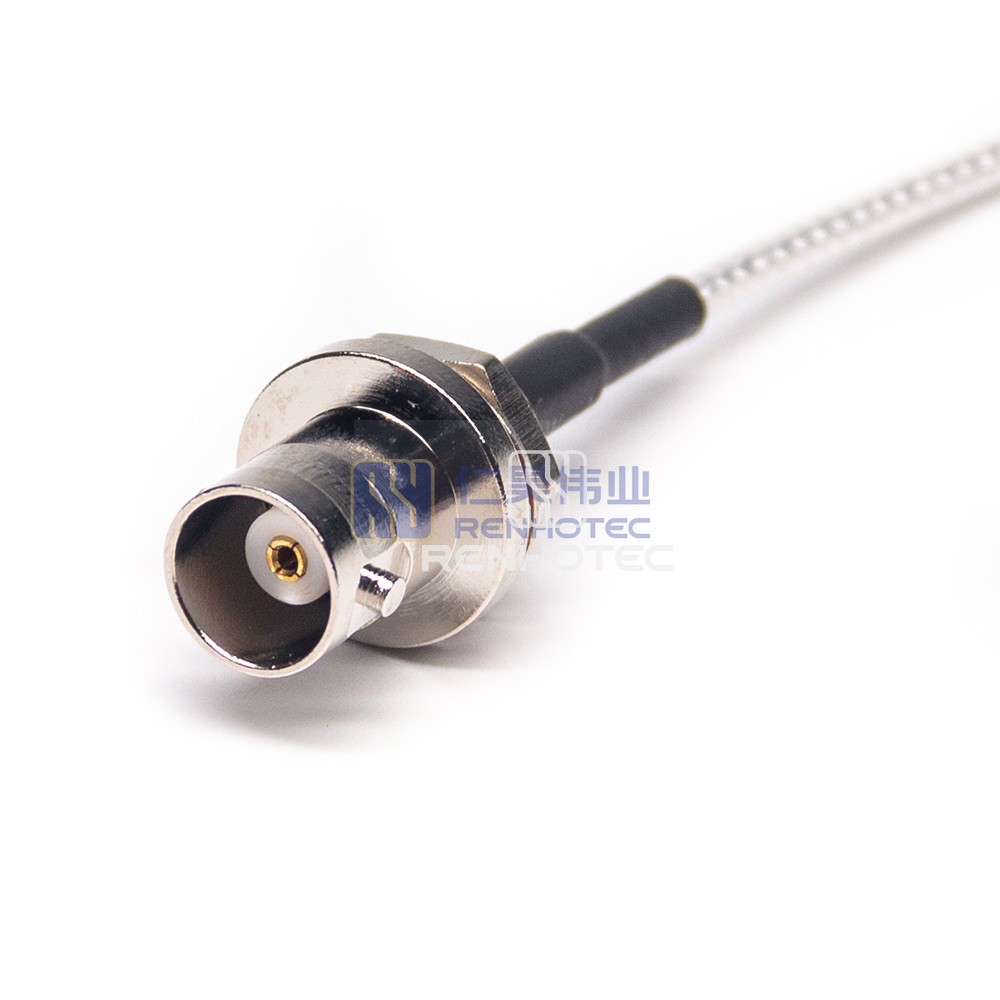

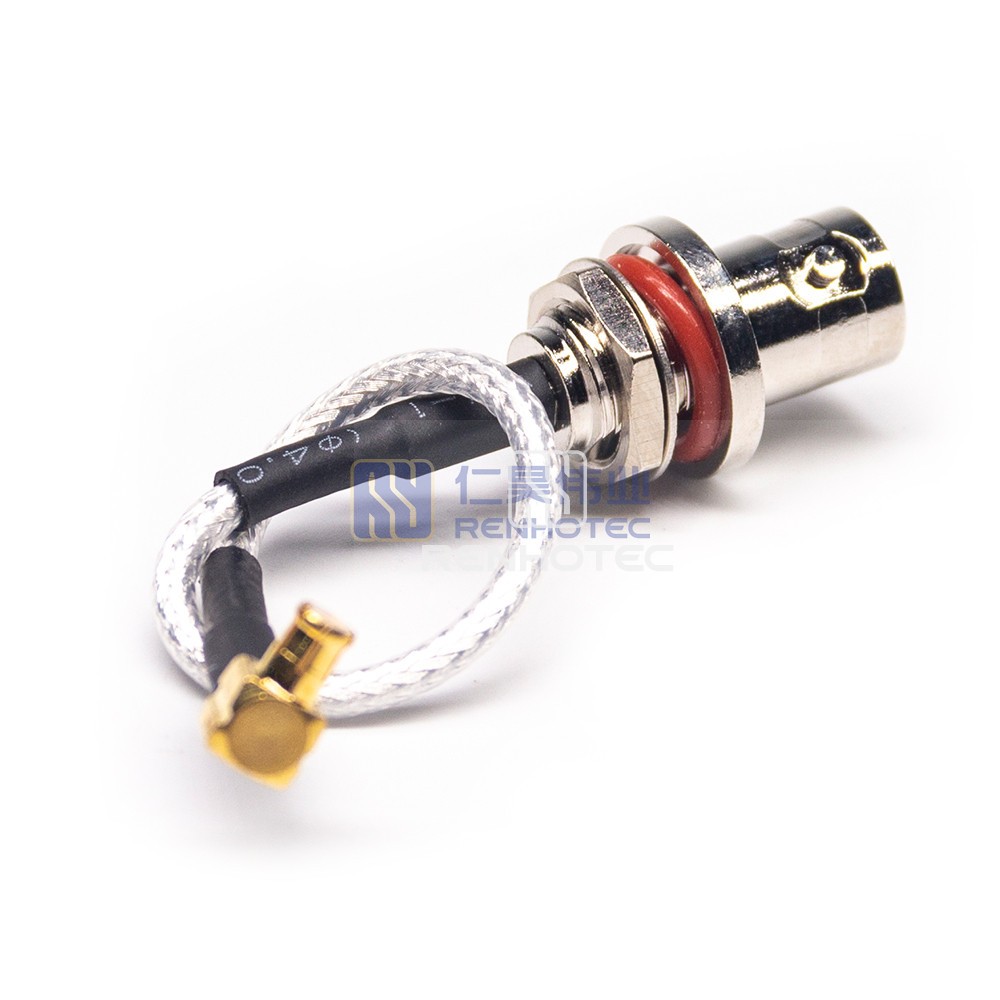

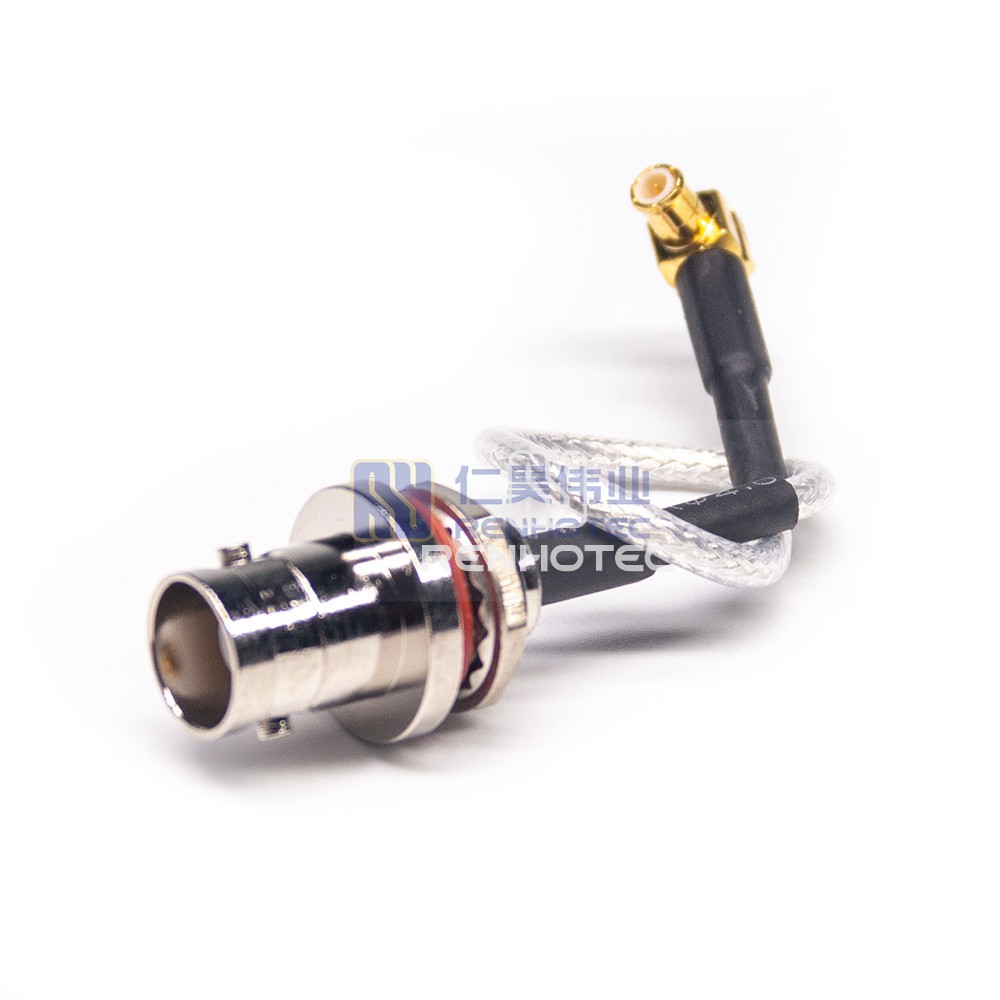

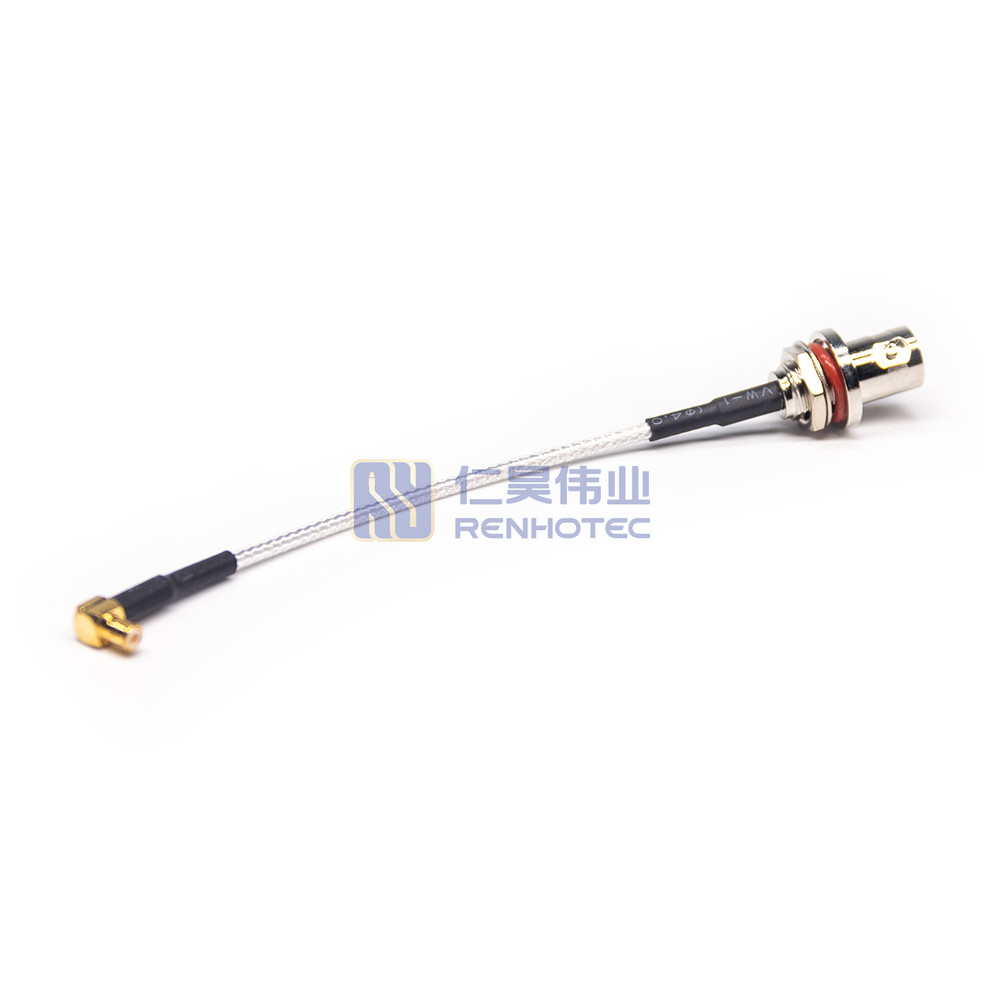

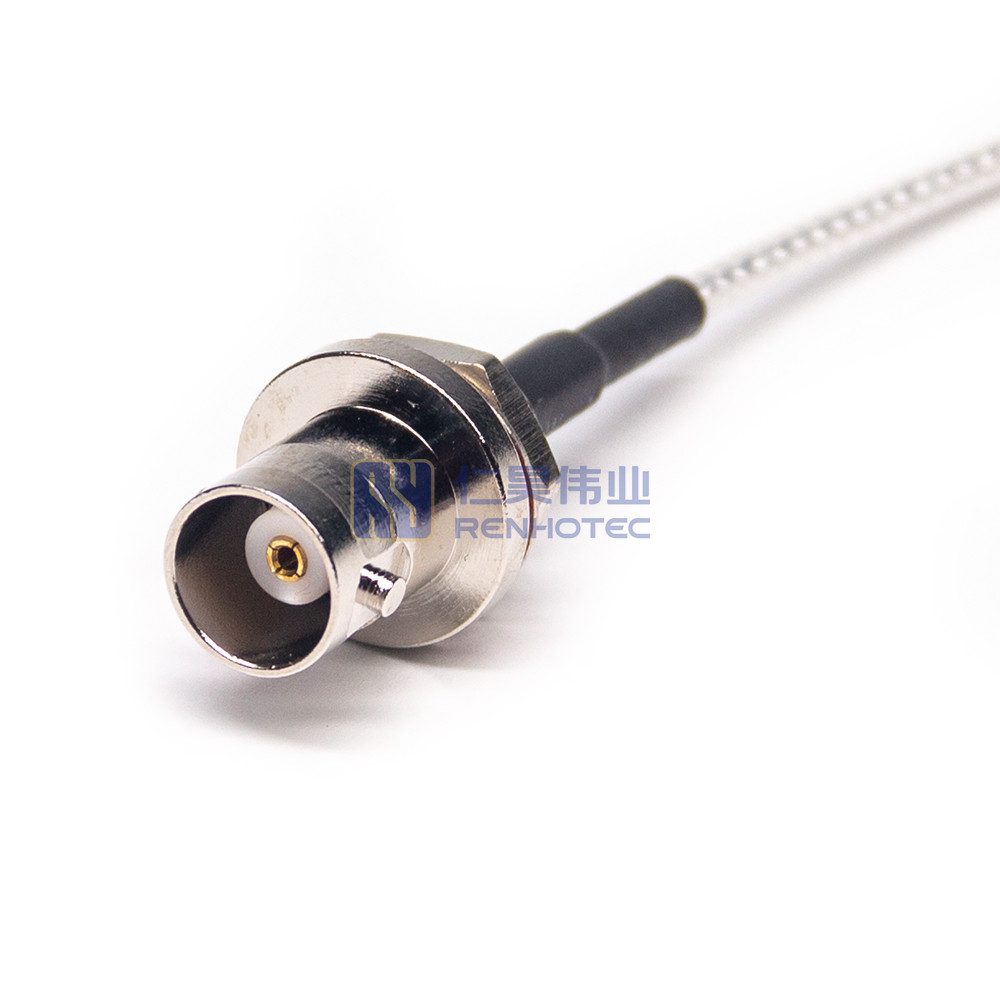

Products > RF Cable Assembly > BNC Jack Bulkhead Back Side Nut to MCX Plug Right Angle RF Cable Assembly with 50 Ohm RG316 Coax
R02-B01-10033-10
BNC Jack Bulkhead Back Side Nut to MCX Plug Right Angle RF Cable Assembly with 50 Ohm RG316 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality BNC Jack Bulkhead Back Side Nut to MCX Plug Right Angle RF Cable Assembly featuring 50 Ohm RG316 Coax. Ideal for reliable RF signal transmission.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | BNC to MCX |
| 1st Connector Series | BNC Jack |
| 1st Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | MCX Plug |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Right Angle |
| Features | Waterproof |
| Mechanical | |
|---|---|
| Suitable Cable | RG316 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
