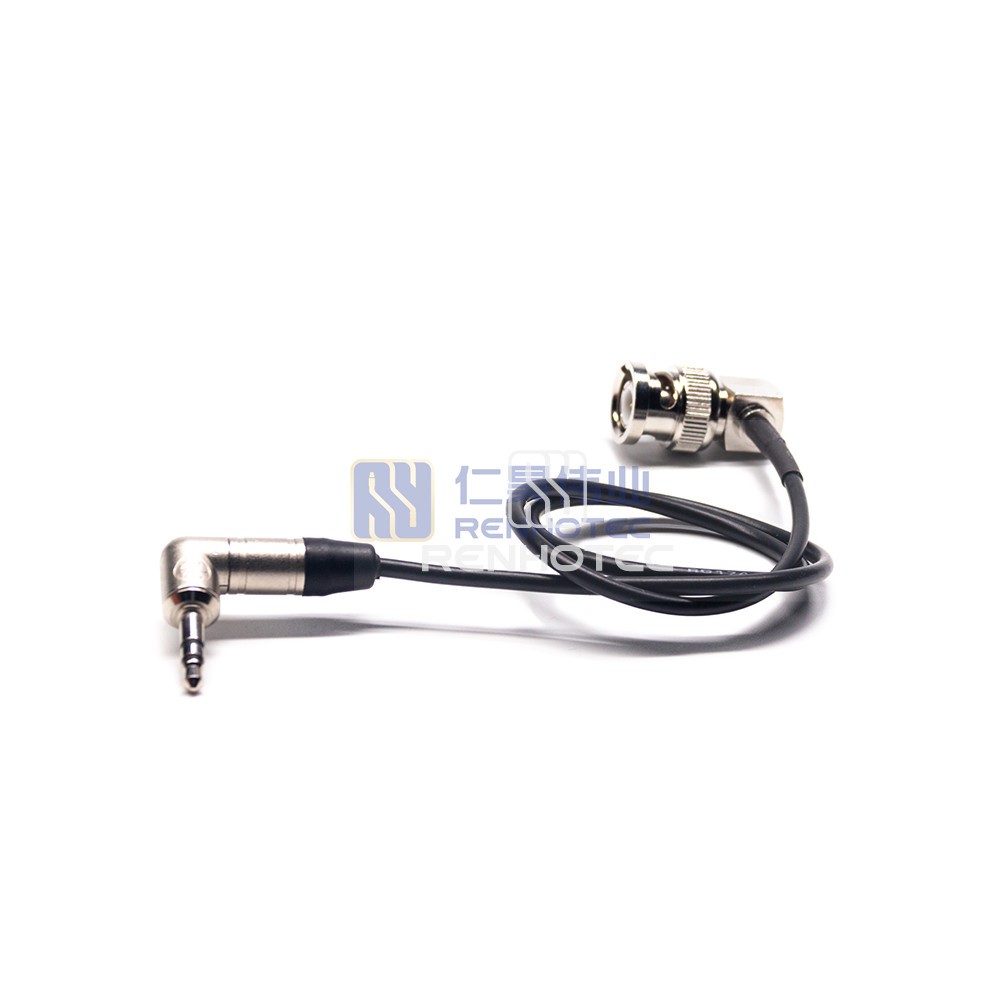

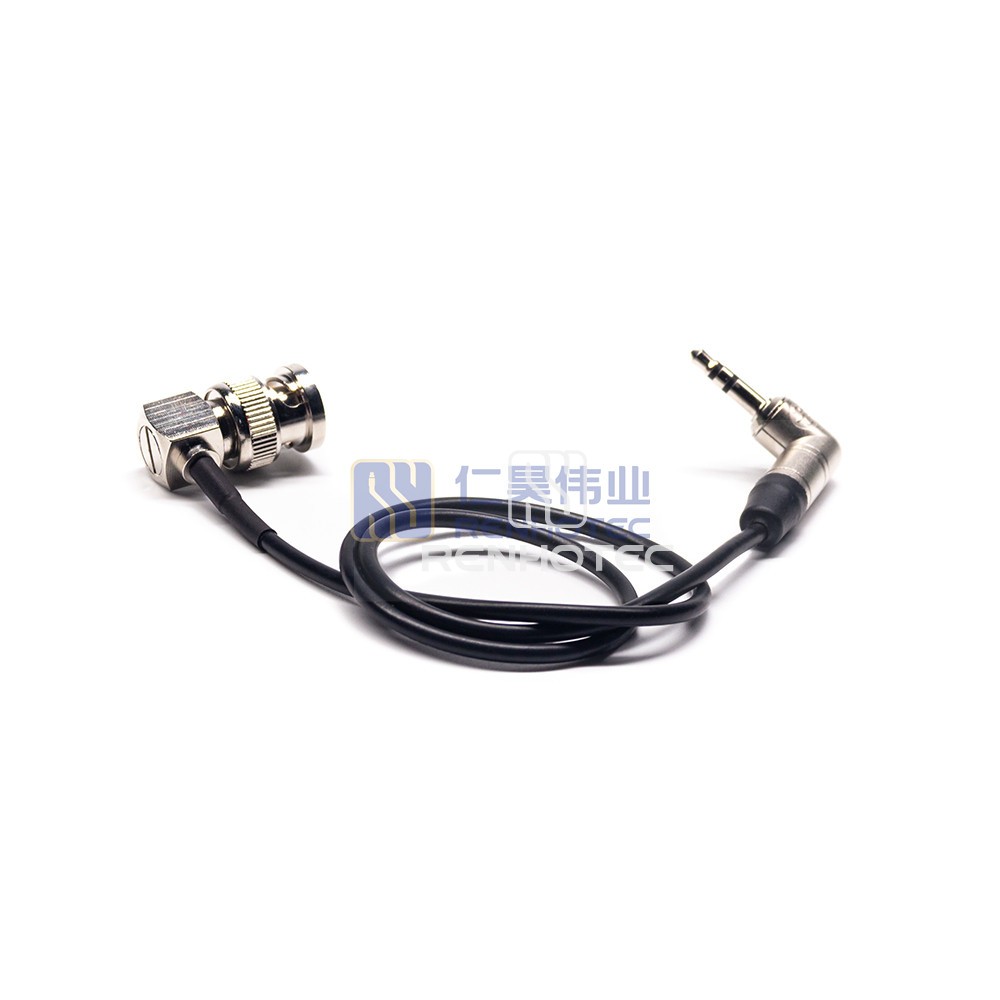

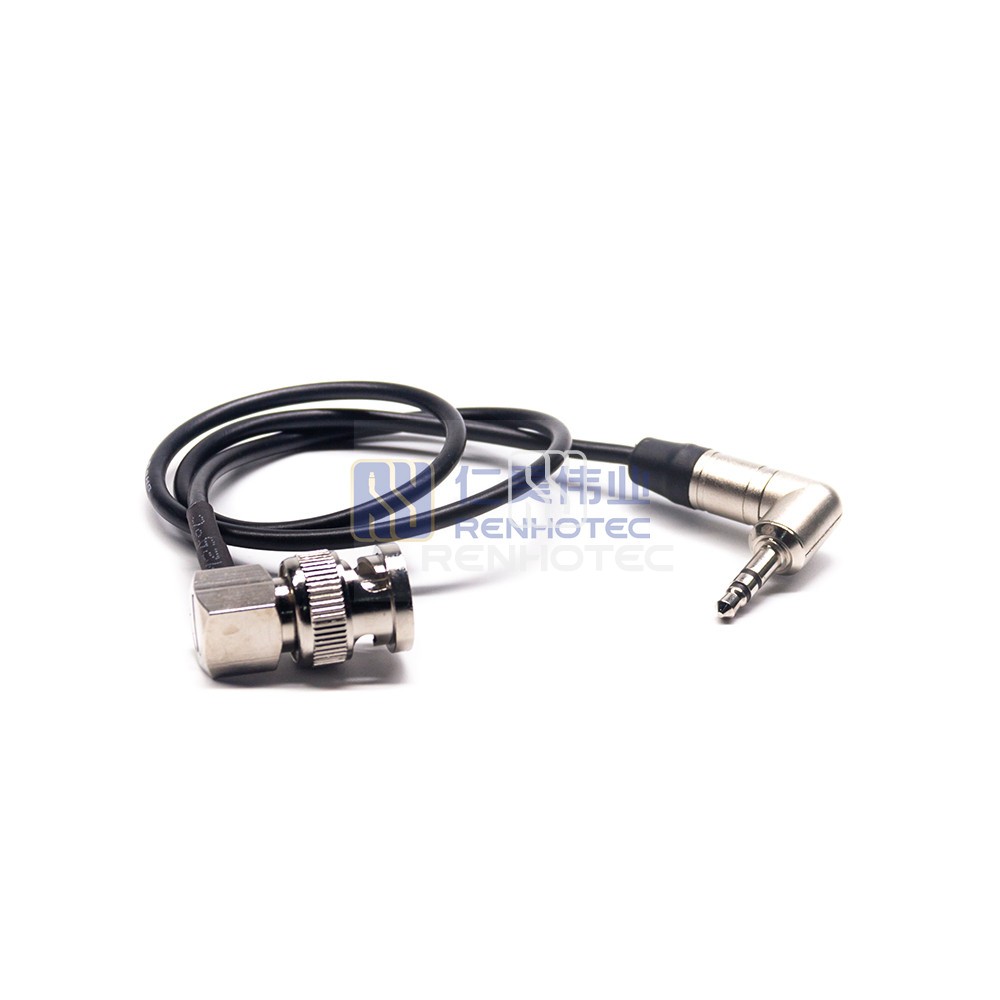

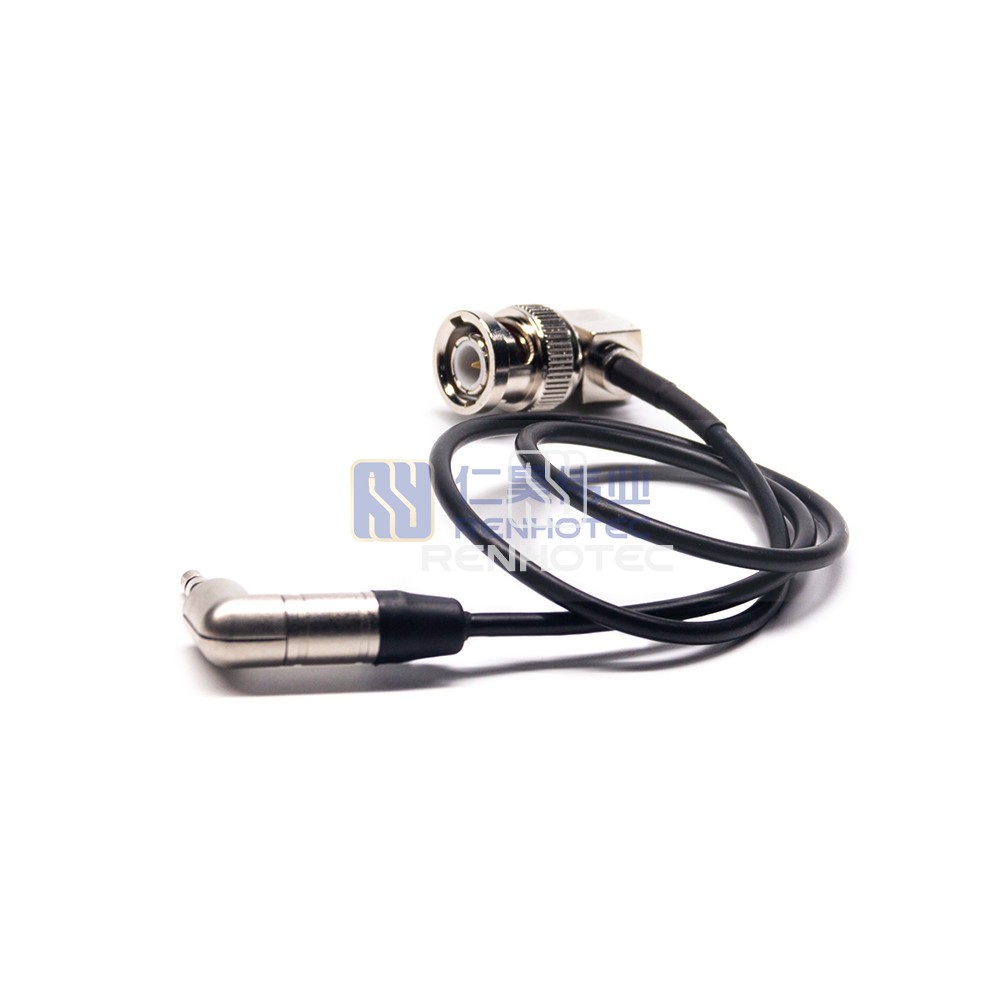

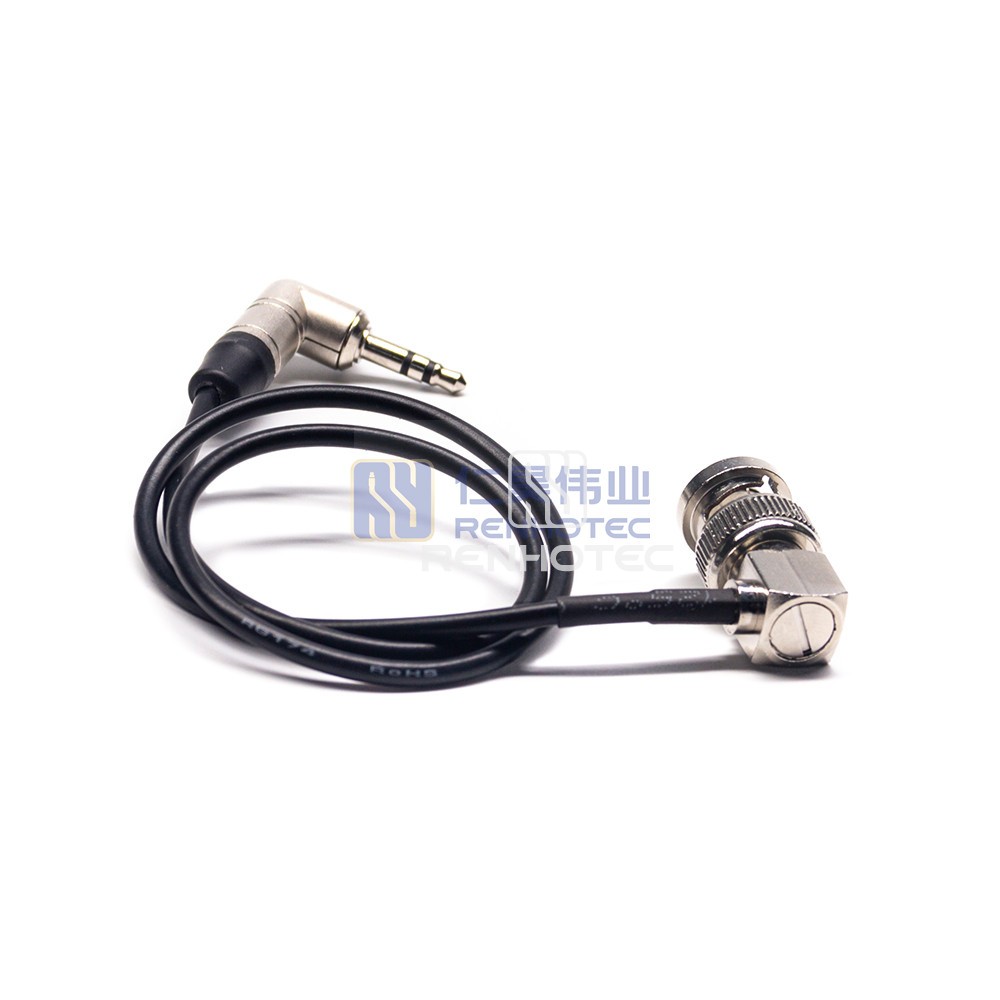

Products > RF Cable Assembly > BNC Male Righ Angle to 3.5MM Male Righ Angle Cable Assembly with 50 Ohm RG174 Coaxial Cable
R02-B01-10024-40
BNC Male Righ Angle to 3.5MM Male Righ Angle Cable Assembly with 50 Ohm RG174 Coaxial Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
Ensure seamless connectivity with this BNC Male Right Angle to 3.5mm Male Right Angle Cable Assembly, featuring 50 Ohm RG174 coaxial cable for reliable signal transmission.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | BNC to 3.5mm |
| 1st Connector Series | BNC Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Right Angle |
| 2nd Connector Series | 3.5mm Plug |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Right Angle |
| Mechanical | |
|---|---|
| Suitable Cable | RG174 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
