Products > RF Cable Assembly > BNC Male to BNC Female Flange RF Cable Assembly with 50 Ohm RG174 Coaxial Cable
R02-B01-10075-20

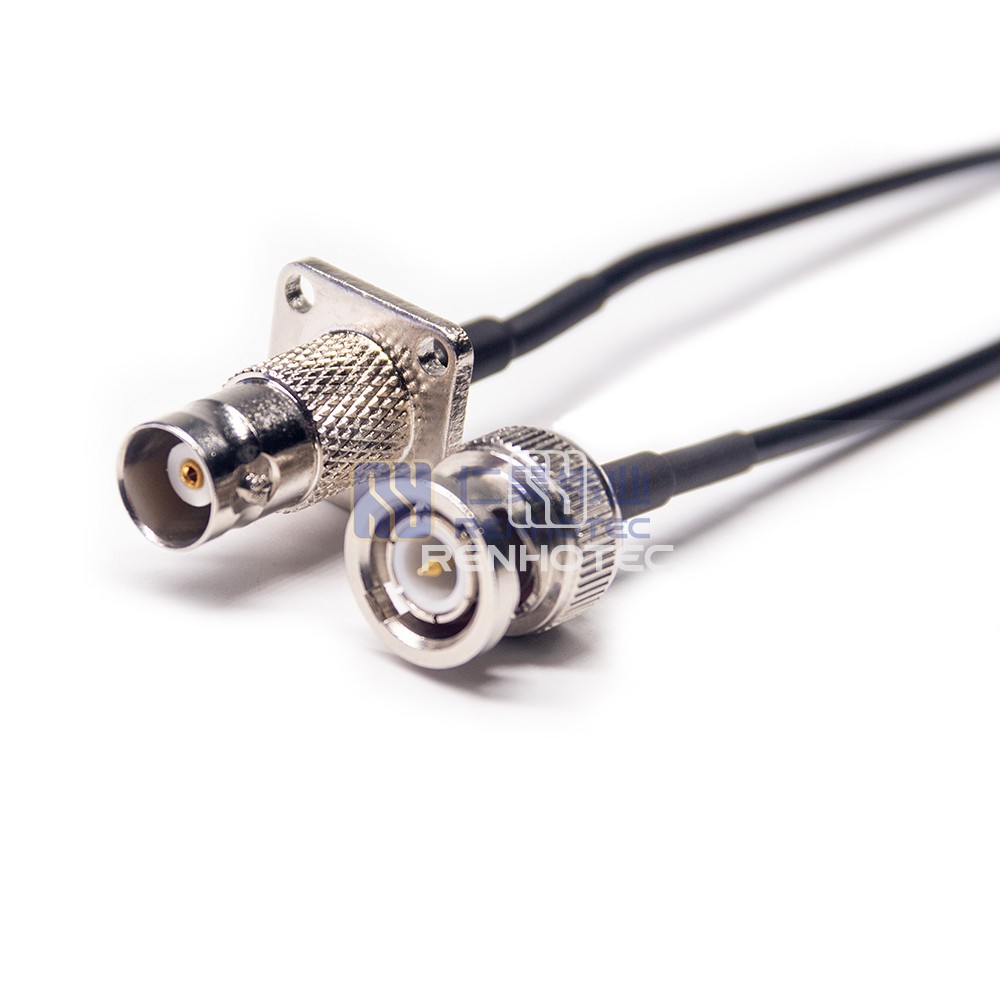

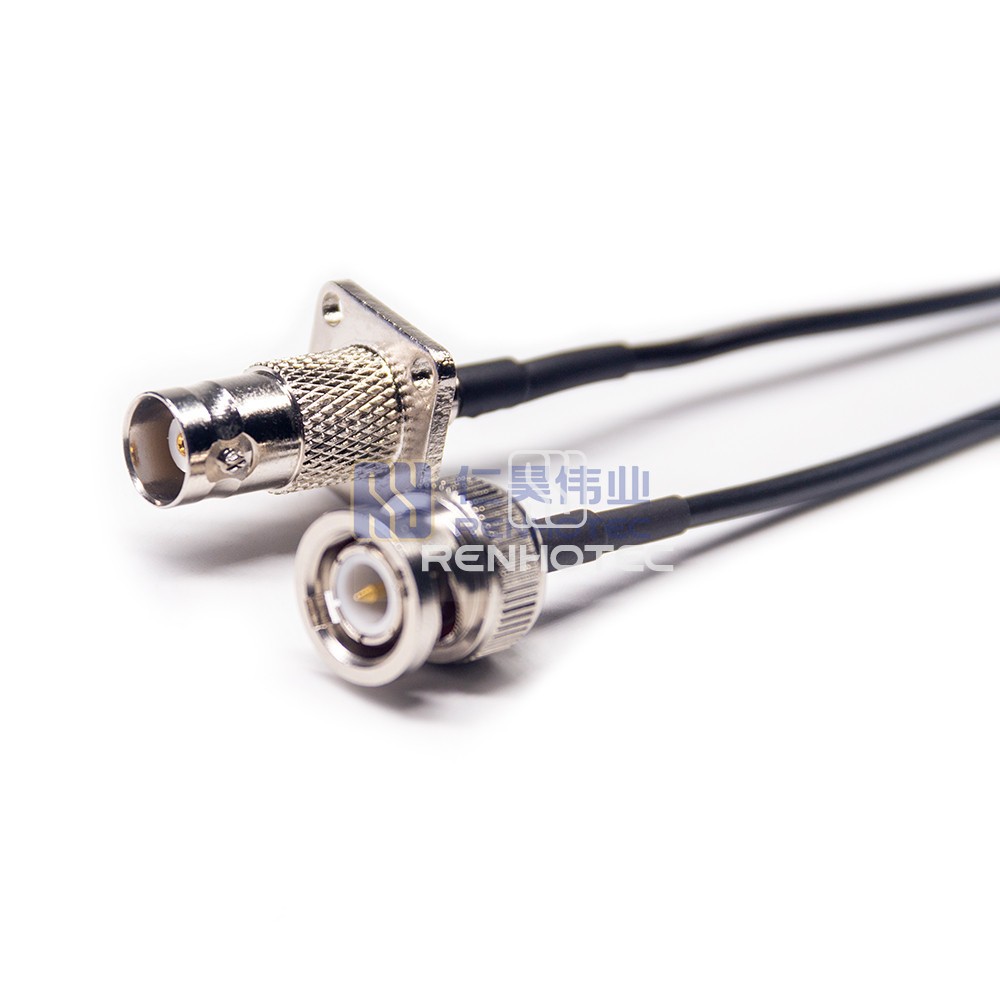

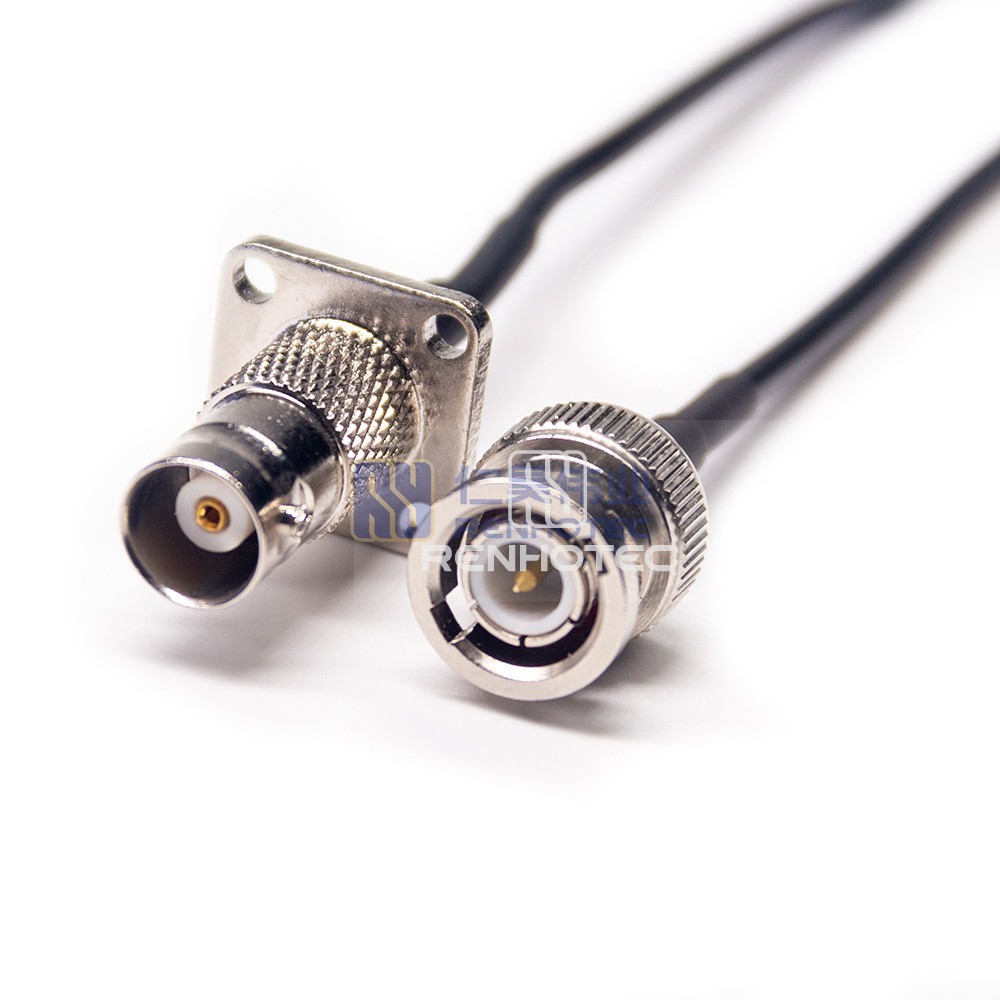

BNC Male to BNC Female Flange RF Cable Assembly with 50 Ohm RG174 Coaxial Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
Enhance your RF connectivity with our BNC Male to BNC Female Flange RF Cable Assembly. Featuring 50 Ohm RG174 coaxial cable, it ensures reliable signal transmission and durability. Perfect for professional and industrial RF applications.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | BNC to BNC |
| 1st Connector Series | BNC Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | BNC Jack |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Straight |
| Features | Flange |
| Mechanical | |
|---|---|
| Suitable Cable | RG174 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
