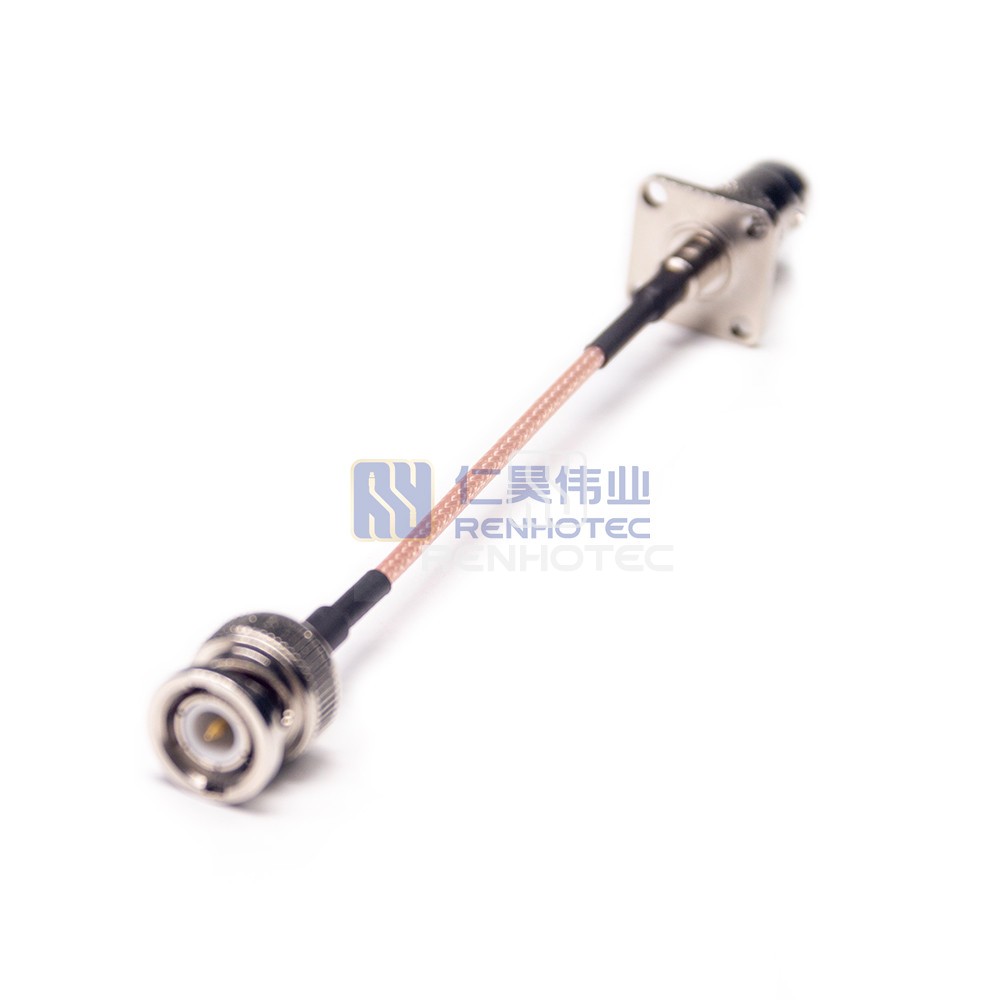

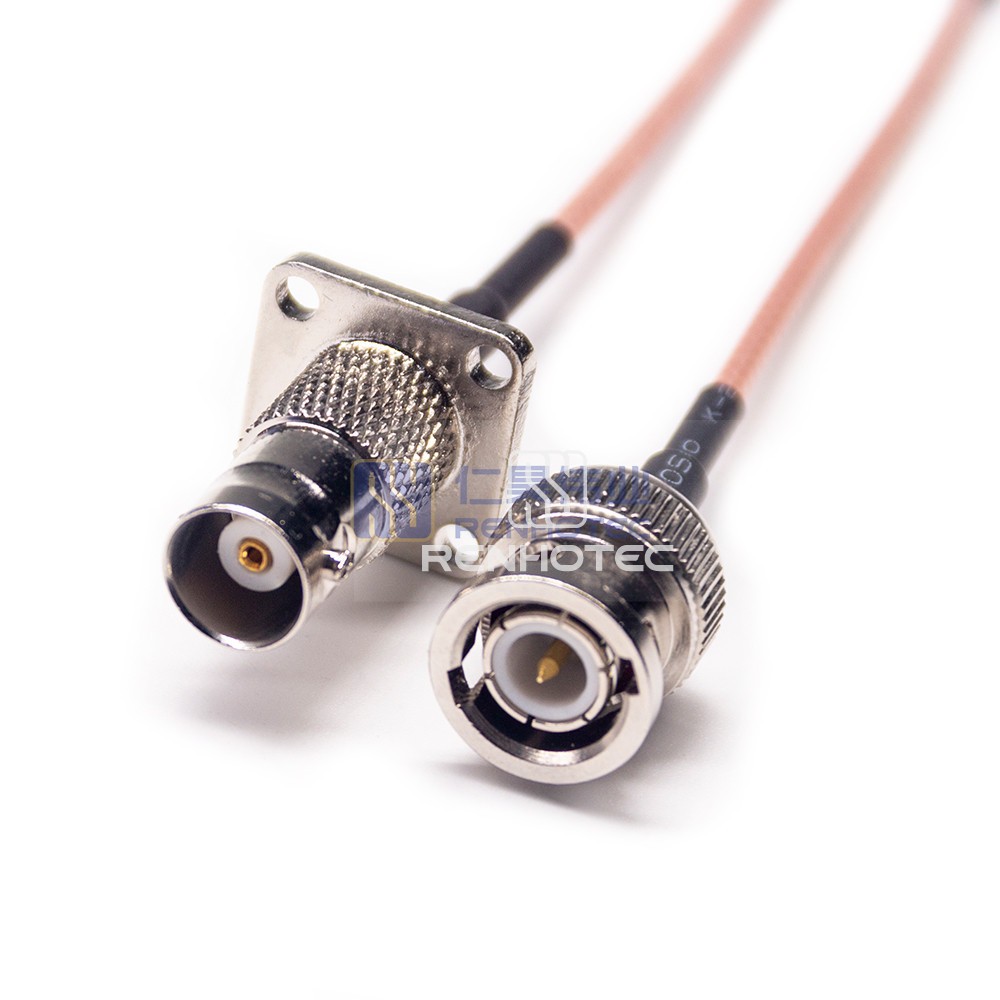

Products > RF Cable Assembly > BNC Male to BNC Female Flange RF Cable Assembly with 50 Ohm RG316 Coaxial Cable
R02-B01-10069-10
BNC Male to BNC Female Flange RF Cable Assembly with 50 Ohm RG316 Coaxial Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality BNC Male to BNC Female Flange RF Cable Assembly featuring 50 Ohm RG316 Coaxial Cable. Perfect for reliable and low-loss signal transmission.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | BNC to BNC |

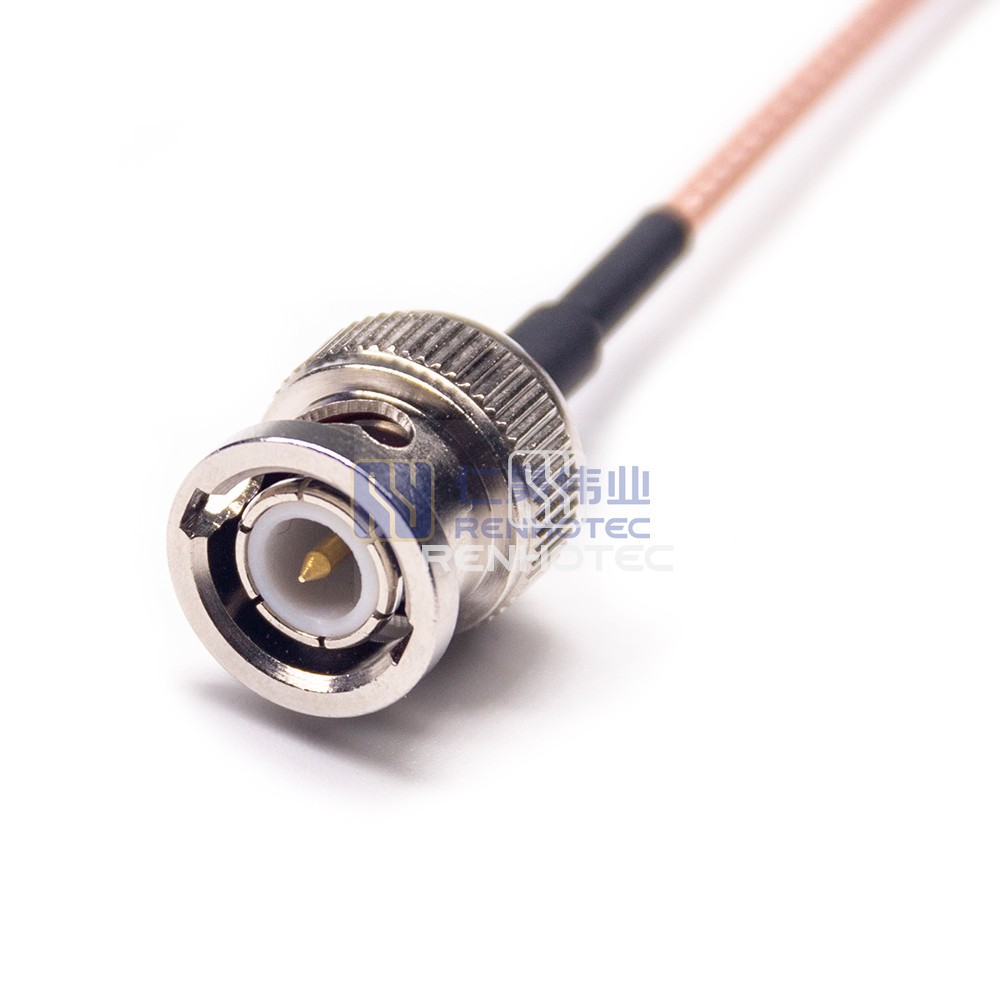

| 1st Connector Series | BNC Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Straight |

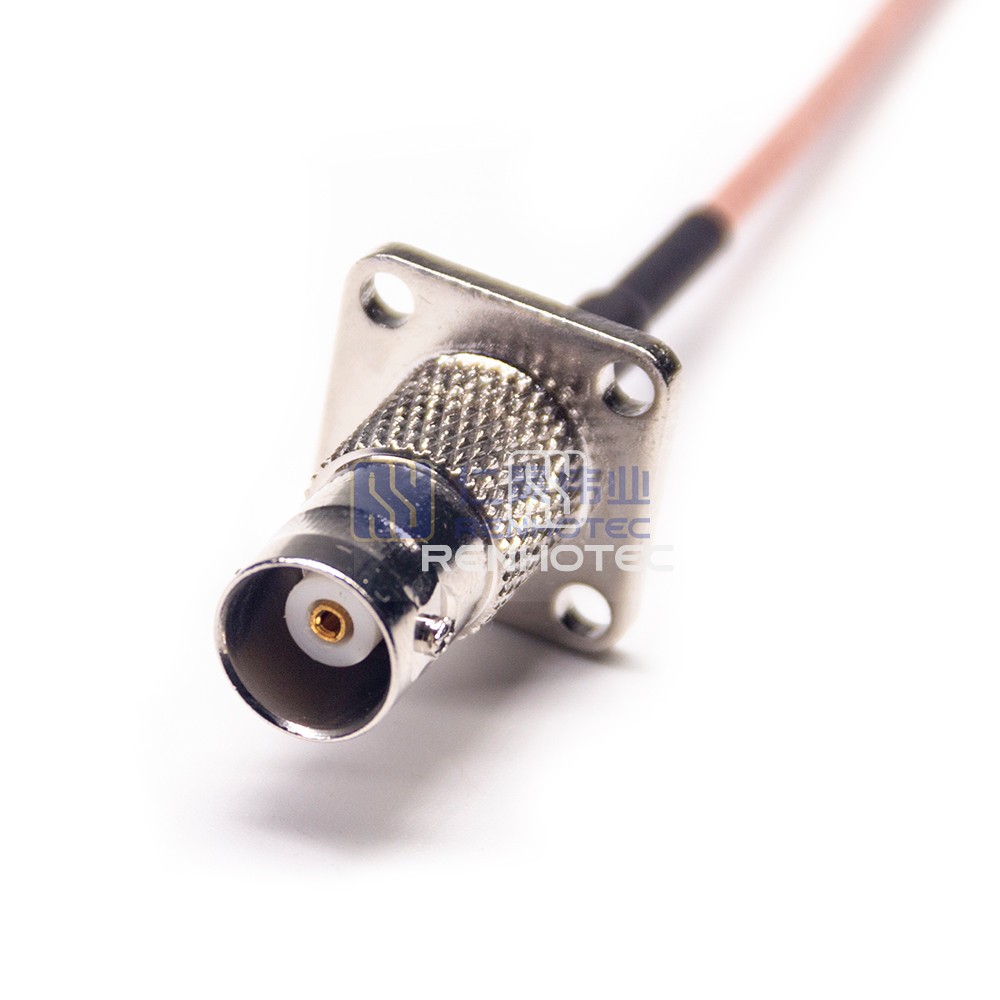

| 2nd Connector Series | BNC Jack |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Straight |
| Features | Flange |
| Mechanical | |
|---|---|
| Suitable Cable | RG316 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
