R02-B01-10012-15

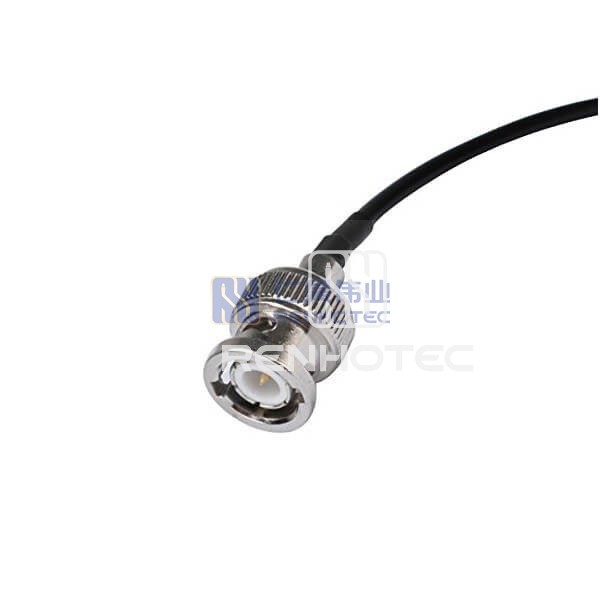

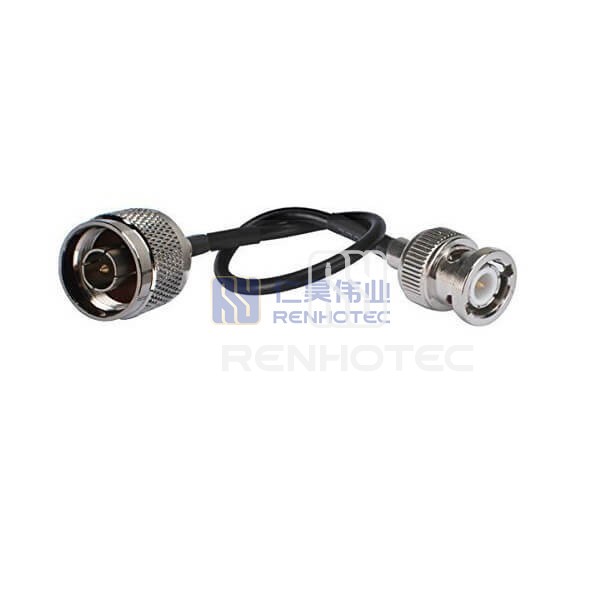

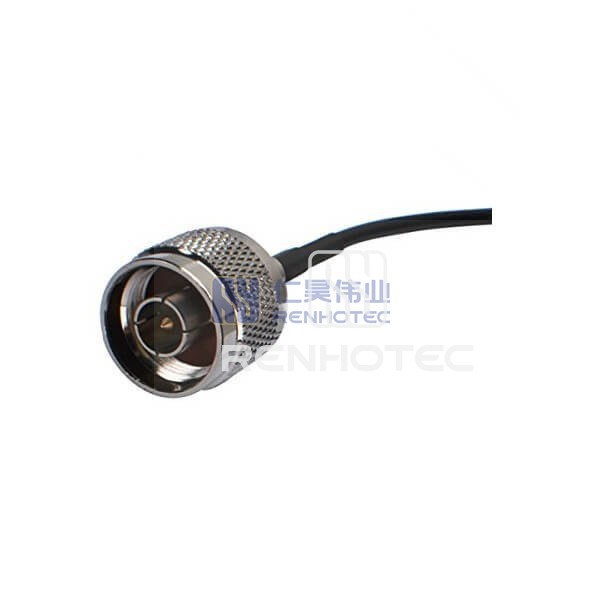

BNC Male to N Male RF Cable Assembly with 50 Ohm RG316 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
Connect BNC and N type connectors with ease using this high-quality 50 Ohm RG316 coaxial cable assembly. Perfect for RF applications requiring reliable signal transmission.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | BNC to N |
| 1st Connector Series | BNC Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | N Plug |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Straight |
| Mechanical | |
|---|---|
| Suitable Cable | RG174 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
