Products > RF Cable Assembly > BNC Male to UHF Female Bulkhead Cable Assembly with 50 Ohm RG174 Coaxial Cable
R02-B01-10099-10

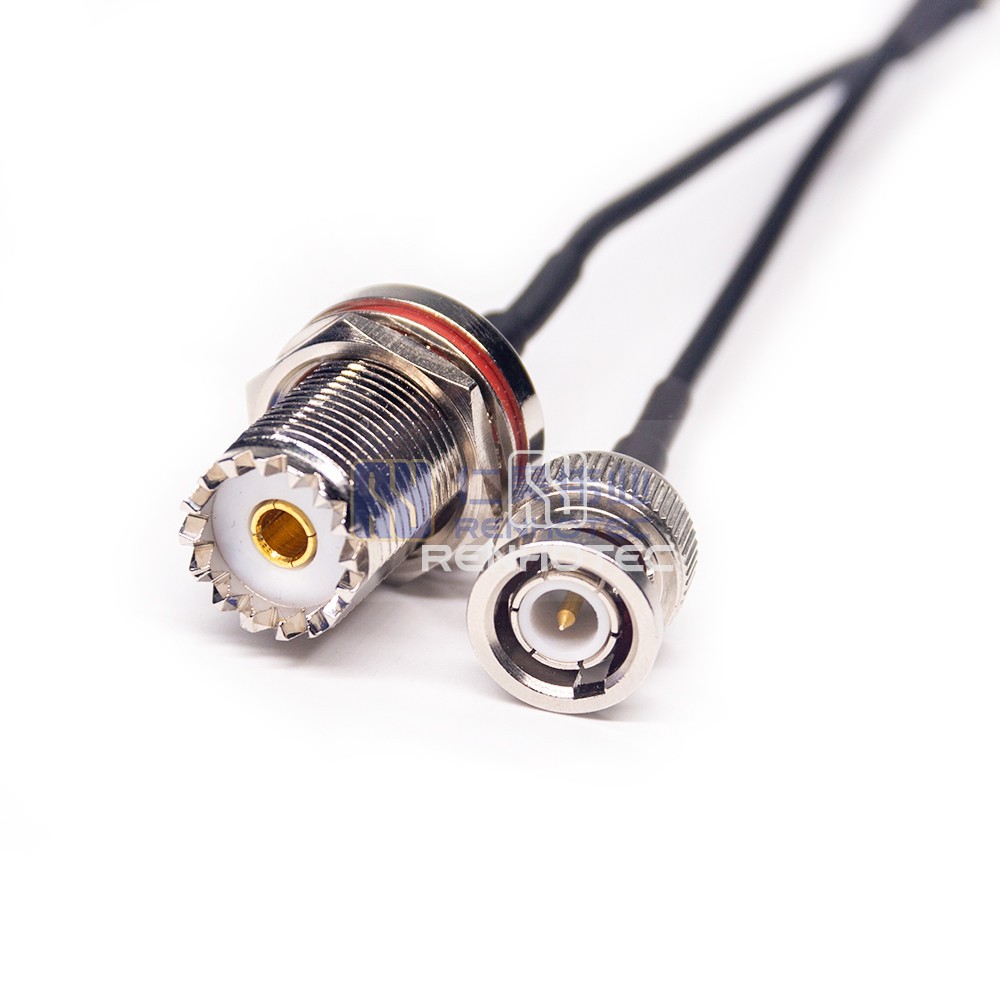

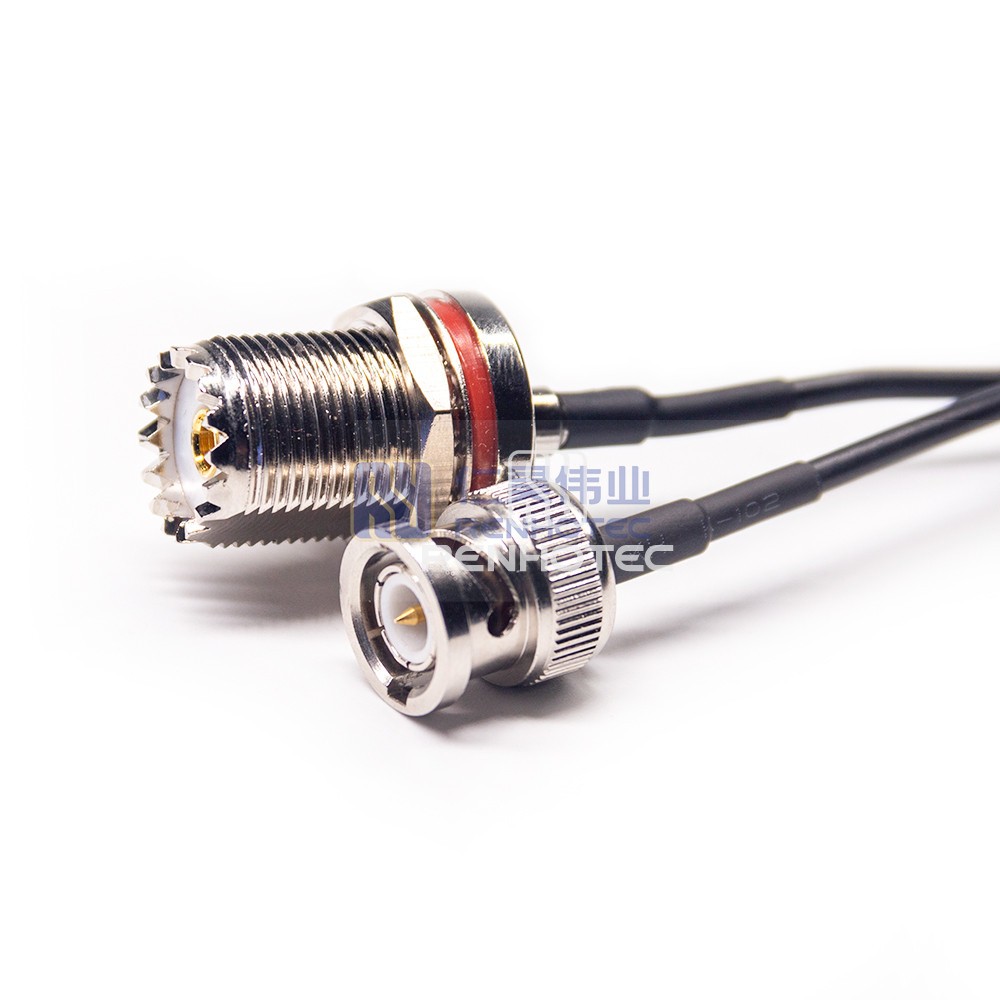

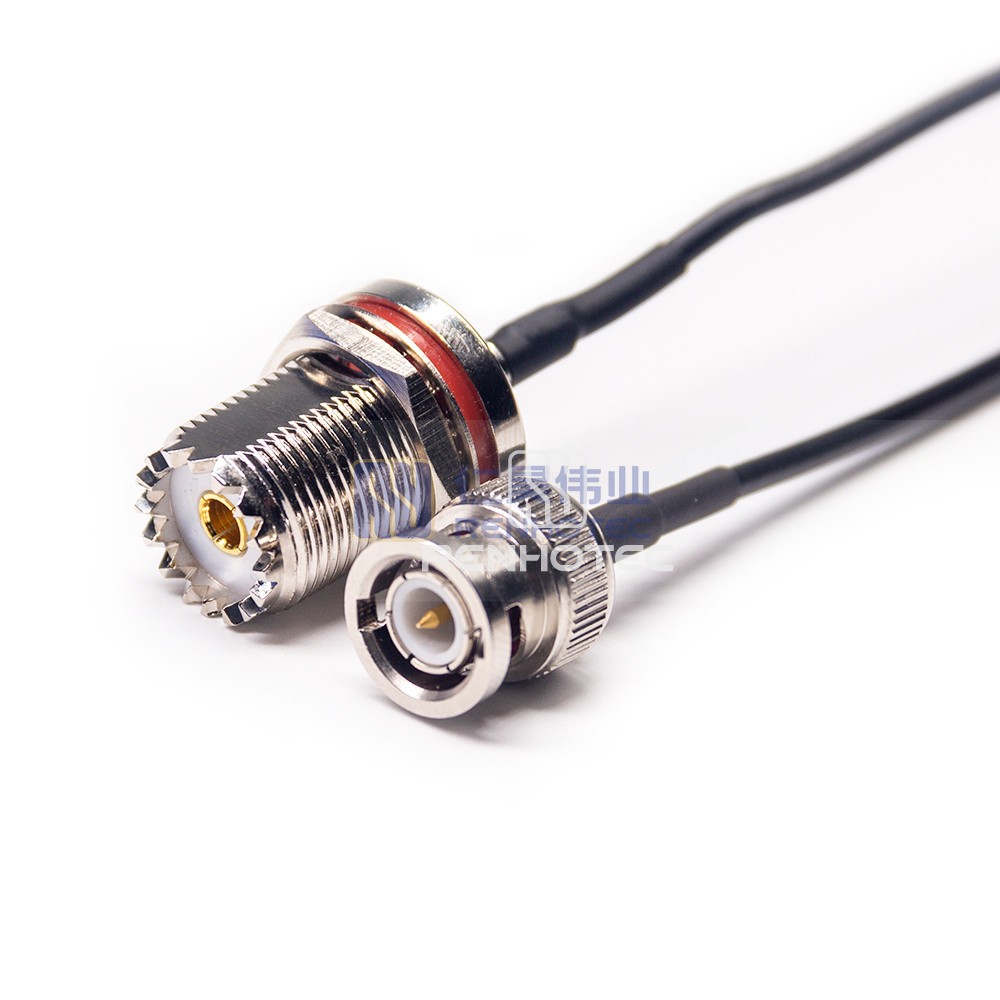

BNC Male to UHF Female Bulkhead Cable Assembly with 50 Ohm RG174 Coaxial Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
Ensure seamless connectivity with this BNC Male to UHF Female Bulkhead Cable Assembly featuring 50 Ohm RG174 Coaxial Cable. Ideal for secure and reliable connections in various RF applications.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | BNC to UHF |
| 1st Connector Series | BNC Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | UHF Jack |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Straight |
| Features | Waterproof |
| Mechanical | |
|---|---|
| Suitable Cable | RG174 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
